Shanghai Airpull Filter Ltd.

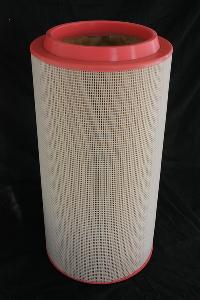

We are offering air compressor replacement. Product introduction （1）the air filter material select wood-pulp filter paper from american hv and south korean ahlstrom which can filter air dust , sand, moisture content and oil mist in the air . （2）the filter fineness is equal to or less than 10 μm . （3）the filter efficiency is 99.8%. The service life is about 2000h. （4）the working conditions affect service life seriously. filter papers folding geometry （1）the filter paper has folding geometric characters. （2）the thermoplastic filter paper can be molded easily and kept shape for long time . （3）what's more , the raised part put into filter paper as keeping space function is helpfull to improve the service life under vibration conditions caused by air compressor motor and main engine movement. （4）you can gain maxium filtration area under folding line . here are some notes: （1）according to use condition blows filter element regularly; （2）filter element's fixed input air capacity must more than main engine's; （3）selects filter element should have lower intake resistance , more dust capacity; （4） put filter at dry , ventilative position.

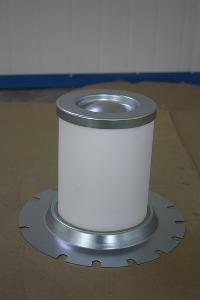

We are offering air compressor replacement. Drop pressure improve efficiency and performance (1)in nominal working pressure, when initial pressure during 0.7mpa-1.0mpa, oil seperator's initial pressure difference can be controled between 0.15bar-0.25bar. （2）compressed air oil content can be controled between 3-6ppm. （3）compressed air oil mist grain can be controled 0.1μm below. filter material selection and production process （1）the filter element select superfine glass fiber from usa hv and lydall corporation. （2）fine welding , spot welding and the newest research and devlopment double component adhesive ensure that oil seperator have higher mechanical strength and can work under 120°c high temperature . （3）fog shape oil-air mixture of compressed air can be filtered completely. service life （1）the service life is about 3500h-5200h , （2）the life length is decided by factors:oil seperator tank's design, routine maintenance, environment cleanliness, quality of oil, operating temperature and quality of oil seperator. here are some notes : （1）according to performance of air compressor and oil separator tank's size choose oil seperator filter element; （2）oil seperator tank should set position of oil , which setting 1/2-2/3 position at looking glass; （3）secondary return pipe and holding valve should be kept open and the exhaust pressure should be adjusted to the specified data; （4）insure operating temperature and pressure maintenance valve of air compressor working normally, under specified data. （5）the oil seperator is suitable for all type ordinary oil, mineral oil, synthetic oil and half synthetic.

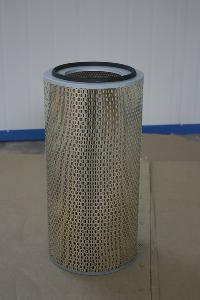

We are offering atlas air compressor replacement. Product introduction （1）the air filter material select wood-pulp filter paper from american hv and south korean ahlstrom which can filter air dust , sand, moisture content and oil mist in the air . （2）the filter fineness is equal to or less than 10 μm . （3）the filter efficiency is 99.8%. The service life is about 2000h. （4）the working conditions affect service life seriously. filter papers folding geometry （1）the filter paper has folding geometric characters. （2）the thermoplastic filter paper can be molded easily and kept shape for long time . （3）what's more , the raised part put into filter paper as keeping space function is helpfull to improve the service life under vibration conditions caused by air compressor motor and main engine movement. （4）you can gain maxium filtration area under folding line . here are some notes: （1）according to use condition blows filter element regularly; （2）filter element's fixed input air capacity must more than main engine's; （3）selects filter element should have lower intake resistance , more dust capacity; （4） put filter at dry , ventilative position.

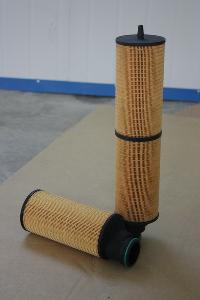

We are offering atlas air compressor replacement. Product introduction (1)the material select superfine glass-fiber compound filter material of american hv, or wood-pulp filter paper from south korean ahlstrom corporation. (2)the filter fineness is 10-15μm. (3)the service life is about 2000h. (4)the oil and the working conditions affect service life seriously. here some notes for maintenance: (1)daub oil on gland bush when installed ; (2)insure the quality of oil.

We are offering air compressor replacement. Product introduction (1)the material select superfine glass-fiber compound filter material of american hv, or wood-pulp filter paper from south korean ahlstrom corporation. (2)the filter fineness is 10-15μm. (3)the service life is about 2000h. (4)the oil and the working conditions affect service life seriously. here some notes for maintenance: (1)daub oil on gland bush when installed ; (2)insure the quality of oil.

We are offering air compressor. Drop pressure improve efficiency and performance (1)in nominal working pressure, when initial pressure during 0.7mpa-1.0mpa, oil seperator's initial pressure difference can be controled between 0.15bar-0.25bar. （2）compressed air oil content can be controled between 3-6ppm. （3）compressed air oil mist grain can be controled 0.1μm below. filter material selection and production process （1）the filter element select superfine glass fiber from usa hv and lydall corporation. （2）fine welding , spot welding and the newest research and devlopment double component adhesive ensure that oil seperator have higher mechanical strength and can work under 120°c high temperature . （3）fog shape oil-air mixture of compressed air can be filtered completely. service life （1）the service life is about 3500h-5200h , （2）the life length is decided by factors:oil seperator tank's design, routine maintenance, environment cleanliness, quality of oil, operating temperature and quality of oil seperator. here are some notes : （1）according to performance of air compressor and oil separator tank's size choose oil seperator filter element; （2）oil seperator tank should set position of oil , which setting 1/2-2/3 position at looking glass; （3）secondary return pipe and holding valve should be kept open and the exhaust pressure should be adjusted to the specified data; （4）insure operating temperature and pressure maintenance valve of air compressor working normally, under specified data. （5）the oil seperator is suitable for all type ordinary oil, mineral oil, synthetic oil and half synthetic

We are offering sullair air compressor replacement. Drop pressure improve efficiency and performance (1)in nominal working pressure, when initial pressure during 0.7mpa-1.0mpa, oil seperator's initial pressure difference can be controled between 0.15bar-0.25bar. （2）compressed air oil content can be controled between 3-6ppm. （3）compressed air oil mist grain can be controled 0.1μm below. filter material selection and production process （1）the filter element select superfine glass fiber from usa hv and lydall corporation. （2）fine welding , spot welding and the newest research and devlopment double component adhesive ensure that oil seperator have higher mechanical strength and can work under 120°c high temperature . （3）fog shape oil-air mixture of compressed air can be filtered completely. service life （1）the service life is about 3500h-5200h , （2）the life length is decided by factors:oil seperator tank's design, routine maintenance, environment cleanliness, quality of oil, operating temperature and quality of oil seperator. here are some notes : （1）according to performance of air compressor and oil separator tank's size choose oil seperator filter element; （2）oil seperator tank should set position of oil , which setting 1/2-2/3 position at looking glass; （3）secondary return pipe and holding valve should be kept open and the exhaust pressure should be adjusted to the specified data; （4）insure operating temperature and pressure maintenance valve of air compressor working normally, under specified data. （5）the oil seperator is suitable for all type ordinary oil, mineral oil, synthetic oil and half synthetic.

We are offering sullair air compressor replacement. Product introduction （1）the air filter material select wood-pulp filter paper from american hv and south korean ahlstrom which can filter air dust , sand, moisture content and oil mist in the air . （2）the filter fineness is equal to or less than 10 μm . （3）the filter efficiency is 99.8%. The service life is about 2000h. （4）the working conditions affect service life seriously. filter papers folding geometry （1）the filter paper has folding geometric characters. （2）the thermoplastic filter paper can be molded easily and kept shape for long time . （3）what's more , the raised part put into filter paper as keeping space function is helpfull to improve the service life under vibration conditions caused by air compressor motor and main engine movement. （4）you can gain maxium filtration area under folding line . here are some notes: （1）according to use condition blows filter element regularly; （2）filter element's fixed input air capacity must more than main engine's; （3）selects filter element should have lower intake resistance , more dust capacity; （4） put filter at dry , ventilative position.
