Shanghai Fibretool Technology Co. Ltd

• MOQ 1 Set(s)

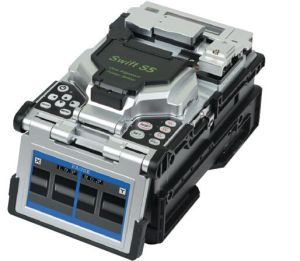

we are offering new swift s5 fiber optical fusion splicer. the swift s5’s simple and user-friendly design enables users to splice quickly and conveniently throughout the 5 processes; stripping, cleaning, cleaving, splicing & sleeving. (allinone) one more thing, swift s5’s thermal automatic stripper leaves no scratches while a manual stripper scratches on fiber very much. swift s5 is a way on future splicers. specifications category description fiber alignment ipaas core to core alignment(image pattern analysis alignment system) applicable type of fibers sm(itu-t g.652), mm(itu-t g.651), ds(itu-t g.653), nzds(itu-t g.655) gi edfa, ei980, splicing available with different type fiber(smmm) fiber count single fiber applicable fiber dimensions cladding diameter: 80 - 150um, coating diameter: 100 -1000um fiber setting and cleaved length 250um : 8~16mm, 900um : 16mm(application holder: 8mm) splicing modes splice mode: 100, heat mode: 50 typical splice loss smf: 0.02db, mmf: 0.01db, dsf: 0.04db, nzdsf: 0.04db return loss > 60db splicing time typical 9sec

• MOQ 2 Piece(s)

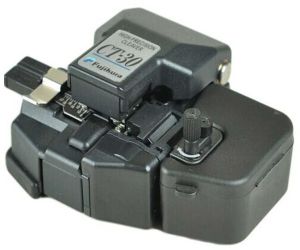

We are offering fujikura high precision cleaver ct-30a product name fujikura high precision cleaver ct-30a model no ct-30a cleaved angle 0.5 blade life 48000 times rotatable position 16 bare diameter 125 um feature: 1. Light weight 2.more long life blade 3. Ribbon cutting 24 core fiber

• MOQ 5 Piece(s)

We are offering fiber optic mid span access tool . - fiber optic cable jacket slitter is an efficient and indispensable tool for fiber optic cable termination - it easily slits the pvc cable jacket into two haves before crimping, in both field and plant applications, time is saved and consistency is resulted with this precise and innovative tool - tool size(mm):50×40×20; weight: 35g - cable can be processed: a.(ø1.5~ø1.9mm); b.(ø2.0~ø2.4mm); c.(ø2.5~ø2.9mm); d.(ø3.0~ø3.3mm). Step by step instructions: 1. Choose appropriate groove according to the diameter of the cable to be slit 2. Put the cable into the groove, pay attention to the blade's position on the cable with the length to be slit in mind 3. Close the slitter and hold it firmly with one hand, then pull the cable out with the other hand 4. Check the processed segment of the cable, there should be two rips on the jacket which completely separate the jacket into two halves

• MOQ 10 Piece(s)

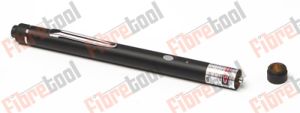

We are offering vfl-250 visual fault locator. Vfl-250 is used for locating broken point in fibers vfl-250 is equipped with a 650 nm visible laser diode, can be operated in continuous or pulse modes for clear noticeable results one green led indicator shows the operating mode power switch on the end for battery onoff pusg button operate cwmod (2.5hz frequency)pause clip pocket-size pen design;1.25mm adapter optional vfl-250 , 650nm, 5mw, detection distance

• MOQ 1 Set(s)

We are offering fiber optic tool kits, customized tool kit available.

• MOQ 1 Set(s)

We are offering fujikura 70s single fiber fusion splicer. 1. New fully-digitalized design 2. Automated and programmable wind protector 3. 8 seconds splicing and 25 seconds heat-shrinking 4. Long electrode lifetime, upto 4000 times 5. Bulit-in high capacity battery, 220 times splicing and heating can be accomplished easily 6. Fully ruggedized for shock, dust and moisture 7. Sheath clamp or fiber holder operation 8. Internet software upgrades 9. On-board training and support videos 10. Multi-function transit case with integrated workstation

• MOQ 1 Piece(s)

We are offering miller acs armored cable slitter. Professional grade tool, ideal for slitting the corrugated copper, steel or aluminum armor layer on fiber feeder, central tube, stranded loose tube fiber optic cables and other armored cables versatile design allows jacket or shield slitting on non-fiber optic configurations as well tool slits outer polyethylene jacket and armor in one operation.. – performs longitudinal slitting and circumferential (ringing) for end stripping – blade rotates 90 degrees by activating blade lever, allowing easy mid-span preparation (ringing and slitting) adjustable from 0.315” (8 mm) to 1.125” (28.6 mm) cable o.d. Adjustable blade depths to accommodate different cable coverings “roller” style cable follower provides cable stability and allows for easier tool movement along the cable rugged anodized aluminum and steel construction replacement blade: cb 251-k u.s patent no: 505, 056 s length: 3.9 in (99.99 mm) weight: 9.94 ounces (284.0g) replacement parts: cb 251-k
