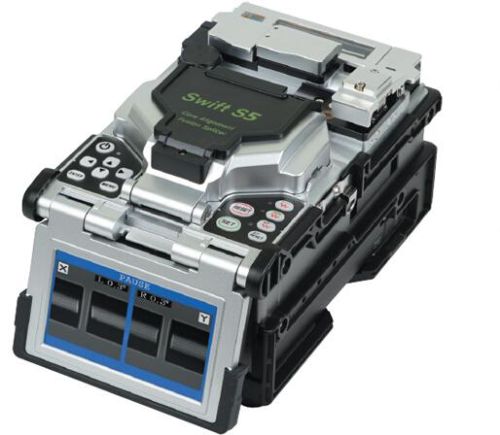

New Swift Fiber Optical Fusion Splicer

we are offering new swift s5 fiber optical fusion splicer. the swift s5’s simple and user-friendly design enables users to splice quickly and conveniently throughout the 5 processes; stripping, cleaning, cleaving, splicing & sleeving. (allinone) one more thing, swift s5’s thermal automatic stripper leaves no scratches while a manual stripper scratches on fiber very much.
swift s5 is a way on future splicers.
specifications
category description
fiber alignment ipaas core to core alignment(image pattern analysis alignment system)
applicable type of fibers
sm(itu-t g.652), mm(itu-t g.651), ds(itu-t g.653), nzds(itu-t g.655)
gi edfa, ei980, splicing available with different type fiber(smmm)
fiber count single fiber
applicable fiber dimensions cladding diameter: 80 - 150um, coating diameter: 100 -1000um
fiber setting and cleaved length
250um : 8~16mm, 900um : 16mm(application holder: 8mm)
splicing modes splice mode: 100, heat mode: 50
typical splice loss smf: 0.02db, mmf: 0.01db, dsf: 0.04db, nzdsf: 0.04db
return loss > 60db
splicing time typical 9sec
