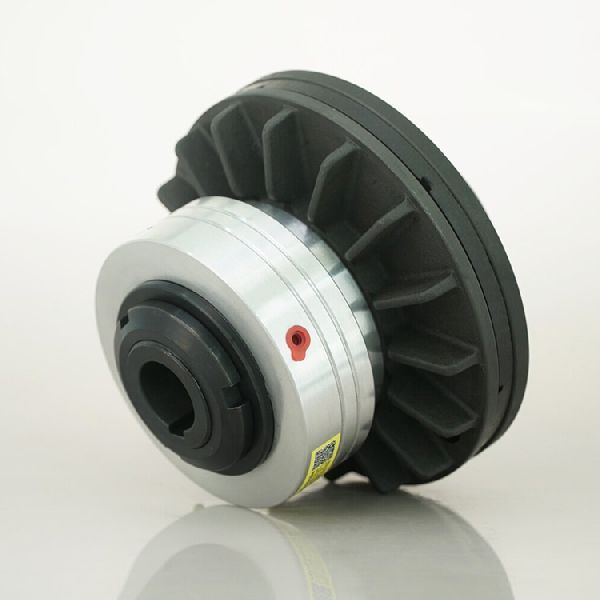

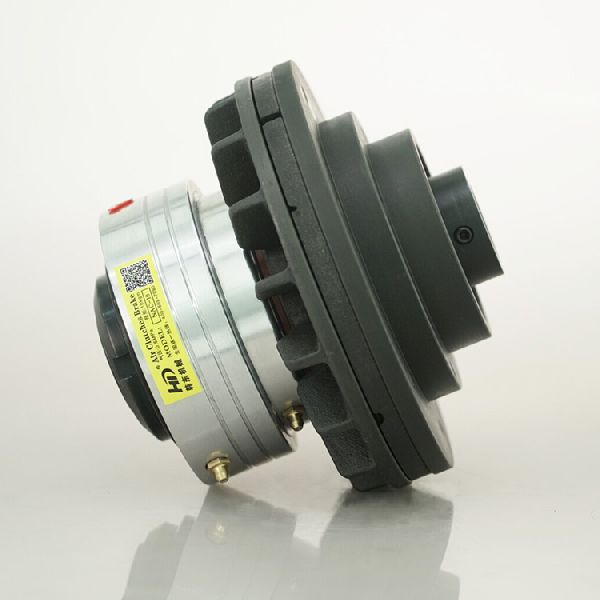

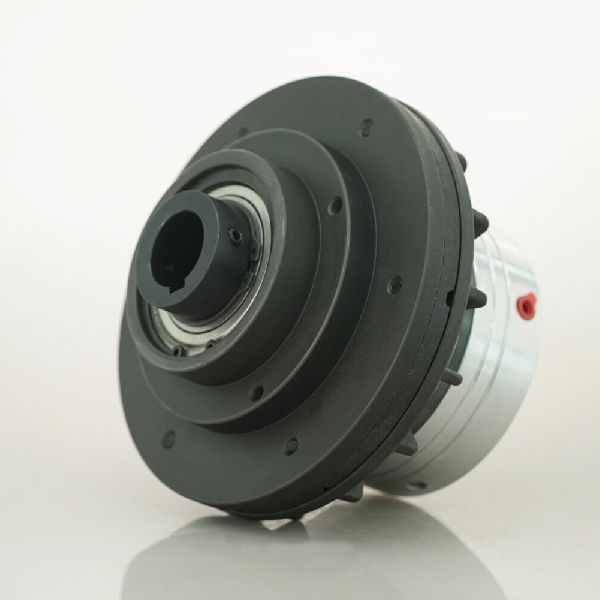

Leading Manufacturer, Supplier & Retailer of NAC-10 pneumatic friction clutch winding machine.
NAC pneumatic friction clutch is mainly composed of air cylinder, friction pads, cooling plate, friction flange plate, air cylinder is connected with shaft via spline. When there is no air supply, friction flange plate is rotating with motor in idle; after supplying air source, cooling plate will be forward and touched friction flange plate, clutch linked. So as to transmit power from driving part to driven part effectively.
Following are some of characters of this NAC pneumatic friction clutch for your reference:
Model: NAC-2, NAC-5, NAC-10, NAC-20, NAC-40, NAC-60
Weight: 2.9-50kg
Dimension: 258*226*50mm (shaft diameter 50mm)
Torque: 26-590N.M
Air pressure: 0.6Mpa
Volume of air chamber (cm3): 86.01
Allowable friction plate abrasion Vf (cm3): 148.2
Rotating speed limit Nc (r/min): 1200-1800r/min
