Iron & Iron Products

Our product range contains a wide range of Cast Iron Surface Plate, Cast Iron Floor Plate, Cast Iron Vee Block and Cast Iron Square Box,cast Iron Square Cube

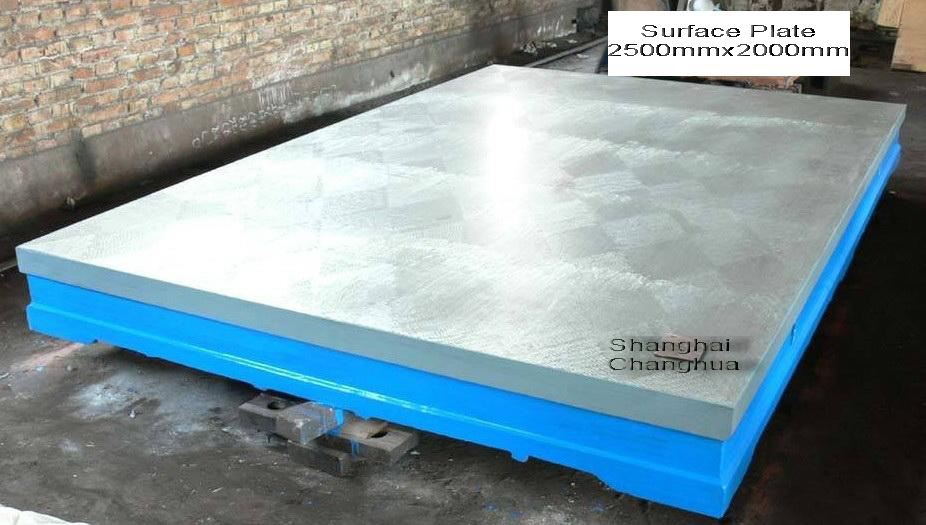

Cast Iron Surface Plate

Cast Iron Surface Plate
  • Min. Order (MOQ) 1 Piece(s)
Specification: 100x100mm-4000x8000mm (special specifications can be made as your requirement). We provide special tapped holes and t-slots at the top working surface for fixing work or measuring instruments at extra cost. These are offered as per customers specifications. usage: it is applicable to various inspections and benchmark planes for accuracy measurement. It also can be used as the measurement benchmark for machine tool inspection and to inspect the dimension accuracy or running difference with the function of performing precise lineation. It is an inevitable tool during machine manufacturing. materials and processing: the material of our surface plate is high strength cast iron ht200-300, working surface degree of hardness is hb170-240, undergoes two manual handlings(artificial annealing 600-700 degrees with natural aging 2-3years) to make the product stable in accuracy and good in grinding resistance.

Additional Information:

Payment Terms : L/C, T/T, Western Union

Packaging Details : wooden case

View Complete Details
Ask Latest Price & Details

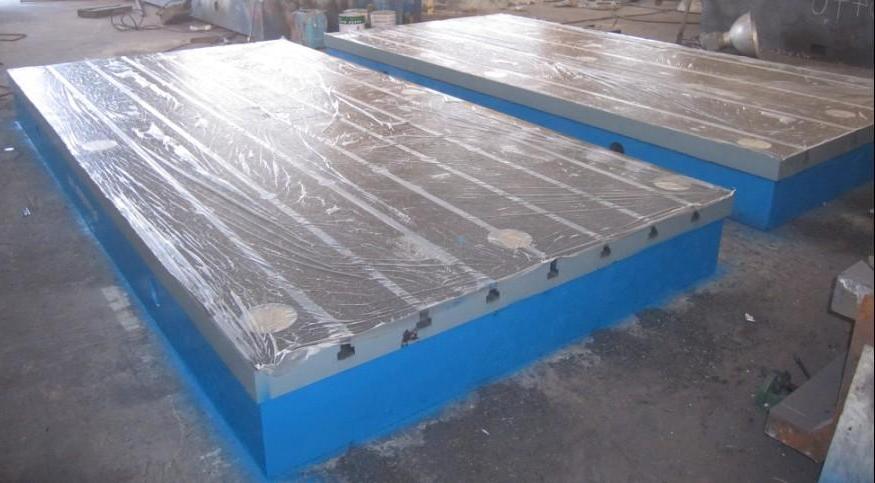

Cast Iron Floor Plate

Cast Iron Floor Plate
Specification: 100x100mm-4000x8000mm (special specifications can be made as your requirement). We provide special tapped holes and t-slots at the top working surface for fixing work or measuring instruments at extra cost. These are offered as per customers specifications. usage: it is applicable to various inspections and benchmark planes for accuracy measurement. It also can be used as the measurement benchmark for machine tool inspection and to inspect the dimension accuracy or running difference with the function of performing precise lineation. It is an inevitable tool during machine manufacturing.
View Complete Details
Ask Latest Price & Details

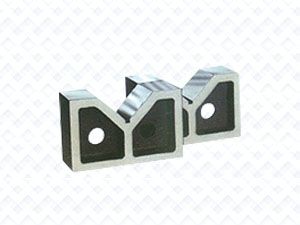

Cast Iron Vee Block

Cast Iron Vee Block
Made according to Standard JB/T8047-95, V slot type I is made of high quality tool steel, V slots of II, III type are made of HT200. Normally, V slots I, II, III type are supplied in pairs. It's used in testing, Line drawing and position setting of precision axles and the mounting in mechanical machining. As a manufacturer, we would like to give you a best price and high quality.Specification will be response.

Additional Information:

Payment Terms : L/C, T/T, Western Union

Packaging Details : wooden case

Delivery Time : in 10days afer your order confirmed

View Complete Details
Ask Latest Price & Details
Cast Iron Square Box,Cast Iron Square Cube

Cast Iron Square Box,Cast Iron Square Cube
square block (as per gb7-62) is an important auxiliary tool in the plate measurement. it is used for inspecting and measuring the tridimensional lineation by fitters, the parallelism and verticality of machining parts, as well as various location differences.

Additional Information:

Payment Terms : L/C, T/T, Western Union

Packaging Details : wooden case

Delivery Time : deponed on your quantity

View Complete Details
Ask Latest Price & Details
