SHENYANG FOUNDRY AND FORGING INDUSTRY CO., LTD.

Liaoning, China

• MOQ 1 Set(s)

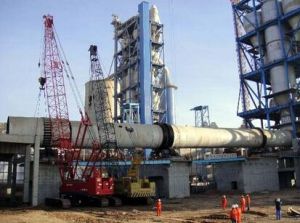

The rotary kiln is widely used in various industries, for magnetizing roast of poor magnetic iron ore, oxidizing roast of josephinite in steel works, metallurgy roasting in refractory plant, clinker roasting in aluminium plant, chrome ore and chrome powder roasting etc. The rotary kiln is a kind of drum rotation machine. There are two types of oxidation pelletizing rotary kiln and metallurgical rotary kiln. The main structure consists of support device, shell, driving device, sealing hoods of head and tail, structure cooler, sealing device of head and tail etc. Our company is a leading manufacturer of rotary equipment in China. In our achievements list, the biggest rotary diameter is 8.28m and the longest length is 165m. Our kiln has many advantages of advanced structure, low failure rate, low energy consumption, easy maintenance etc. Intelligent centralized lubrication system is adopted which is easy to centralized control. In order to avoid accident, kiln inner temperature and refractory condition are closely monitored through advanced monitor. The kiln is equipped with cooling system and shell protection device which could keep long life availably. The latest sealing technology in domestic is adopted to ensure the better sealing effect and longer service life of seal segments.

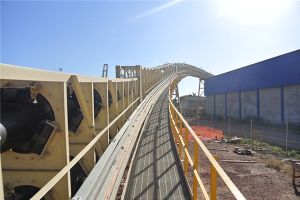

Product introduction tube belt conveyor can realize many functions such as the sealing of bulk material and environmentally friendly transportation, effectively avoiding material leaking, dust raising, trash mixing, precipitation blending. Tube belt conveyor can be divided into single direction material conveying and double direction material conveying. Product achievement with the continuous development of industry technology, nhi is the leader of innovation. As one of important conveyor manufacturers in china, nhi has input much in transporting project with environmental protection. So far nhi has owned patents and property rights of tube belt conveyor and the capability of designing and manufacturing. Now nhi can design and manufacture tube belt conveyor in range of î¦100~î¦650.

• MOQ 1 Set(s)
• Capacity(t/h)35-1200
• Brand NameJULI
• Country of OriginChina
• Model Number2

The working principle: apron feeder is a kind of conveyor, which uses the link chain as the traction. The trough plate loading materials is set on the link chain. The sprocket wheel is set on the transmission shaft. the transmission shaft and hollow shaft of reducer are linked together through the locking disk. The sprocket wheel is forced to run when the apron feeder operates. In general, the apron feeder is installed under the storage silo. When the link plate is running, the materials will continuously move to the trough plate of link chain. The purpose of conveying materials could be realized. General introduction: the apron feeder is widely used in metallurgy, building materials, coal and chemical industry. The apron feeder has three series: heavy series, middle series, and light series. According to the strength of materials, working capacity of machine, the pressure of storage silo, and volume-weight of materials, we would choose the different series of apron feeder. In this way, the materials with multi-granularity and volume-weight could be transported to various receiving device. The main structures of apron feeder consists of actuating device, transmission shaft device, tensioning shaft device, thrust wheel, chain plate device and machine frame. Working capacity: 60-1100th feeding granularityã¯â¼ï¿½500-1500mm motor powerã¯â¼ï¿½11-45kw

• MOQ 1 Set(s)

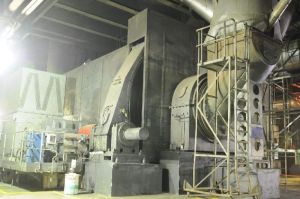

After many times of design improvements, MTZ steel ball coal mill fully adopts the double-inlet & double -outlet coal mill technology, the product is widely used for coal pulverizing system pulverized coal preparation in the industries of power, metallurgy, building material, chemical and environment protection etc., especially applicable for the bituminous coal, meager coal with the poor grind ability and negative-pressure storage pulverizing system of bituminous coal. After multiple renovating designs, MTZ steel ball coal mills manufactured by NHI have the advantages of less land occupation, low electricity consumption, steady running, reliable performance, strong adaptability, easy operation, long service life of wearing parts and widely used for pulverized coal preparation system in the power, metallurgy, building material, chemical and environment protection industries. The product is especially applicable for the pulverized coal preparation system with storage. MTZ steel ball coal mills as the competitive products of NHI in the last century have high market share in domestic market with thousands of productions.

• MOQ 1 Set(s)
• Brand NameNHI

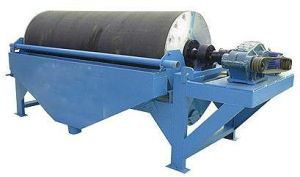

HMDN coal washing   magnetic separator   is a kind of full countercurrent wet magnetic separation equipment specially designed for the recovery of magnetic medium in heavy medium coal preparation plant. By learning advanced technology and design concept from  Europe and America, and constantly practising and improving, we have achieved higher recovery rate in our equipment than that of other like products at home . The heavy medium content in the feed slurry can be in the range of 87-260kg/m, and the recovery rate of the heavy medium is up to  99.7%-99.9%. The tank body is made of stainless steel, which can prolong the service  life of the whole machine. This machine has  continuous feeding and discharging functions , in addition,  it can be used in tandem to make more efficient  preparation . The principle is that when the slurry enters the magnetic field, the ferromagnetic mineral is a ttracted to  the surface of the cylinder, and the weak magnetic and non-magnetic minerals are flowed  out by the water . As the rotation of the cylinder, the ferromagnetic mineral on its  surface is taken out  and  flushed into the concentrate tank by  water to complete the separating  operation.

• MOQ 1 Piece(s)
• Brand NameNHI

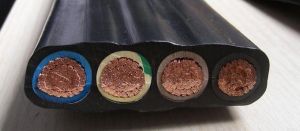

Product Features: With h igh wear resistance, high strength, high flexibility, tear resistance, waterproof ness , bending resistance, folding resistance, greaseproofness , cold resistance (-40 ℃ -   80 ℃ ), UV resistance, flame retardant  and  high frequency . A t least 3-5 times  longer  service life  than that of ordinary rubber flat cable.   Application range: Stacker re claimer  reel cable is appropriate for the installation in the dry or wet rooms  or under the free continuous reciprocating motion without forced release or forced guidance, especially i n the industrial environment  with  frequent bending .   I n order to avoid  entanglement, wear, tear, hooking   and scattering, the cable is often wound on a large cable reel  for p rotect ion . Widely used in complex working conditions , such as  ports, large yards, mines, large loading and unloading yards and etc .   P roduct structure: Conductor: many strand s of fine- twisted  oxygen-free copper wire, in line with VDE0295ass6 Insulation: special mixed PVC insulation Core color: digital label or color distinction (can be customized  as per  customer requirements ) Inner sheath: special high strength sheath compound Outer Sheath: US imported polyurethane material Outer sheath color: gray, black, orange ( other colors are available according to customer requirements) Rated voltage: ≥ 0.5mm: 300/500V ;
