shenzhen Hilinks technology CO.,ltd .

shenzhen, China

• MOQ 1 Piece(s)

We offer Cavity Filter N Female Connector. 1.Low Loss 2.High Rejection 3.Low Temperature Coefficient 4.Compact5.Customization Available 1, rf filtterslowpasshighpassbandpass filters manufacturer(869-894MHz) 2, 2472-2492MHz Rf cavity filter 3, PE5100 80250VDC 50A~140A DC EMIEMC filters, cavity RF filter 4, 889-909MHz 934-954MHz RF GSM Cavity Filter 5, 1747.5 MHz Cavity Notch Filter 6, 2400MHZ-2500MHz WLAN Cavity Bandpass Filter 7, RF 880-915mhz manufacturer cavity filter with n female connector Name GSM Filter Freq.range(MHz) RX 885-909MHz TX 930-954MHz VSWR le 1.2 Insertion Loss(dB) le 1.2dB le 0.6dB IMD3 -140dbc (at) 2x 43dBm Connector Input : 716 Male Output:716 Femal Name Time Delay Filter 　 Freq.range(MHz) 2610~2700 Band(MHz) 90 Insertion Loss(dB) le 0.35 Return loss(dB) le -20 Delay Time(ns) 10.5 ns Name BEF Filter Model No. HLS-DIP22-34 Freq.range(MHz) GSM&DCS&TDA&F&E WLAN 880～960MHz& VSWR le 0.6dB Insertion Loss(dB) le 1.5dB Power 200W Connector N-Female

• MOQ 1 Piece(s)

We offer Rf Gsm Duplexer . High Q cavity design High isolation Low insertloss High Power Handling Low passive IMD 1, RF GSM Duplexer RF Cavity duplexer CDMA Duplexers rf duplexer (885-935MHz) 3, 800-9601710-1880MHz, 1920-2170MHz RF duplexer 4, 825-880MHz RF CDMA Duplexers Name : 800MHz Duplexer 2100MHz Duplexer Freq.range(MHz) RX----ANT 824-849 RX----ANT 1710-1780 ANT----TX 869-894 ANT---TX 2110-2180 Band(MHz) 25 70 Insertion Loss(dB) le 1.8 le 1.0 Return Loss(dB) le -20 le -20 In-band Ripple(dB) le 1.2 le 0.8 suppresses (dB) le 30 le 30 IMD(ANT) le -100dBm at 2 x 43 dBm le -100dBm at 2 x 43 dBm le -123dBm at 2 x 27 dBm le -123dBm at 2x 27 dBm

• MOQ 1 Piece(s)

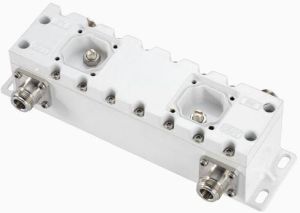

We offer Cavity RF 3dB Hybrid. 1, low Insertion Loss 2, Wide frequency 3, OEM service is available. 800-2500MHz 200W Cavity RF 3dB Hybrid 698--2700MHz DIN Female outdoor 3dB Hybrid Coupler Model HLS-BRI13-14 Frequency Range 1710~1880MHz Insertion Loss ≤0.5dB Bandpass Ripple ≤0.5dB Isolation ≥30dB VSWR ≤1.25 PIMD3 ≤-150 dBc @2×43dBm Impedance 50Ω Connector DIN-K Average Power（W） 500 Peak Power（W） 1500 Dimensions 182*51.6*45.8 Environment temperature -30 ~ +65℃ Humidity ≤95% Material Copper joint , Inner conductor and cavity conductive anodizing

• MOQ 1 Piece(s)

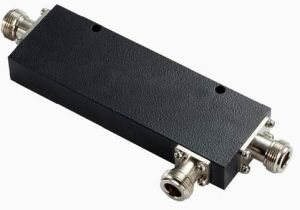

We offer RF directional Coupler . Features : Wider Bandwidth Low Insertion Loss Low PIM Small Volume, Light Weight Higher Power Capacity Name : 1, DIN-F 0.8-2.5GHz RF Base Station Directional Coupler 40dB 200W 2, factory for 5dB, 500W, RF directional Coupler 6982700MHz800-2500MHz 800-2700MHz, DIN- female connector 3, IBS popular hot sales rf Directional Coupler 4, 800-2700MHz N-Female Cavity Directional Coupler 5, RF Cavity Directional Coupler 800-2500MHz 6, 5dB6dB7dB10dB15dB20dB25dB RF 200W Cavity Directional Coupler 7, Directional Coupler( N Female Port, 71015dB , 700-2700 MHz) With Low PIM 8, Waterproof 567101520304050dB DIN(716) female RF High Power Directional Coupler (800-2700MHz) 9, 10dB 700-2700MHz DIN-Connector RF Base Station Directional Coupler 10, Passive Microwave Wireless GSMFMUHFUMTS Directional Couplers 11, Microwave 470-800MHz N-Female RF Cavity Low Frequency Band Directional Coupler 12, Directional Coupler GSMFMUHFUMTS Passive Microwave Wireless High Power Hybrid Coupler Item (6dB) (7dB) (10dB) (15dB) (20dB) (30dB) (40dB) Insertion Loss le1.76 le 1.47 le 0.96 le 0.44 le 0.34 le 0.3 le 0.3 Port Name(MHz) from 800 to 2700Mhz Mean coupling (dB) 6-+0.6 7-+0.6 10-+1.0 15-+1.0 20-+1.0 30-+1.5 40-+1.5 Isolation(dB) le 24 le25 le 28 le 33 le 38 le 48 le 55 (dBc) le -150 Impedance 50ohm VSWRVSWR le 1.25 Connector DINN Average Power(W) 500 300 Peak Power(W) 1500 1000 Dimensions (LxWxH) (mm) 167x 62.2x33 Weight (g): 220 Working Temperature from -30 to +65 celsius Humidity from 5 to 95 per cent

• MOQ 1 Piece(s)
• Number Of Flowerblack

We offer RF Power divider. Features : High Isolation, High power handing Quality and quantity guaranteed Excellent input VSWR Low PIM Multi-Band Frequency High Reliability Designs Available Name : 1, 698-2700MHz 234 Way Power Divider (Power Splitter) 2, 200 watts 3-way power splitter with 698-2700MHz N female type 3, Popular hot sales RF Power divider N-Female IndoorOutdoor Power Splitter 4, Power Splitter with DIN 7 16 Female connectors 698 - 3500MHz 3 Way Splitter 5, 200W, 2 way2 port RF Power dividerpower splitter. 698-2700MHz, PIM:-150dBc, N female connector Widely used in IBS & DAS 6, 698-2700MHz, 234-way Cavity RF Power SplitterDivider(200W, IBS used) 7, Max power 200w 800-2500MHz 2 way Cavity Power Divider Splitter 8, 2 Way Micro-Strip Power DividerSplitter 698-2700MHz, PIM 9, RF Cavity Power Splitter 3 Way, 380-2700MHz DIN-Female or N-Female Connector Passive Microwave Wireless Type 2-way 3-way 4-way Insertion Loss le 3.3 le 5.2 le 6.5 VSWR le 1.25 le 1.25 le 1.25 Bandpass Ripple le 0.3 le 0.45 le 0.55 Frequency Range From 800 to 2700MHz PIMD3 le -150dBc at 43dBm x 2 PIMD5 le -160dBc at 43dBm x 2 Connector DIN N DIN N DIN N Average Power(W) 500 300 500 300 500 300 Peak Power(W) 1500 1000 1500 1000 1500 1000 Impedance 50ohm Environment temperature from -30 to +65 celsius Humidity le 95 per sent Ingress Protection IP65 Material Copper joint, Inner conductor and cavity conductive anodizing

• MOQ 1 Piece(s)

We offer N Male female Termination Load Dummy Load. Wide Frequency Band Low VSWR Good Performance Available for N, DIN and SMA connectors 1，50W N MaleFemale Termination Load Dummy Load 2，DC-3GHz 100W N Male dummy load 3，25W 716(DIN) Male(Female) Termination Load Dummy Load 4，N male RF 50Ohm Fixed Coaxial 50w Dummy Load 5，RF Dummy Load 50W Coaxial Load with DIN Male Connector (Telecom parts) 6，DC-3GHz DIN connector RF Coaxial Fixed 50Ohm Dummy Load 25w Termination Load 7，Top Quality Low VSWR high power dummy load for generator sets testing for Wireless Applications 8，50ohm N connector attenuator 30W dummy load Model No. Freq.(MHz) Power(W) IMD(dBc) V.S.W.R Connector HLS-L25-07 800-3000MHz 5W le-120DBC(+33DBM2) le 1.2 N femaleN male HLS-L2B-07 800-3000MHz 25W le -120DBC(+33DBM2) le 1.2 N femaleN male HLS-L2C-08 800-3000MHz 50W le -120DBC(+43DBM2) le 1.2 N femaleN male HLS-L2D-08 800-3000MHz 100W le -120DBC(+43DBM2) le 1.2 N femaleN male HLS-L2E-08 800-3000MHz 200W le -120DBC(+43DBM2) le 1.2 N femaleN male HLS-L2C-07 800-3000MHz 50W le -105dBc(+43dBm2) le 1.2 N femaleN male HLS-L2D-07 800-3000MHz 100W le -105dBc(+43dBm2) le 1.2 N femaleN male HLS-L2E-07 800-3000MHz 200Wle -105dBc(+43dBm2) le 1.2 N femaleN male HLS-L25-08 800-3000MHz 5W le -125DBC(+33DBM2) le 1.2 N femaleN male HLS-L2B-08 800-3000MHz 25Wle -125DBC(+33DBM2) le 1.2 N femaleN male HLS-L2E-06 800-3000MHz 200Wle -150DBC(+43DBM2) le 1.2 N femaleN male
