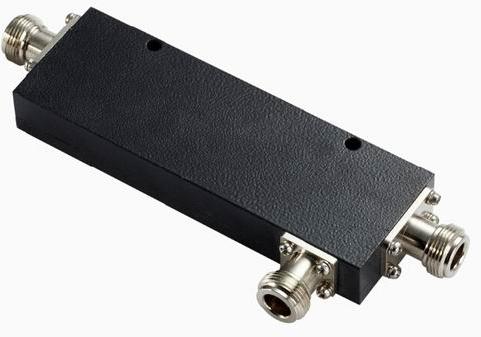

RF Directional Coupler

We offer RF directional Coupler .
Features :
Wider Bandwidth
Low Insertion Loss
Low PIM
Small Volume, Light Weight
Higher Power Capacity
Name :
1,DIN-F 0.8-2.5GHz RF Base Station Directional Coupler 40dB 200W
2, factory for 5dB, 500W, RF directional Coupler 6982700MHz800-2500MHz 800-2700MHz, DIN- female connector
3, IBS popular hot sales rf Directional Coupler
4, 800-2700MHz N-Female Cavity Directional Coupler
5, RF Cavity Directional Coupler 800-2500MHz
6, 5dB6dB7dB10dB15dB20dB25dB RF 200W Cavity Directional Coupler
7, Directional Coupler( N Female Port, 71015dB ,700-2700 MHz) With Low PIM
8, Waterproof 567101520304050dB DIN(716) female RF High Power Directional Coupler (800-2700MHz)
9, 10dB 700-2700MHz DIN-Connector RF Base Station Directional Coupler
10, Passive Microwave Wireless GSMFMUHFUMTS Directional Couplers
11,Microwave 470-800MHz N-Female RF Cavity Low Frequency Band Directional Coupler
12,Directional Coupler GSMFMUHFUMTS Passive Microwave Wireless High Power Hybrid Coupler
Item (6dB) (7dB) (10dB) (15dB) (20dB) (30dB) (40dB)
Insertion Loss le1.76 le 1.47 le 0.96 le 0.44 le 0.34 le 0.3 le 0.3
Port Name(MHz) from 800 to 2700Mhz
Mean coupling (dB) 6-+0.6 7-+0.6 10-+1.0 15-+1.0 20-+1.0 30-+1.5 40-+1.5
Isolation(dB) le 24 le25 le 28 le 33 le 38 le 48 le 55
(dBc) le -150
Impedance 50ohm
VSWRVSWR le 1.25
Connector DINN
Average Power(W) 500 300
Peak Power(W) 1500 1000
Dimensions (LxWxH) (mm) 167x 62.2x33
Weight (g): 220
Working Temperature from -30 to +65 celsius
Humidity from 5 to 95 per cent
