Shenzhen Yixi Electronics Co., Ltd

• MOQ 500 Piece(s)

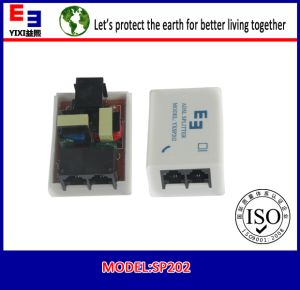

Rj11sp202adsl Splitter Brand �YX Model �YXSP202 Input interface: RJ11 Output interface : RJ11 Bandwidth : 4.4�MHz� Transmission distance:200�m� Power voltage: 12�V� Power frequency : 20K(Hz� Power : 6�W� Working temperature: -15*85��� Specification POST PORT IMPEDANCE� Zr=600 Ohm Modem impedance�25 kHz to 22.8 kHz 100 Ohm Insertion loss� @1000Hz =58 dB 1KHz =53dB Attenuation� 30 kHz

• MOQ 500 Piece(s)

Sp36102adsl Splitter Brand:YX Model:YXSP36102 Input interface:Gold finger Output interface :Gold finger Bandwidth :12(MHz) Transmission distance:200(m) Power voltage: 12(V) Power frequency : 200(Hz) Power : 6(W) Working temperature: -15~85(℃) Specification POST PORT IMPEDANCE：Zr=600 Ohm Modem impedance：30 kHz to 4.4M Hz100 Ohm Insertion loss： @1020 Hz =40 dB 600 Hz =46dB 3400 Hz =40dB 30K Hz =45dB 1104K Hz =30 dB Attenuation：30 kHz

• MOQ 100 Piece(s)

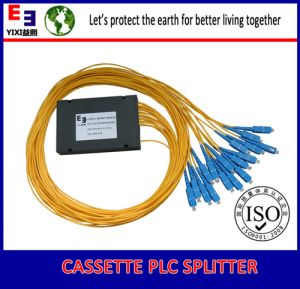

Abs Box Splitter PLC SPLITTER Introduction Planar Lightwave Circuit Splitter (PLC Splitters) is a kind of power splitter based on the integrated quartz baseplate with small size, wide operating wavelength range, high reliability, and good uniformity so on, especially suitable for passive optical network (EPON, BPON, GPON, etc.) to connect the central office and terminal equipment for achieving the branching of the optical signal.So far there are two types of PLC 1×N and 2×N Splitter .PLC 1×N and 2×N Splitter divide uniformly optical signals from one or two inputs to multiple outputs, and splitter can be operated in reverse direction to combine multiple signals into fiber or two fibers. Classification BARE FIBER PLC SPLITTER，MICRO PLC SPLITTER，ABS BOX PLC SPLITTER，BRANCH PLC SPLITTER，tray plc splitter, Insert cassette PLC　splitter，FRAME TYPE PLC SPLITTER…… Features 1. Broadband Operation Wavelength 2. Low Insertion loss 3. Low Polarization Dependent Loss 4. Compact Design 5. Good channel-to-channel uniformity 6. High Reliability and Stability 7. Pass Telcordia GR-1221-Core Reliability Test 8. Pass Telcordia GR-1209-Core Reliability Test 9. RoHS Compliance 10. Provide different types of connectors for customers, easy to install and reliable performance

• MOQ 500 Piece(s)

Fiber Optic Patch Cord Definition： Fiber optic patch cord refers to the optical fiber that can be connected to desktop computer or device directly, convenient for device’s connectivity and management. The patch cord is used from device to fiber optic cabling connection. It has thick layer of protection, and is usually used in the connection between the optical and the terminal box. Structure Fiber optic patch cord is similar to coaxial cable, only without mesh shield. Its center is core of glass for light propagation. The diameter of core is 15μm~50μm in multi-mode optical fiber, equal to the thickness of human hair. But the diameter of single-mode optical fiber core is 8μm~10μm. The core surrounded by a layer of lower refractive index than the core of the glass envelope keep the optical fiber in the core. And then the outside is a thin layer of plastic jacket to protect the envelope. Classification: According to different transmission media, fiber optic patch cord can be divided to common silicon-based optical fiber, Single-mode and Multi-mode patch cord, and other fiber optic patch cord that transmit through media such as plastic. According to connector structure styles, it can be divided to patch cord of FC, SC, ST, LC, MTRJ, MU, E2000, DIN4, etc. 　 Single-mode fiber: Cable Color is yellow. The connector and protective sleeve are blue. Its transmission distance is longer Multi-mode fiber: Cable color is orange or grey. The connector and protective sleeve are beige or black. Its transmission distance is shorter According to Outer protection layer materials, it can be divided to PVC and LSZH

• MOQ 500 Piece(s)

Rj11sp304adsl Splitter Brand：YX model：SP-304 Input interface：RJ11 bandwidth：2.2（MHZ）transmission distance：200M supply voltage：12V supply frequency：60HZ power:6W operating temperature：-15~85℃ Best-selling telecom standard adsl splitterrj11 rj45 adsl splitter can eliminate the interference between data signal and voice signal transmitted in the same telephone line and make the internet and telephone go both at the same time(Data signal for internet voice signal for telephone) The structure of Adsl splitterfilter: One RJ11 at one end for line. 1. Professional design, manufacture - XDSL SPLITTER FILTER. 2. Can pass the ROHS demonstration. 3. Independent design and production. 4. Complete split with DSL and the POTS. 5. Ease of installation. 6. Three 6P2C RJ11, 1 input port (Line), 2 output ports (Phone, Modem). 7. Conforms YDT1187-2006 standards&ITU-T G.992.1.E1. 8. 2 + ADSL Splitter. 9. Passed ISO9001.
