PLC SPLITTER
Introduction

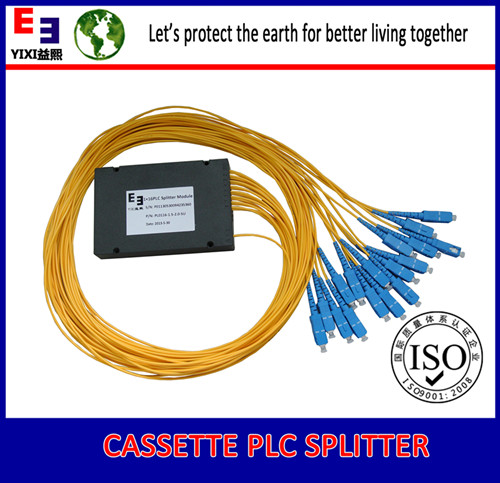

Planar Lightwave Circuit Splitter (PLC Splitters) is a kind of power splitter based on the integrated quartz baseplate with small size, wide operating wavelength range, high reliability, and good uniformity so on, especially suitable for passive optical network (EPON,BPON,GPON,etc.) to connect the central office and terminal equipment for achieving the branching of the optical signal.So far there are two types of PLC 1×N and 2×N Splitter .PLC 1×N and 2×N Splitter divide uniformly optical signals from one or two inputs to multiple outputs, and splitter can be operated in reverse direction to combine multiple signals into fiber or two fibers.
Classification
BARE FIBER PLC SPLITTER,MICRO PLC SPLITTER,ABS BOX PLC SPLITTER,BRANCH PLC SPLITTER,tray plc splitter, Insert cassette PLC splitter,FRAME TYPE PLC SPLITTER……
Features
1. Broadband Operation Wavelength
2. Low Insertion loss
3. Low Polarization Dependent Loss
4. Compact Design
5. Good channel-to-channel uniformity
6. High Reliability and Stability
7. Pass Telcordia GR-1221-Core Reliability Test
8. Pass Telcordia GR-1209-Core Reliability Test
9. RoHS Compliance
10. Provide different types of connectors for customers, easy to install and reliable performance
