Shenzhen Bellsent Technology Co.,Ltd

Guangdong, Shenzhen, China

• MOQ 1 Set(s)

Built in intelligent video analytic module(intrusion detection, unattended baggage, removal object, illegal parking, loitering detection, autonomous ptz tracking, firworks detection, people counting) image sensor: 1/3"sony super had ii ccd sensor size:4.9mm × 3.7mm signal：pal/ntsc effective pixel:p:752(h)×582(v)n:768(h)×494(v) resolution:color 540tvl bw 650tvl lens:focus 6/8/12mm shutter speed：1/50(1/60)~1/100.000sec s/n ratio：>48db(agc off) white balance：auto minimum illumination：0 lux(ir on) video output：1.0mp-p75ω (bnc) ir led lamp：f8*36pcs 850nm ir distance：40-50m video compression：mpeg4 resolution：cif protocol：tcp/ip, udp/ip, http, smtp, dhcp, dns, sntp ethernet (ieee 802.3/802.3u)：1x ethernet rj-45 port, 10m.100m auto adaptive port:video out(bnc), rj45 power:dc 12v, ir on max current 650ma weight:n.w1.2kg.

• MOQ 1 Set(s)

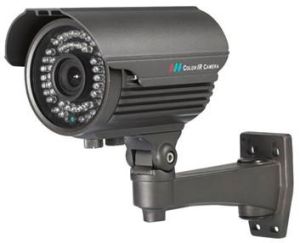

Model:be-500vc image sensor:1/2" cmos effective pixels:1600*1200 min illuminace:0 s/n ratio:>48db electronic shutter: 1/25s-1/20, 000s ir led:42*f5 ir distance:20m lens: 3.3mm~12mm power supply:dc12v working temperature:-10degree~+60degree video frequency: h.264, support 1ch d1 @25fps+1ch cif@15fps dual stream compression output code rate:0.1m~2mpbs, 1~30f/s protol:tcp/ip, ftp, pppoe, dhcp, ddns/ntp/upnp operation: support osd, real time video transmission, store a replay, video download, motion detection and i/o alarm, picture pop-up, client remote monitoring software audio input: 1ch mic input audio output:1ch, impedance 16kω, output power(30mw), can connect with earphone or amplifier commuication interface:1rj45 10m/100m self adaptive ethernet and 1 rs485 interface video output:1 vp-p composite output(75ohm, nbc).

Model:be-200wb image sensor:1/2" cmos effective pixels:1600*1200 min illuminace:0 s/n ratio:>48db electronic shutter: 1/25s-1/20, 000s ir led:42*f5 ir distance:30m~40m ir filter:support lens: standard 4.0, power supply:dc12v working temperature:-10degree~+60degree video frequency: h.264, support 1ch d1 @25fps+1ch cif@15fps dual stream compression output code rate:0.1m~2mpbs, 1~30f/s protol:tcp/ip, ftp, pppoe, dhcp, ddns/ntp/upnp operation: support osd, real time video transmission, store a replay, video download, motion detection and i/o alarm, picture pop-up, client remote monitoring software audio input: 1ch mic input audio output:1ch, impedance 16kω, output power(30mw), can connect with earphone or amplifier commuication interface:1rj45 10m/100m self adaptive ethernet and 1 rs485 interface video output:1 vp-p composite output(75ohm, nbc).

• MOQ 1 Set(s)

Model:be-200wbc image sensor:1/2" cmos effective pixels:1600*1200 min illuminace:0 s/n ratio:>48db electronic shutter: 1/25s-1/20, 000s ir led:66*f5 ir distance:60m lens: standard 4.0, power supply:dc12v working temperature:-10degree~+60degree video frequency: h.264, support 1ch d1 @25fps+1ch cif@15fps dual stream compression output code rate:0.1m~2mpbs, 1~30f/s protol:tcp/ip, ftp, pppoe, dhcp, ddns/ntp/upnp operation: support osd, real time video transmission, store a replay, video download, motion detection and i/o alarm, picture pop-up, client remote monitoring software audio input: 1ch mic input audio output:1ch, impedance 16kω, output power(30mw), can connect with earphone or amplifier commuication interface:1rj45 10m/100m self adaptive ethernet and 1 rs485 interface video output:1 vp-p composite output(75ohm, nbc).

• MOQ 1 Set(s)

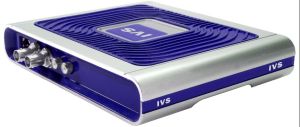

number of intelligent video analysis channels:1 analog video input tv standard:composite 1vp-p – ntsc or pal physical connector:1x bnc 75ω analog video output tv standard:composite 1vp-p – ntsc or pal physical connector:1x bnc 75ω digital video output ip video streaming:mpeg-4 sp and m-jpeg, two separate, independent and configurable video streams max resolution per channel:4cif frame rate:up to full frame rate bit rate:cbr (128kbps – 4mbps), vbr network ethernet (ieee 802.3/802.3u):2x rj-45 interface services and protocols:tcp/ip, udp/ip, http, smtp, dhcp, dns, sntp video streaming:rtp/rtsp alarms/commands:tcp/ip i/o interface serial (one interface per input for ptz camera control):2x rs-232+1x rs-485 in - alarm input:4 x alarm inputs (from dry contacts) out - relay output:2x relay output (rated load 1a@30vdc) power source voltage:12vdc power consumption:8w physical dimensions dimensions (mm):189 x 36 x 164 mm (wxhxd) dimensions (inches):77/16" x 113/32" x 67/16" (wxhxd) mounting:shelf mount.
