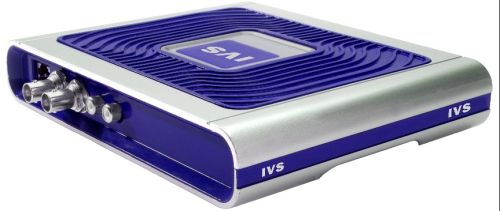

Intelligent Video Encoder With 2 CIF

number of intelligent video analysis channels:1
analog video input
tv standard:composite 1vp-p – ntsc or pal
physical connector:1x bnc 75ω
analog video output
tv standard:composite 1vp-p – ntsc or pal
physical connector:1x bnc 75ω
digital video output
ip video streaming:mpeg-4 sp and m-jpeg, two separate, independent and configurable video streams
max resolution per channel:4cif
frame rate:up to full frame rate
bit rate:cbr (128kbps – 4mbps), vbr
network
ethernet (ieee 802.3/802.3u):2x rj-45 interface
services and protocols:tcp/ip, udp/ip, http, smtp, dhcp, dns, sntp
video streaming:rtp/rtsp
alarms/commands:tcp/ip
i/o interface
serial (one interface per input for ptz camera control):2x rs-232+1x rs-485
in - alarm input:4 x alarm inputs (from dry contacts)
out - relay output:2x relay output (rated load 1a@30vdc)
power source
voltage:12vdc
power consumption:8w
physical dimensions
dimensions (mm):189 x 36 x 164 mm (wxhxd)
dimensions (inches):77/16" x 113/32" x 67/16" (wxhxd)
mounting:shelf mount.
