Shijiazhuang Teneng Electrical & Mechanical Equipment Co.ltd

shijiazhuang, hebei, China

• MOQ 1 Set(s)
• Brand Nameteneng

We are offering Slitting Machine. Technological Capability: 1.1 Raw material: car bon steel strip 1.2 Specification of raw material: Thickness of steel strip 1 - 4 mm Width of steel strip 900- 1600mm Inner diameter of strip coil 610mm Outside Diameter of Srtip Coil 1200 -1800mm Max weight of strip coil 15 tons 1.3 Finished Product Inner diameter of strip coil 610mm Max Outside Diameter : 1800mm 1.4 Slitting capacity quantity of srip 12 strips 1.5 Max Line Speed 60mmin 1.6 Input Power: 380Volt, 3 phase, 4 lines, 50Hz. 1.7 Feeding Direction: Left side or right

• MOQ 1 Piece
• Brand Nameteneng
• ifferent shapes of pipe making machinerywell and high quality control
• round pipe od(mm) Ø12–Ø50mmsq&rect.pipe(mm) 10X10mm –40X40mm

• MOQ 1 Set
• Brand Nameteneng
• produce round pipe 1" - 3"square tube 25x25mm - 70x70mm
• high quality ms making machine,simple opration

• MOQ 1 Set(s)
• Brand Nameteneng
• product black steel pipewell and high quality control
• ifferent shapes of pipe making machinerysimple opration

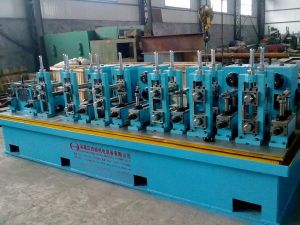

High frequency welded pipe mill line strainght seam line frequency welded pipe mill is the special equipment producing welded steel pipe and profile pipe for industries such as metallurgy, constrution, transportantion, machinery, vehicles and so on. Taking cold or hot-rolled steel as raw materials, through cold -formed and high-frequency welding method to produce the round pipe, square pipe and rectangle pipe. Specification Model Round Pipe OD(mm) Thickness of tube(mm) Powe of major motor(mmin) HG20 Φ8-Φ20 0.3-1.2 30-120 HG32 Φ10-Φ32 0.4-2.0 30-100 HG50 Φ12-Φ50 0.5-3.0 30-90 HG60 Φ20-Φ76 0.8-3.5 30-90 HG76 Φ25-Φ76 1.5-4.0 20-80 HG114 Φ50-Φ140 1.5-4.5 20-70 HG165 Φ60-Φ165 1.5-5.0 20-60 HG219 Φ89-Φ219 2.0-6.0 20-50 HG273 Φ89-Φ273 2.0-8.0 20-50 HG325 Φ114-Φ325 3.0-10.0 15-40 HG355 Φ114-Φ355 4.0-12.7 15-40 HG377 Φ114-Φ377 4.0-14.0 15-40 HG406 Φ165-Φ406 4.0-14.0 15-30 HG508 Φ219-Φ508 5.0-16.0 15-30 HG630 Φ219-Φ630 6.0-19.0 15-25

• Brand Nameteneng
• simple oprationwell and high quality control
• produce round pipe 1" - 3"square tube 25x25mm - 70x70mm.

The mill is intended for manufacturing of round pipe of φ32mm-φ89mm with thickness of 1.5mm–4.5mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths. finished product will be of round, square or rectangular pipe. the technical flow of the production line {steeltape}→→ double-head un-coiler →→strip-head cutter and welder→→ spiral accumulator→→forming section(flattening unit +main driving unit +forming unit +guide unit +high frequency induction welding unit +squeeze roller)+ de-burr frame →→cooling unit →→ sizing unit and straightener →→flying saw under computer-control →→ run-out table.
