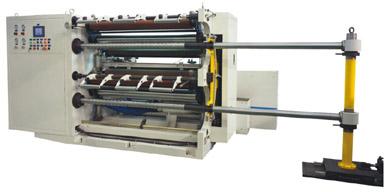

Slitting machine, Automatic Grade : Semi Automatic

Offering Slitting Machine.
Main features
1. Horizontal structure, unwindingrewinding can be completed at double sides.
2. Unwinding reel is clamped with cones; hydraulic device assists to complete the reel loading and LPC system controls the line position of the web.
3. Ultrasonic reel diameter detector is used with residual reel alarming system.
4. Constant tension for unwinding, taper tension for rewinding
5. Imported pneumatic slip-rewinding shaft; setting- length alarm system; automatic two-step machine stop
6. Backpressure reel-pressed cylinder makes rewinding reel tidy and good tightness.
7. Man-machine-interface, CPU centralized control system
8. Humanistic design, convenient loadingunloading
Technical Parameters
Main technical data
Max unwind dia Φ800mm
Max rewind dia. Φ500mm
Reel width 600�1300mm
Slitting width 50�1300mm
Slitting accuracy ±0.3mm
Max slitting speed 300mmin�PE�PVC�200mmin�
Rewind accuracy ±0.3mm
