Taian Huali Import & Export Trade Co., Ltd

Taian, Shandong, China

• MOQ 500 Meter
• quick deliverylow price
• conductorcopper/aluminium
• shealthedPVC
• insulationXLPE
• No. cores1-5 cores
• model numberYJV YJLV

• MOQ 500 Meter
• quick deliverylow price
• insulationXLPE
• conductorcopper
• JacketPVC
• Number Of Flowerlow voltage

• MOQ 500 Meter
• conductorcopper
• insulationXLPE
• quick deliverylow price
• cross section2.5-500mm2
• No. cores1-5cores
• JacketPVC

• MOQ 500 Meter
• Number Of Flowerlow voltage
• insulationXLPE
• portqingdao
• conductorcopper/ aluminum
• JacketPVC
• quick deliverylow price

We offer aluminum xlpe insulation power cable. 1. Cores and sections 1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on. No. Of core and sectional area(mm2) : 1 core 1.5-800 25-800 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200 2 core 1.5-185 25-185 3 core 1.5-400 25-400 25-400 25-400 35-400 50-400 50-400 50-400 4 core 2.5-400 25-400 5 core 2.5-400 25-400 2. Construction: conductor: solid or stranded copper insulation: cross-linked polyethylene (xlpe) or polyvinyl chloride (pvc) filler: polypropylene filament with lapped binding tape binder: binding tape inner sheath: polyvinyl chloride (pvc) amour: galvanized steel wire armored(swa) or steel tape armored(sta) sheath: polyvinyl chloride (pvc) 3. nominal section area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800 4. Operating features: 1)the maximum conductor operating temperature: 90°c during short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250°c environment temperature should be no lower than 0°c for laying the cable. 2)bending radius of the cable: single core cable: non armored cable 20d, armored cable 15d cores cable: non armored cable 15d, armored cable 12d. remarks: d means practical external diameter of the cable 5. Features xlpe insulated power cabledo not has excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat resistance and enviromental stress resistance. Its structure is simple. The long period operating temperature is +90 °c. It is conveninet to use and can be laid with no restriction of different level.

• MOQ 500 Meter
• No cores1-5 cores
• sectional area2.5-500mm2
• insulationXLPE
• JacketPVC
• Number Of Flowerlow voltage
• conductoraluminum

we are offering aluminium wire armored xlpe power cable. 1. standards of the products gb5023-97, jb 8734-98(and enterprise standard)the production standard fo flame retardand, flame resisting, low smoke & halagen wire adopts the national standard of gbt 19666-2005. aluminium wire armored xlpe power cable 2. application it applies to electrical appliances, instrument and telecom device with rated voltage up to and including 450750 volts. the main features of the flame retardant cable or wire is hard to catch on fire or that the continuous burning of cable is very limited when it is on fire. it applies to place with special demands for flame retardant property. flame retardant cable is classified as class a, b, c or d. among the 4 class, class a is the best. while c worst fire-resistance cable can operate normally for some time when it is burning except that it can transmit electrical power under normal condision, it is used in places demanding specially for fire resistance property. clients can select any tapes of cable according to practical needs. 3. main chatactersistics of cable (wire) 1) rated voltage uou 450750 volt, 300500 volt or 300300 volt. 2) permissible continuous working temperature of cable conductor, -for type of cable rv-105°c and bv-105°c, the temperature should be less than 105°c, what's more, the temperature should be not less than 70 °c. 3) ambient temperature should be not less than 0, and permissible bending radius of cable for fixed connecting should be as follows during installation, for o.d less than 25 millimeter, equal to or greater than 4 times o.d.for o.d.not less than 25 millimeter, equal to or greater than 6 times o.d. 4) flame retardant cable should pass the best of bunched cables or wires under fire condition which is described in the stardards of gbt8380.3-2001or iec60332-3. 5) low smoke, low halogen, flame retardant cable should pass the test of flame retardant described in gbt19216.21-2003 or iec

• MOQ 500 Meter
• deliverywithin 15 days
• insulationPVC
• portQingdao

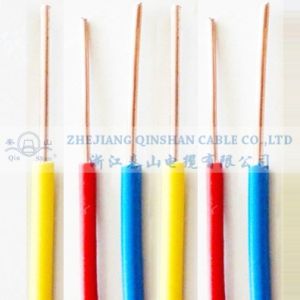

1.This product fit for ac voltage 300500V and below of domestic electrical appliances.of smaller size motoriace tools, of instruments, of various meters and motorized lighting installations. 2. Electric wire has high quality and low price .We can also produce products according to your special requirement. 3. We promise you of the most competitive prices. If you need, we can offer you some samples for your reference. 4. Rated temperature of the wire is 70 centigrade. 5. Finished insualtion core and finished power line are put into the water at the temperature 20+50°C for an hour, they should be able to bear stipulated acsohz, soaked voltagetest at stated. 6.Wire has excellent electric insulation property.mechnical property, non-inflammability, so it is safe and convent in using . 7. If you have any problem about the electrical wire and cable, please feel free to connected with me. 8. Construction: Conductor: Cu( Copper conductor) Insulation: PVC Sheath: PVC ( Polyvinyl chloride) Color: Black, red, white, yellow, GY, or Gray Temperature Rating: 0°C to 90°C

• MOQ 500 Meter
• portQingdao
• quick deliverylow price
• Number Of Flowerlow voltage
• Rated voltage450/750V
• insulationPVC
• conductorcopper

We are offering pvc insulated single electrical wiremn specifications -variety size, national standard -rated voltage: 450750v -prompt delivery, quality assured -manufacture more than 20 years 1. Electrical wire are used indoors, aluminum conductor and pvc insulation 2.we can also supply the copper conductor and pvc insulation electrical wire 3. Range of application:this product is fit a.c rated voltage450750v 4. If you have any problem about the electrical cable and wire, please feel free to connected with me !

• MOQ 500 Meter
• quick deliverylow price
• conductorcopper/aluminum
• jacketPVC
• insulationXLPE
• categorypower cable

We are offering steel tape armoured xlpe cable. Steel tape armoured xlpe cable xlpe insulated pvc sheathed sta armoured power cable standard : iec60502-2bs6622. application: it is used to transmit and distribute power in power transmission and distribution system of 35kv or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of pvc insulated power cable. using features: 1. Rated voltage: uou:3.66kv, 610kv(11kv), 1220kv(24kv), 1933kv, 2635kv(35kv). 2. No. Of core: single core or three cores. 3. The highest allowed operating temperature of conductor for long-term working is 90oc. In short-circuit (max. Long-term is no more than 5 seconds). The highest temperature for conductor is no more than 250oc. 4. D.c. Resistance of the conductor complies with the stipulations of 3.66kv, 610kv(11kv), 1220kv(24kv), 1933kv, 2635kv(35kv). 5. The environment temperature should be no lower than 0oc when lay. Otherwise it should be preheated. 6. The cable is laid without horizontal drop limit. 7. Working frequency voltage test: 3.5uo5min without puncture. 8. Partial discharge test: the discharge volume should be no more than 10pc under 1.73uo for the cable. note: the single core armoured cables are used for d.c. System only. If used for a.c. System, the magnetic isolation should be applied on the steel armoire wires of non-magnetical materials should be used. (cable, power cable, power wire, electric cable, electrical cable, xlpe insulated cable, xlpe insulated power cable, pvc cable, pvc power cable, xlpe cable, xlpe power cable, pe sheathed cable, pe sheathed power cable, insulated cable)
