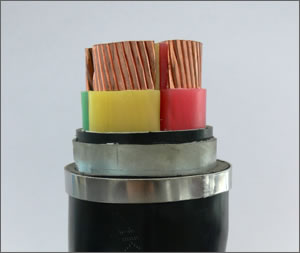

XLPE Copper Armoured Power Cable, Packaging Type : black

We are offering xlpe copper armoured power cable,
1. Cores and sections
1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.
No. Of core and sectional area(mm2) :
1 core 1.5-800 25-800 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200
2 core 1.5-185 25-185
3 core 1.5-400 25-400 25-400 25-400 35-400 50-400 50-400 50-400
4 core 2.5-400 25-400
5 core 2.5-400 25-400
2. Construction:
conductor: solid or stranded copper
insulation: cross-linked polyethylene (xlpe) or polyvinyl chloride (pvc)
filler: polypropylene filament with lapped binding tape
binder: binding tape
inner sheath: polyvinyl chloride (pvc)
amour: galvanized steel wire armored(swa) or steel tape armored(sta)
sheath: polyvinyl chloride (pvc)
3. nominal section
area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800
4. Operating features:
1)the maximum conductor operating temperature: 90°c
during short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250°c
environment temperature should be no lower than 0°c for laying the cable.
2)bending radius of the cable:
single core cable: non armored cable 20d, armored cable 15d
cores cable: non armored cable 15d, armored cable 12d.
remarks: d means practical external diameter of the cable
5. Features
xlpe insulated power cabledo not has excellent electric, mechanical properties,but also has powerful resistance against chemical corrosion,heat resistance and enviromental stress resistance. Its structure is simple. The long period operating temperature is +90 °c. It is conveninet to use and can be laid with no restriction of different level.
