Taike Mining Equipment Co.,Ltd.

China

We are offering air leg rock drill. Ysp45 air leg rock drill designed for operations in medium-hard and hard rock in bore raising.able to drill up-holes and holes 60°to 90°to the horizontal plane .it can also be used for bolt setting. Ysp45 hand held air leg rock drill 1.weight:44kg 2.outside dimension:1420*390*160mm 3.cylinder dia:95mm 4.piston stroke:47mm 5.air leg push stroke:750mm 6.leg cylinder inner dia:74mm 7.work pressure:0.4-0.63mpa 8.air consumption:83l/s 9.impact frequency:47hz 10.rotation speed:350r/min 11.air pressure:0.40~0.63mpa 12.air pipe inner dia:25mm 13.water pipe inner dia:13mm 14.hole drilling dia:34-42mm 15.max deepth:6m 16.shank size: h22*108mm

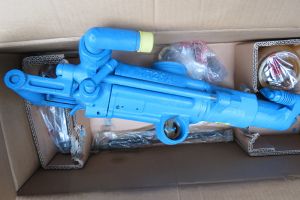

We are offering hand held air-leg rock d. Yt29a hand held air-leg rock dimportant to coal mine, railway traffic, water conservancy and so on. According to the different of space, it can be used with ft160a, ft160c long air leg, ft160b short air leg and ft170 air leg, it also can be fixed on drill carriage and drilling frame. Yt29a hand held air-leg rock drill weight:27 kg2.all length:660mm 3.cylinder dia:82mm 4.piston stroke:60mm5.air consumption:65l/s6.drilling frequency:37hz7.air pipe inner dia.:25mm8.water pipe inner dia.:13mm9.drilling hole dia.:34-45mm10.drilling depth:5m11.shank size:22*108mm12.working pressure:0.4-0.63mp

We are offering air leg rock drill. 7655 air-leg rock drill is rock drilling equipment with high efficiency. It is widely used in rock drilling. It's very important to coal mine, railway traffic, water conservancy and so on. According to the different of space, it can be used with fy200b grease squirt and ft160a(or ft160b, ft160c) air leg, it also can be fixed on drill carriage and drilling frame. 7655 hand held air leg rock drill 1.weight:24kg 2.outside dimension:628*232*207mm 3.cylinder dia:76mm 4.piston stroke:55mm 5.air pressure:0.4-0.63mpa 6.water pressure:0.3mpa 7.air consumption:54l/s 8.impact frequency:37hz 9.air pipe inner dia:25mm 10.water pipe inner dia:13mm 11.hole drilling dia:34-42mm 12.max deepth:5m 13.shank size: h22*108mm

We are offering hand held air leg rock drill. Yt28 hand held air-leg rock drill is rock drilling equipment with high efficiency. It is widely used in rock drilling. It's very important to coal mine, railway traffic, water conservancy and so on. According to the different of space, it can be used with ft160bd short air leg and ft160bc long air leg, it also can be fixed on drill carriage and drilling frame. Yt28 rock drill weight:26kg length:661mm cylinder diameter:80mm piston stroke:60mm working pressure:0.4~0.63mpa impact frequency:≥35hz impact energy:≥63j air consumption:58l/s air pipe inner dia:25mm water pipe inner dia:13mm bore dia.:34~42mm drill shank specification:22*108mm

• Brand Nametianshui

We are offering Hand Held Airleg Rock Drill. YT24 hand held airleg rock drill is rock drilling equipment with high efficiency. It is widely used in rock drilling. It's very important to coal mine, railway, traffic, water conservancy and so on. According to the different of space, it can be used with FT140BD short air leg and FT140B long air leg. YT24 Rock Drill Weight:24Kg Length:678mm Cylinder Diameter:70mm Piston Stroke:70mm Working Air Pressure:0.4~0.63Mpa Impact Frequency:≥31HZ Air Consumption:≤66.7L/S Air Pipe Inner Dia:19mm Water Pipe Inner Dia:13mm Bore Size:34~42mm Drill Shank Specification:22*108mm Rock Drill Hole Depth:5m
