Air Leg Rock Drill

We are offering air leg rock drill. Ysp45 air leg rock drill designed for operations in medium-hard and hard rock in bore raising.able to drill up-holes and holes 60°to 90°to the horizontal plane .it can also be used for bolt setting.

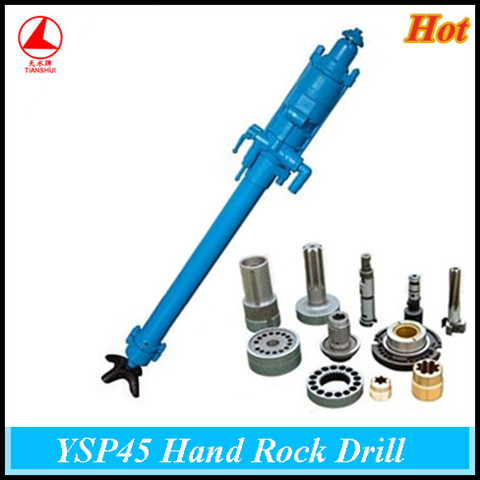

Ysp45 hand held air leg rock drill
1.weight:44kg
2.outside dimension:1420*390*160mm
3.cylinder dia:95mm
4.piston stroke:47mm
5.air leg push stroke:750mm
6.leg cylinder inner dia:74mm
7.work pressure:0.4-0.63mpa
8.air consumption:83l/s
9.impact frequency:47hz
10.rotation speed:350r/min
11.air pressure:0.40~0.63mpa
12.air pipe inner dia:25mm
13.water pipe inner dia:13mm
14.hole drilling dia:34-42mm
15.max deepth:6m
16.shank size: h22*108mm
