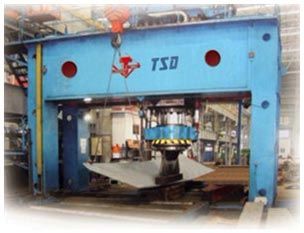

The hydraulic press is an equipment for cold and hot shape processing such as thick plate bending .side bending , rib pressing and ship plates flattering , mainly used for the cold and hot shape processing such as skin shaping alld pressing cavity bulkhead and ship pots etc , and is also the key equipment for thick plate shape processing in the petro-chemical and boiler industries . The principle machine of the product adopts integral single column and combined singlecolumn and combined frame crane with high rigidity body and both of structure of normal press head pressing and turnover pressing of movable press-head and table for meeting demands of various size shape processing accuracy of thick plate . The hydraulic control system is composed of plug-in integrated valve .the speed and the pressure of press head can be adjusted ar-bitrarily with in the prescribed limit of parameter so the pressing process is controllable .the electric control system is controlled by the computer and plc and equipped the whole stroke position collection and checking devices that can realize the digital control of digital heavy load mechanic driving and pressing .parameters so as to keep the forming precision. the hydraulic press is equipped with lifting device and roll-conveying device to keep high efficient shape processing and with hydraulic lock device to prevent the press head form slipping and remote control device.

Technical specifications Type Name UnitY28-25Y28-120Y28-100/180Y28-150/200Y28-100/350Y28-200/315Y28-250/400 Nominal forceKN250120018002000350031504000 Return forceKN 800100015001000 2500 Cushion/ejecor forceKN 800500250010001500 Knockout forceKN 4003155006306301000 Stroke of blank slideKN 50315 Cushion/ejector strokemm220410710570750800800 Cushion/ejecor strokemm 350 600350350 Drawing sliden areaL-Rmm 180 250300300300 F-Bmm4005006307901200 1340 Blank holder slide areaL-Rmm4205606309201200 540 F-Bmm 380 12008001400 F-Bmm 380 1200600600 Cushion areaL-Rmm 510 600 F-Bmm 450 Table areaL-Rmm640500630790120012002000 F-Bmm420600630920120012001500 Daylight of drawing slidemm 6601460870160015001500 Daylight of blank holder slidemm Speed of drawing slideDescnetmm/s1008028016052100100 Pressingmm/s 2040-1014-255-171010 Returnmm/s50120130/20018010050 100 50/100 Speed of drawing slideDescentmm/s 100 100100 Pressingmm/s 50 1010 Returnmm/s 50 100 50/100 Overall DimentsionsL-Rmm1860204023002310440041504950 F-Bmm750720900950250013001500 Heightmm16502860 42504242 110048505290 800 Total PowerKW4152222244444 Remarks .
