Wenzhou Baiji Valve Co.,Ltd

wenzhou, china, China

Design and manufacture standards: api 6d, bs 5351, api 608, asme b16.34 face to face standards: asme b16.10, api 6d, din 3202, connections standards: asme b16.5, asme b16.25, asme b16.47, din 2501, bs 4504 test standards: api 598, ap16d, bs 6755, iso 5208 constructions: two-piece body, three-piece body double block & bleed bi-direction sealing seat and stem sealant injections anti-static device blow-out proof stem fire safe as per api607 full bore, reduced bore operation: lever, gear, electrical actuator, pneumatic actuator.

Material: a105, a182 f316, f304, f316l, f304l, f11, a350 lf2. design & manufacture: api 6d, api 608, asme b16.34, ansi/awwa c507, mss sp-72, bs 5351(en iso17292), bs 6364, bfci 70-2, iso 5211, nace mr0175. face to face dimension: asme b16.10, iso 5752, bs en 558, bs 12982, jis b 2002. connection ends: asme b16.5, jis b2220, iso 7005-1, bs 12627, bs en 1092, asme b16.25, asme b16.11. testing & inspection: api 598, api 6d, api 607, api 6fa, bs 6755, bs 12569, mss sp-61, iso 5208. operation type: manual, worm gear, pneumatic, electric. applicable temperature: -196oc540oc.

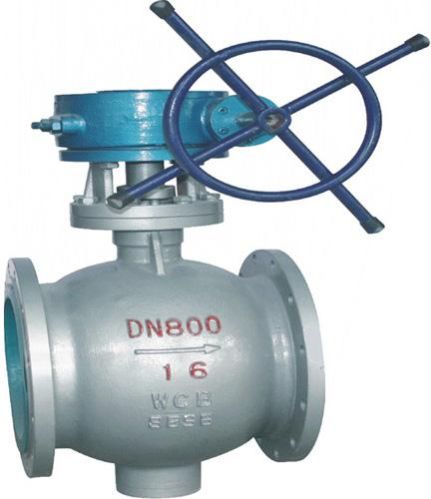

Technical specifications descriptions: horizontal eccentric half ball valvefeatures:valve design steps and the body in the design of structure, steps match very effective way to prevent the sphere and seat happen resistance, seat from wait for a phenomenonthe circulation of large area without flow resistance: because the ball valve opens in cavity flow resistance, no dc channel, won??t appear smooth flow, or jammed formation pressure loss of small, medium not deposition in the body cavity. Switch light: because the eccentric principle, opens the spheroid and seat completely without any contact from open, open torque, turned 90 degrees, convenient operation can be open. According to the different kinds of temperature, medium, the production of various abrasion resistance, corrosion resistance, temperature, etc. Related standards:design and manufacture: api 608face-to-face: asme/ansi16.10inspection and test: api 598flange end: asme/ansi b16.5

D) test and inspection: iso5208, api 6d 2) sizes: 2" - 32", dn50 - dn800 3) pressure rating: class300 - class1500 or pn40 - pn250 4) material: carbon steel, stainless steel, etc. 5) operated by: lever, gear, pneumatic, hydraulic and electric actuator

Second, whole-mounted valve cover design In addition to the valve body, the valve cover, bottom cover and side cover assembly bolts are used, can be easily convertible into a four-way or five way ball valve, and easy installation, removal and maintenance. Third, the high platform, a platform designed with ISO5211 standard design without connecting bracket and bushing, so that the actuator becomes simple.

Pressure rating: class150lbclass1500lb material: a216-wcb, a217-wc6, wc9, c5, c12, a351-cf8, cf8m, cf3, cf3m, cf8c, cn7m, a105, a182-f11, f22, f9, f5, f304, f316, f304l, f316l, f321, alloy-20 design&manufacturing standard: api6d, asme b16.34, api608, mss sp-72, bs5351 structure lenght size: asme b16.10, api 6d, en 558 flange connection size: asme b16.5, (din 2501) butt welding size: asme b16.25 preesure-reference temperature: asme b16.34 check & experiment: api 598, api6d.

Pressure temperature: ansi 16.34 inspect and test: api 598 mterial: stainless steel, wcb, a105 pressure: 150lb -1500lb size: dn 40dn200.
