Wisman High Voltage Power Supply Co.,Ltd.

Xian, China

• MOQ 1 Piece(s)
• Brand NameWisman
• TypeMG
• Power(W)0.5W

We are offering 1000v ~1500v high voltage power. specifications input voltage: 12vdc±1vdc, 100ma typ. Option:-15：15vdc±1vdc , 0.1a maximum , -24：24vdc±1vdc , 0.1a maximum , nominal voltage range: 7vdc to 15vdc. input current: (typical) disabled: 30ma no load: 90ma full load: 250ma typ efficiency: 80-85%, typical voltage re gulation: line:

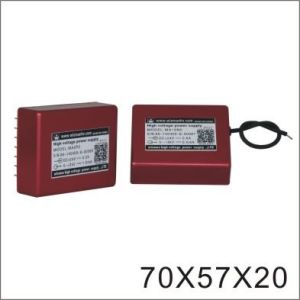

Applications apd(avalanche photo diode) electron multiplier hibrid photo detector bar code scanners detectors cellular electrophoresis detectors e-chuck(electrostatic chuck) esd(electrostatic discharge testing) flow cytometry fpd(flat panel ditector) the ma serise ie a regulated, versatile, modular hv power supply used in a wide variety of applications including mass spectrometry and electron microcopes.from the oem to the laboratory, they are an excellent choice when you require a highiy stable output.output can be controlled using either an external control voltage or external variable resistor.with a diverse range of models up to 30kv60w, you will find something for nearly every requirement. Specifications input voltage: +24vdc±2v. Other input voltages available on special order. Input current: less than 0.3a at full output. Output voltage: continuously adjustable over entire output range. Available in either positive or negative output polarity. See table for voltage ranges. Output voltage control: controlled by either: 1) internal ten-turn potentiometer 2) external potentiometer 5k to 100k (set internal pot. To max.) 3) remote differential voltage programming (0 to +10v gives 0 to full output). Accuracy 0.1%. Remote control: remote programming common mode range: 0vdc to +10vdc line regulation: 0.001% for input change of 10%. Load regulation: 0.001% for 0 to full load change(at maximum voltage). Temperature coefficient:better than 25ppm°c.

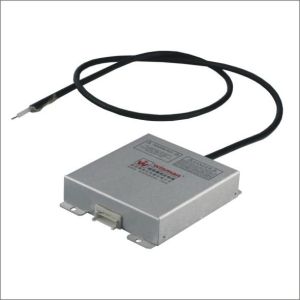

Spectrometry photomultiplier tubes(pmt) microchannel plates(mcp) proportional counters gm tube avalanche photo diode (apd) summary wisman's pm series of six-sided shielded are high performance products designed with hybrid topology of linear and switch mode power conversion techniques delivering lower noise with higher efficiency.it is applied to photomultiplier tubes(pmt), solid state detectors, ultrasonic transducers and so on.pm series can control by inside potentiometer and outside potentiometer or computer.an optional rs-232 or rs-485 is available.pm module is available as either a positive or negative supply .that is ideal for oem applications. specifications input voltage: +24vdc- +30vdc@700ma maximum, option ±12vdc ~ ±18vdc @700ma maximum. Input current: less than 700ma at full output. Output voltage:0.5kv, 1kv, 1.5kv, 2kv, 3kv, 4kv, 5kv, 7.5kv, 10kv, output power:2w, 2.5w, 3w, 4w, 5w, 6w, 8w, 10w, output voltage control: 1) internal ten-turn potentiometer 2) external potentiometer 5k to 100k (set internal pot. To max.) 3) remote voltage programming (0 to +10v gives 0 to full output). Accuracy 0.1%. Remote control: remote programming common mode range: 0vdc to +10vdc line regulation: 0.001% for input change of 5%. Load regulation: 0.001% for 100μa to full load change(at maximum voltage). Temperature coefficient:better than 10ppm°c.

Summary the za range is a unique family of high voltage power supplies, extending the operation and versatility of wisman high precision series. The za units feature very fast slewing and settling t imes, together with the ability to slew cleanly through zero. With a differential control input, they opera te like a high voltage amplifier with very tight temperature co-efficient of

• MOQ 5 Piece(s)

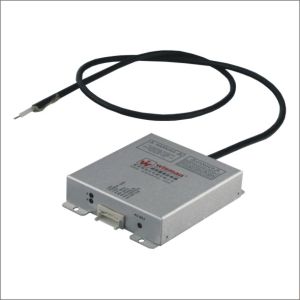

Summary wismanï¼�s pra modular high voltage power supply is ideal for oem usage. It is specifically designed to meet the needs of applications requiring a hot switched reversible output voltage. The output polarity of the unit can be quickly and safely reversed via the polarity control signal provided on the interface connecter. Both the output voltage and current are fully adjustable via ground referenced remote programming signals such that 0 to 10vdc corresponds to 0 to 100% rated output voltage and current. remote motioning functionality is provided by voltage and current test points such that 0 to 10vdc corresponds to 0 to 100% rated voltage and current. Additionally remote polarity and mode indicators provide a compre-hensive overview of power supply operation. an optionalusb 2.0ã��rs-232 or rs-485 is available . Specificationsï¼� input: +24vdcâ±10% . output: seeâ��pra selection tableâ�� polarity: auto reversible via command power: 10 watts, maximum voltage regulation: load: 0.01% of output voltage no load to full load. line: â±0.01% for â±10% change in input voltage. ripple: 0.1% vp-p stability: 0.02% per 8 hours after 12 hour warm-up. Temperature coefficient: 25ppm environmental: operational: 0â°c to +40â°c storage: -40â°c to +85â°c humidity: 10% to 85% rh, non condensing cooling: free air convection dimensions: 0.98â��h x 3.94â��w x 4.96â��d (25.00mm x 100.00mm x 126.00mm) interface connector: 25 pin male d connector

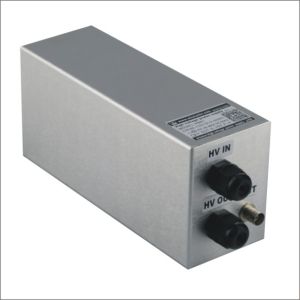

Power（w）：0 maximum output voltage（kv）：5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60 introduction： 1.voltage test unit 5kv~60kv 2.temperature coefficient of 10ppm ℃ 3.0.5%, 0.25%, 0.05%, 0.01% accuracy optional 4.metal shell, six-sided shielding wisman's v6 series is a unit of high-voltage special the value test for the voltage, it is the value used for the test voltage of the dc high voltage power supply, v6 series has a variety of voltage levels optional. Temperature drift 10ppm, accuracy of 0.5%, 0.25%, 0.05%, 0.01% can option, the use of high voltage power supply is one of the essential test tool for engineers. Typical applications dc high voltage power supply testing, long-term high-voltage power system voltage stability analysis.

• MOQ 5 Set(s)
• Brand Namewisman
• Input Voltage+5vdc±2%
• Country of Originchina

• MOQ 5 Piece(s)

Specificationsï¼� input: 24vdcâ±10% , 3.0a maximum . Output: 6kvã��8kvã��10kvã��15kvã��20kvã��25kvã��30kv 7 models maximum output voltage is available. 1.5wã��6w ã��10w ã��20wã�� 30w ã��40w 6 models maximum output power is available. Voltage control: localï¼�internal multi-turn potentiometer to set voltage from 0 to full output voltage. remoteï¼�0 to +10vdc proportional from 0 to full output voltage. Emission control: localï¼�internal potentiometer to set beam current between 0 and full output current. remoteï¼�0 to +10vdc proportional from 0 to full output current. Filament supply: current: 0-3.5a, adjustable limit. voltage: 5.5 volt limit. Voltage regulation: load: 0.001% of output voltage no load to full load. line: â±0.001% for â±10% change in input voltage. Current regulation: load: 0.001% of output current from 0 to rated voltage. line: â±0.001% for â±10% change in input voltage. Ripple: 0.01% p-p of maximum rated output voltage. environmental: operational: 0â°c to +50â°c temperature coefficient: â�¤25ppmâ°c , voltage and current. Stability: â�¤0.01%hour, 0.02% per 8 hours after a 12 hour warm up. Voltage and current monitors: 0 to +5vdc proportional from 0 to rated output.accuracyâ±1% dimensions: 2.56â��h x 4.53â��w x 5.91â��d (65.00mm x 115.00mm x150.00mm)

• MOQ 5 Piece(s)
• Brand Namewisman
• Input Voltage86vac-256vac
• Country of Originchina

Specifications input:86~256vac , maximum 5.0a . Output:0.5~50kv maximum output voltage option, 1.5w~100w power option. Stability:0.02% per 8 hours after 12 hour warm-up. Temperature coefficient:â�¤25ppmâ��. Ripple:0.01% p-p of maximum rated output voltage. Voltage programming: front panel: voltage are continuously adjustable from 0 to maximum voltage by internal potentiometers. External remote:voltage are continuously adjustable from 0 to maximum voltage by 0 ~ +10vdc external voltage. Current programming(option): front panel: current are continuously adjustable from 0 to maximum current by internal potentiometers. External remote :current are continuously adjustable from 0 to maximum current by 0 ~ +10vdcexternal voltage. Voltagecurrent monitor:0 ~ +10vdc volt corresponds to 0 to maximum output, zout=11kî©, accuracy:â±1%. Remote voltage monitor:jb2 contain a 0 ~ +10vdc voltage signal, it can connect digitalor index display. Voltage load regulation:0.01% ( no load to full load change). Voltage line regulation:â±0.01% (input voltage line changeâ±10%). Current load regulation:0.01% ( no load to full load change). Current line regulation:â±0.01% (input voltage line changeâ±10%). Connector: hv output connector:series output option(1m); input connector:db15 connector, contain control and monitor signal. operating temperature:0℃~+50℃. Storage temperature:-40℃~+85℃ dimensions :5.51”h x 5.11”w x 9.45”d(140.00mm x 130.00mm x240.00mm). Weight:4.65kg.
