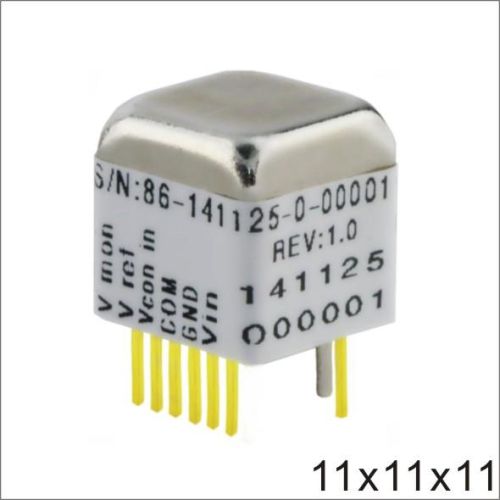

High Power Supply Micro-modules MM, Brand Name : wisman

Summry
the mm serise ie a regulated, versatile,modular high voltage power supply used in a wide variety of applications including mass spectrometry and electron microcopes.from the oem to the laboratory,they are an excellent choice when you require a highiy stable output.output can be controlled using either an external control voltage or external variable resistor.with a diverse range of models up to 2kv1w,you will find something for nearly every requirement.
Specifications
input voltage :
+5±0.5v(option:-12:12v±1v,-15:15v±1v,-24：24v±1v)
input current:
with no load:5ma
with full load:50ma
variable output voltage range:
50v,100v,200v,300v,400v,
output power:0.1w.
Regulation:
line regulation :±0.01%
load regulation :±0.01%
stability: 0.01%hour 0.03%8hour.
Ripple noise (p-p):
5mv(maximum voltage and maximum current)
output voltage control:
by external controlling voltage (0 v to +5 v)
controlling voltage input impedance:5kω
reference voltage output:
+5.0 (with 50 kω external potentiometer)
output voltage rise time : 50ms(0-99%)
temperature coefficient: 10ppm℃
protective functions:
units protected against reversed power input, reversed essivecontrollingvoltage input, continuous overloading short circuit in output
environmental:
temperature range:
operating: -40°c to 50°c case temperature
storage: -55°c to 85°c, non operational
humidity:
10% to 90%, non-condensing.
Dimensions:
0.43”l x 0.43” w x 0.43”h
(11mm x 11mm x 11mm)
weight:
0.7oz. (20g), typical
