Wuxi Shenghong Machinery Co., Ltd

Wuxi, China

• MOQ 1 Set(s)

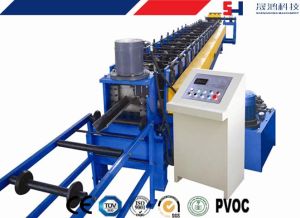

We are offering Technical parameters 1. Matching material: steel coil 2. Material thickness range:1.5-3.0mm 3. Main motor power: 15 k w 4. Forming speed: 4-8mmin(include punching and cutting time) 5. Hydraulic power: 5.5kw 6. Quantity of stands: about 18 stands 7. Shaft Material and diameter: ￠70mm, material is 40Cr 8.Material Of The Stations: Support side plate 9.Tolerance: 3m+-1.5mm 10.Way Of Drive: 1.5 inch single chain 11. Controlling system: PLC 12. Total weight: about 10 Tons 13. Voltage: 380V 3phase 50 Hz 14.Size of the machine: L*W*H 9 m*1.2m*1.6m 15.Material of forming rollers: Cr 12 16.Material of cutter blade: Cr 12 mould steel with quenched treatment 58-62℃

We are offering Technical parameters 1. Matching material: stainless steel 2. Material thickness range:1.5-2.5mm 3. Main motor power: 45 KW with JZQ reducer 4. Forming speed: 6-10mmin(include punching and cutting time) 5. Quantity of stands: about 20 stands 6. Shaft Material and diameter: ￠85mm, material is 40CR 8.Material Of The Stations: pig iron 9.Tolerance: 3m+-1.5mm 10.Way Of Drive: Gear box 11. Controlling system: PLC 12. Total weight: about 25 Tons 13. Voltage: 380V 3phase 50 Hz 14.Size of the machine: L*W*H 13m*1.5m*1.2m 15.Material of forming rollers: CR12(better material than GCR15), coated with chromed treatment 16. Cutting: fly saw tracking cut. 17.Surface treatment of rollers：mirror polished 18.Spacer treatment：plating 19.The tolerance: 1.the length will be +- 1mm 2. the holes distance will be +-0.5mm

We are offering this pu sandwich panel production line is an automatic production line. In the pu sandwich panel producing procedure, the product line can continuously produce sandwich panel with pu as its core material. The liquid state raw materials were continuously injected into the middle of two steel panels and reacting、foaming、solidifying in the double-rubber belt, the pu sandwich panel could be cut out automatically according to the required length for users.

• MOQ 1 Set(s)
• Production Capacity15
• After-Sales Service Providedyes
• Country of OriginChina
• Total Carbohydrate1 year

• MOQ 1 Set(s)
• Brand NameShenghong
• After-sales Service Providedyes
• Total Carbohydrate1 year

• MOQ 1 Set(s)
• Country of OriginChina

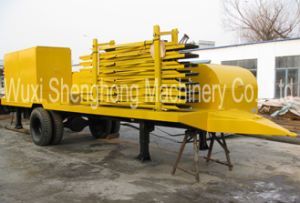

We are offering � Dimension size: 8900mm X 2230mm X 2300mm (Single axle & 4 tires) � Total Weight: About 10 ton � Bending Leaf: 10mm thickness, processed by CNC � Cutting blade material:Cr12Mov, heat treatment � Cutting type: Mechanical Cutting � Forming type: Roll formed � Total power:18.9kw Main motor power:7.5kw Bending power:3.0kw+1.1kw*2 Hydraulic cutting power: 4.0kw Seamer power:1.1kw+1.1kw � Roller material:45# high quality steel, quenched HRC 55�65, hard chrome plating � Shaft Material:45# high quality galvanized steel � Forming Station:14 stands � Steel coil: Feeding width is 1000mm and effective width is 680mm, thickness is 0.6-1.5mm � Working Speed: Forming speed is 15mmin Bending speed is 13mmin Seaming speed is 16mmin � Suitable Span: 5�40m
