Wuxi Bolcom Medical Machinery and Plastic Co. Ltd

Wuxi, China

● Vented spike ● Air-inlet filter with cap ● 20drops=1ml ● Flexible drip chamber ● 15μm filter ● Length of tubing:170 ● Precision flow regulator ● Latex Y-injector ● Luer Lock ● For gravity use

• Features as follows ① Spike: material：PC ② Spike protector : material：PP ③ Air vented（Blue）material：PE with 0.25μm pore size of the hydrophobic membrane ④ Drip chamber：material：PVC ; specification：57mm ⑤ Infusion filter：medical grade PA6-6 with ABS frame, its specification：φ15.3×3.7mm； wire diameter of monofilament：48μm；mesh pore size：15+3/-2μm；Filtration rate：85% ⑥ Flow rate：For the infusion set with 20drops/ml, The filter shall deliver no less than 1000ml of sodium chloride(Quality thickness Nacl=9g/l) at(23±2)℃ in 10mins with a pressure difference of 10kPa ⑦ Tubing length：PVC, 1.50m ;Tube I.D.:3.0mm, O.D.:4.1mm;The short tubing pathway：200mm ⑧Needless Y-injector ⑨ Roller clamp: specification：57mm；material：ABS；the pathway can be hung by this design ⑩ Male luer lock connector：material：ABS with 6% luer lock taper conforming to international standard ⑾ Hypodermic needle：OD, 0.80mm, 21G, Green • Options Available - With or without air vented spike -With or without “Y” injection port：7 kinds available(latex or latex-free) - Roller clamp：45mm、48mm - 5 kinds of luer lock adaptor and 2 kinds of luer slip available

Item code:ts01 number of ways:4(360°) handle type:t-handle femaleluer lock port:2 fixed male luerlock port:1 ⑴.body material :pc⑵.luer lock material: abs⑶.no leakage under pressure: 150psi⑷.handle material: pe⑸.handle color: blue, red and white are available.

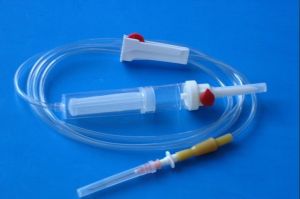

• Features as follows (1)Spike：material：PC (2) Spike protective cap：material：PP (3) Air vent(Red)：material：PE with 0.25μm pore size of the hydrophobic membrane(4) Drip chamber：material：PVC；Specification：57mm, 20drops/ml (5) Blood tubular filter：mesh material: medical grade PA6-6；plastic frame：ABS；Specification：φ17.3×52mm Wire diameter of monofilament：100 ±10μm, Pore size：200±20μm；Filtration rate: shall be no less than 85% (6) Flow rate: The filter shall deliver no less than 1000ml of blood at(23±2)℃ in 30mins with a pressure difference of 10kPa and it shall also deliver no less than 500ml of blood in 2mins under a pressure difference of 30kPa above atmospheric pressure. (7)Assembly method：Injection welding (8)Tube length：1.5m, PVC；tube I.D.:3.0mm, O.D.:4.1mm; the length of short tube: 200mm (9)Y injection port：Latex (10)Flow regulator：material：ABS；Specification：57mm , the pathway can be hung by this exquisite design (11)Male luer lock connector：ABS with 6:100 luer lock taper conforming to international standard (12)Protective cap of male luer lock：PP (13)Hypodermic needle：304 stainless steel, its specification: OD 1.20mm;18G, Pink；its length：38mm(as your specific requirement) • Options Available - With or without air vented spike; - With or without hypodermic needle; - With or without “Y” injection port:：7 kinds available( latex or latex-free); - Flow regulator：material：ABS ；48mm、45mm available - 5 kind of Luer lock connector and 2 kinds of luer slip available

Common Feature Clear, Soft, Cylindrical and Calibrated Measured Volume Chamber with Bold Graduation Etc chamber Injection Port Allows Medication to Be Injected Into Burette Chamber for Medication Mixture chamber Vent Allows Air to Enter Chamber Through Hydrophobic Membrane to Prevent Solution Contamination precision Flow Regulator for Accurate Dispensing of Solution and Precise Flow Control automatic Shut Off Valve Prevents Air Trapping in the Fluid Line Once the Measured Volume Chamber is Empty and It also Indicates the Level of Liquid. disc Filter in Micro Drip Chamber and Bacterial Retentive Air Inlet air Vented Spike 15micron ['maikré�n] Fluid Filter soft and Kink Resistant Pvc Tubingtube Length : 150, 180, 200 Cm burette Sizes Available : 100 Ml, 150 Ml Option Available - Hanger - "y" Injection Port (latex or Latex - Free) - Luer Lock or Luer Slip - Automatic Shut Off Valve (latex or Latex Free) - Needle - Air Vent - Needle Free 'y' Site - Dehp Free Tube
