XiAn Xiangong Import Export Trade Co,.Ltd

Xian, China

General information   total weight  5800 kg overall dimension  9000x2300x2900 mm turning radius  5000 mm                     backhoe bucket capacity  0.3 cbm loading bucket capacity  1.0 cbm fuel consumption  224 (gkw.h) wheelbase  2600 wheel tread  1160 ground clearance  260 mmmodel  yto no. Of cylinders, type  4 cylinders in line, water cooled, turbo charged bore and stroke  102x120 (mm) displacement 3.261l rated powerrotating speed 74.9kw 2200rpm transmission system    hydraulic torque converter  xiniu axle kaichuang brand drive method 4x2 or 4x4 speed    gears  4 forward 1 reverse max. Speed  40kmh hydraulic system    hydraulic pump  single gear pump flow rate  126 lmin pilot joystick handler  jeil brand (import from south korea) main valve ruilong brand  pilot pump  gear pump voltage  24 v front wheels (size & ply rating)  9.00-20 rear wheels (size & ply rating)） 9.00-20 diesel fuel tank  120 l hydraulic system fluid  125 l backhoe part    backhoe bucket width  560 mm backhoe bucket weight  185 kg maximum outrigger width (extended)  2400 mm minimum outrigger width (transport) 2020 mm loader part    bucket width  2000 mm bucket weight  260 kg operating range    loader    maximum bucket reach 3500 mm maximum loading height  3200 mm maximum loader dumped height 2550 mm maximum digging depth 15 mm backhoe    boom length 3100 bucket arm length 2100 maximum dumping height 4390 mm maximum bucket reach 6080 mm maximum digging depth 3400 mm maximum digging distance 5800 mm

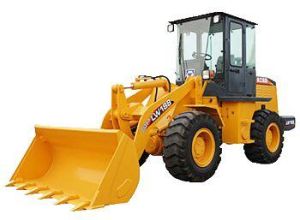

Dimension(l*w*h) 5820×1960×2850mm bucket capacity 0.9m3 rated load 1.8t dumping clearance 2700mm dumping reach 900mm breakout force 50kn wheel base 2200mm tread 1490mm engine model ytr4105g91 rated engine power 55kw rated engine rotation speed 2400rmin total hydraulic cycle time 10s tyre size 1670-20 total weight 5.4t.

We are offering Model XE60 Bucket capacity m3 0.23 Standard bucket width mm 700 Operation weight kg 5, 920 Dimension(in transportation) Overall length mm 5, 850 Overall width mm 1, 885 Overall height mm 2, 584 Min. clearance mm 369 Engine Model 4TNV94L Total displacement L 3.054 Rated output power KWrpm 392200 Digging performance Max. digging height mm 5, 660 Max. dumping height mm 3, 970 Max. digging depth mm 3, 830 Max. vertical digging depth mm 2, 680 Max. digging radius mm 6, 130 Boom deflection angle ° 　 Min. slew radius mm 2, 450 Min. rear slew radius mm 1, 650 Bucket digging force kn 42.5
