Washers

We offer the best product range of Beveled Washer, Flat Washer, Spring Washer, DIN 9250 Lock Washers and DIN 25201 Lock Washer.

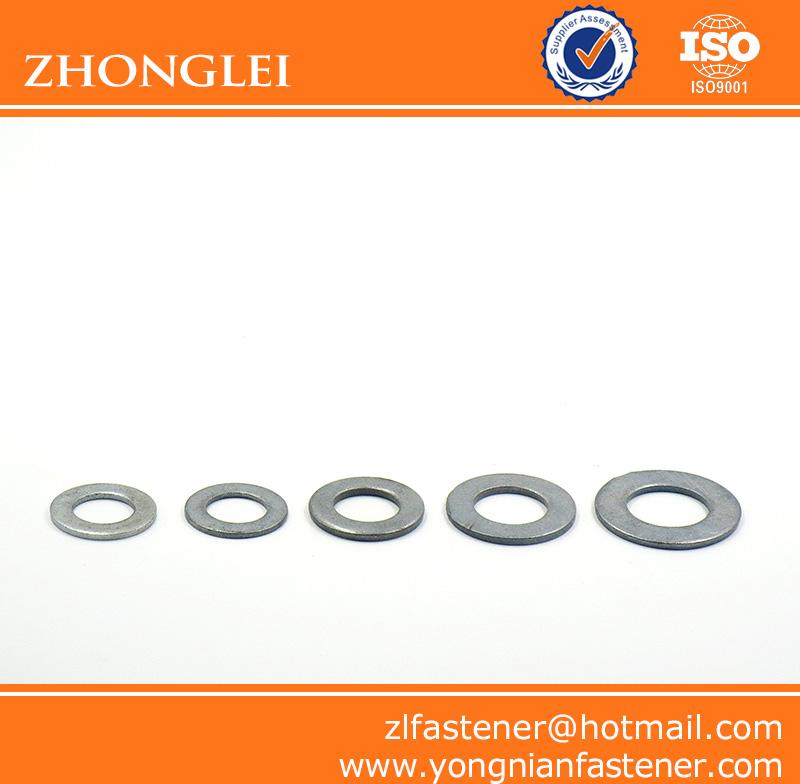

Flat Washer

₹ 45.25 / Piece Get Latest Price

Min. Order (MOQ) 10000 Piece(s)
Country of Origin Hebei China

We are offering flat washer.A washer is a thin plate (typically disk-shaped) with a hole (typically in the middle) that is normally used to distribute the load of a threaded fastener, such as a screw or nut.Other uses are as a spacer, spring (belleville washer, wave washer), wear pad, preload indicating device, locking device, and to reduce vibration (rubber washer).Flat washers are used to increase the bearing surface of a nut or fastener's head thus spreading the clamping force over a larger area.They can be useful when working with soft materials and oversized or irregular shaped holes.Flat washers are also known as plain washers. Size: m6-m48other sizes are available upon requestod: as per sizethickness: as per sizematerial: steelgrade: 4.86.88.810.912.9finish: black oxidezinc plated (galvanized)hot dip galvanized (hdg)other kinds of surface treatment are available upon requesttechnical info: din 125

Additional Information:

Payment Terms : Western Union

Packaging Details : Standard Packing.

Delivery Time : Within 20 days after confirming the deposit.

View Complete Details

Ask Latest Price & Details

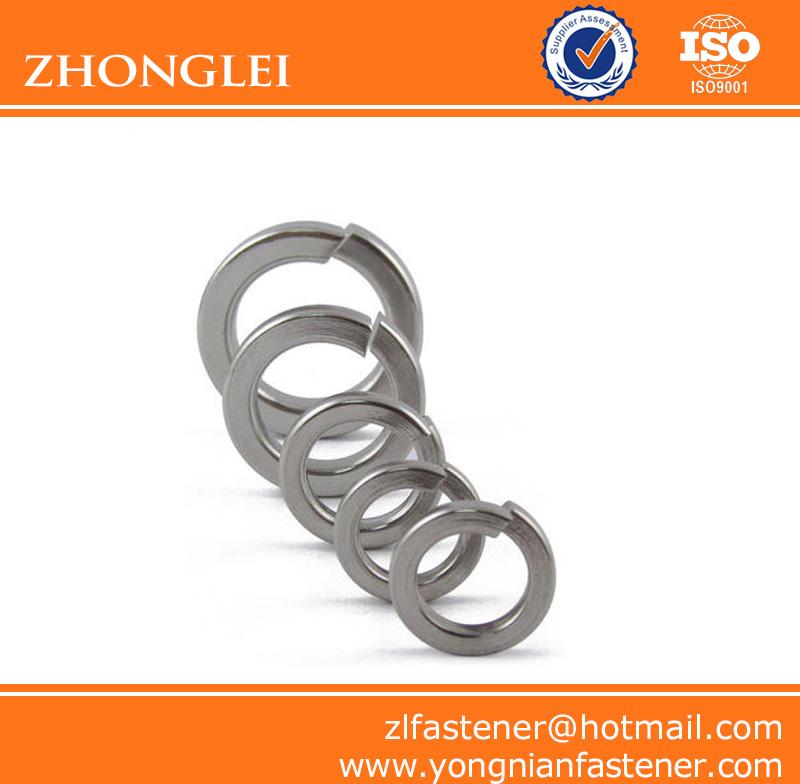

Spring Washer

₹ 45.25 / Piece Get Latest Price

Min. Order (MOQ) 10000 Piece(s)
Country of Origin Hebei China

We are offering spring washer.A split washer or a spring lock washer is a ring split at one point and bent into a helical shape. This causes the washer to exert a spring force between the fastener's head and the substrate, which maintains the washer hard against the substrate and the bolt thread hard against the nut or substrate thread, creating more friction and resistance to rotation.Spring washers are a left hand helix and allow the thread to be tightened in a right hand direction only, i.e. A clockwise direction. When a left hand turning motion is applied, the raised edge bites into the underside of the bolt or nut and the part that it is bolted to, thus resisting turning. Therefore spring washers are ineffective on left hand threads and hardened surfaces. Also, they are not to be used in conjunction with a flat washer under the spring washer, as this isolates the spring washer from biting into the component that it is fastening. Where a flat washer is required to span a large hole in a component, a nyloc nut (nylon insert) must be used. Size: m6-m48other sizes are available upon requestmaterial: steelgrade: 4.86.88.810.912.9finish: black oxidezinc plated (galvanized)hot dip galvanized (hdg)other kinds of surface treatment are available upon requesttechnical info: din 127

Additional Information:

Payment Terms : Western Union

Packaging Details : Standard Packing.

Delivery Time : Within 20 days after confirming the deposit.

View Complete Details

Ask Latest Price & Details

Beveled Washer

₹ 45.25 / Piece Get Latest Price

Min. Order (MOQ) 10000 Piece(s)

We are offering beveled washer.Beveled washers are square and while one bearing surface is flat, the other has an oblique (sloping) angle. Used in structural applications, they are designed for leveling and shimming purposes and are commonly used when bolting through the flanges of i-beams.Beveled washers are also known as: hillside washers. Size: m6-m48width across flats: as per sizematerial: steelgrade: 4.86.88.810.912.9finish: plainblack oxidezinc plated (galvanized)hot dip galvanized (hdg)other kinds of surface treatment are upon requesttechnical info: din 434din 435din 6917din 6918

Additional Information:

Payment Terms : Western Union

Packaging Details : Standard Packing.

Delivery Time : Within 20 days after confirming the deposit.

View Complete Details

Ask Latest Price & Details
