Yuncheng Hongjian Technology Development Co.,Ltd

Yuncheng City, China

• MOQ 1 Set(s)

We offer copper polishing machine. Copper polisher is the new model that developed on the rich experiences of designers and modern electromechanical technique.to keep the precision and the stability of the polisher-head.our company makes the guiding of the polisher-head forward and backward by beeline guide rail.the controlling parts of equipment are adopted operating module to make the operation more convenient.the equipments are dealt with complete seal of the whole to keep the working environment clean and comfortable. Then new full automatic numerical control model that developed by the rich experiences of charactersã¯â¼ï¿½ (1).high efficiency:operating module control with high integration level and cnc control make nearly all the operations in this heart. (2).long life-span:stringthening seal main machine bed to ensure the intensity of the whole equipment (3).the rotate speed of cylinder and rubber wheel is adjustable. (4).the special vertical dusting structure makes the dusting affect better, its floor space smaller and your working environment cleaner. (5).the guide rail of the polisher-head is with dusting process to prevent dust from entering the inside of guide rail and effecting the precision. (6).the surface of the polished cylinders shining like mirror

• MOQ 1 Set(s)
• BLUERED

We offer automatic electroplating plant. Automatic electroplating plant is improved on the first generation auto plating line, it is developed on the rich experiences of designers and numerical control technic. The separated tanks are controlled by plc system and with the text display system; all tanks are contacted together and controlled with the console touch screen operation system.it is high working efficient, but need fewer operators and smaller occupy space. Characters� (1).high automatization, cylinder is automaticly transferred by the travelling crane;fully automatic loadunload cylinder system, controlled by the general console. (2).chrome polisher also merged into the auto plating line (3).less sealing tache, simply cylinder loading system (4).1 worker can control the whole plating line; the producing efficiency improved more than 50%. Machine capability capacity of cylinder length:300-2300(mm) capacity of cylinder diameter:90-450(mm)

• MOQ 1 Set(s)

We offer gravure proofing machine . Proofing machine is especially designed for checking the quality of a newly made gravure cylinder before assembling it into the production line.it is equipped with cylinder pneumatic clamping , clockwise or counter-clockwise rotation, rubber roller positioning and movement pneumatic control, and also blade lifting, pressure and angle adjustment system, photo focusing lens, 14 inch monitor, fine tuning of cylinder position so as to guarantee satisfactory printing and precise registration. main technical parameters dimension ( l x w x h ) 3180 x 1500 x 1200 mm weight 4200 kg power supply 4 kw press roller diameter φ500 printing press pneumatic cylinder pressure 3-4 kgcm2 rubber coating width 1400mm scraper adjustment manual adjustment rubber coating thickness 3mm angle adjustment manual adjustment max.printing width 1400mm drive power 3kw, 120-1200 rpm cylinder length 420-1400mm power source 3-phase ac 380v, 50hz cylinder diameter 115-350mm pneumatic source pressed air 7kgcm2 , flux 0.3m3 printing speed 7-40mmin customer responsibility air compressor

• MOQ 1 Set(s)

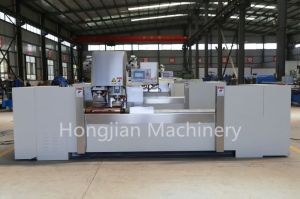

Characters 1.high efficiency:compared with single head copper grinder, this machine just once load the cylinder, then the rough grinding and fine grinding can be finished .no need to replace the grinding stones and load unload cylinder often 2.plc control system and touch screen operation system, more easily and simply to operate 3.strengthened seal main stander ensures the intensity of the whole equipment and the stander against transmo-grification, which improves the resistance of shock 4.the rotation speed of cylinder and the grinding stone, and the moving speed of tailstock are adjustable by frequency conversion.so high working precision.

• MOQ 1 Set(s)

We offer chrome polishing machine. The new full automatic numerical control model that developed by the rich experiences of designers and modern brainpower numerical control technique. It inherits the boon and practicality from the former one and work out the former disadvantages like low integration level, low efficiency and operators can not work offline, it has many input widows of technics parameters to make operators work off line. The machines are economical, practical and efficient. Characters： (1).high efficiency:operating module control with hight integration level and cnc control make nearly all the operations in this heart. (2).high precision:the adoption of ball beating guide rail to keeps the tolerance of moving between head and tailstock about 0.02mm and ensures the stability of wheel head and tailsctock during polishing. • (3).high automatization:it has many modes to choose.such as automatic polishing mode.setting. (4).program parameter mode, manual polishing mode and servicing mode.you only set cylinders, then the left work will be finished by the machine.

• MOQ 1 Set(s)

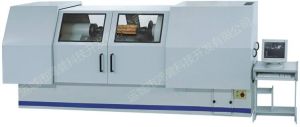

We offer engraving machine. Hjddj engraving machine series are used in the packaging of plastic, paper, room decoration, textiles, wood, packet, leather. Its engraving system is controlled by industrial pc, plc, sbc and the combination of hardware & software. The advantages are simple structure, stable running, and high precision. Performance feature： 1. Hjdd run steadily and high engraving efficiency with worldwide outstanding and nice parts 2. Clear outline and plentiful arrangement 3 window xp operation system and friendly operation interface. 4. Low costs of maintenance and simple maintenance and repair 5. Load different axis diameter cylinders model hjdd-1315 hjdd-2015 hjdd-3015 hjdd-3025 cylinder length 1300mm 2000mm 3000mm 3000mm cylinder diameter 1500mm 1500mm 1500mm 2400mm weight 5.2t 6.5t 10t 12t dimensions 3800*1000*1500 5100*1320*1600 6300*1320*1600 6300*1320*1650 alternatingcurrent ac380 ac380 ac380 ac380 frequency 50hz 50hz 50hz 50hz
