Beverages Filling Machine

Our Complete range of products are Juice Filling Machine, Fruit juice filling machine 3-1 unit, Juice hot filling machine 3-1 unit, Beverage Juice Filling Machine and Fruit Juice Filling Machine.

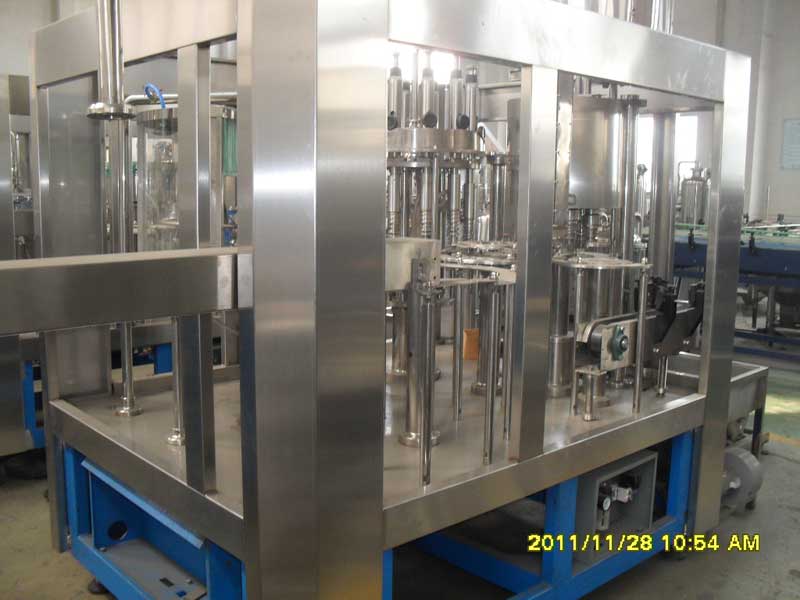

Juice Filling Machine

₹ 3.60 Lakh / 16000 16000 Set Get Latest Price

Min. Order (MOQ) 1 Set(s)
Material SS304
Model RCGF16-12-6
Productivity capacity 10 sets/month
Productivity 2000-4000BPH
Water consumption of washing bottle 800
Spraying position 5
Dripping bottle position 3
Gas consumption 0.3
Total power 4.23
Total weight 2000
Suitable bottle PET/Barrel/Glass/can bottle
Shipping terms FOB CIF

We Offer Juice Filling Machine.juice hot filling line Features: 1) The machine has compact structure, complete control system, easy operation and high degree of automation. 2) To change bottle shape, the operator only needs to replace the star-wheel, inlet bottle screw and arc guide plate. 3) The parts contacting media are made from 316L and have no process blind angles to enable easy cleaning. 4) High speed filling valve, guarantees liquid has precise level and no waste is incurred. 5) The capping head applies a constant magnetic torque device to secure capping quality and prevent damage to the bottle cap. 6) The control system has the function of control producing speed, cap shortage detection, bottle block auto stop and production counting. 7) The machine applies a highly effective cap arranging system that has complete self control and protective device. 8) The machine is equipped with a complete overload protection device that can secure equipment and the operator effectively. 9) Main electric components and pneumatic components apply world famous brand products. 10) The machine's operation is controlled by an advanced touch-screen that can Fulfill human-machine communication

Additional Information:

Payment Terms : L/C, T/T, Western Union,

Packaging Details : Wooden case, according to your needs

Delivery Time : 30-40 working days

View Complete Details

Ask Latest Price & Details

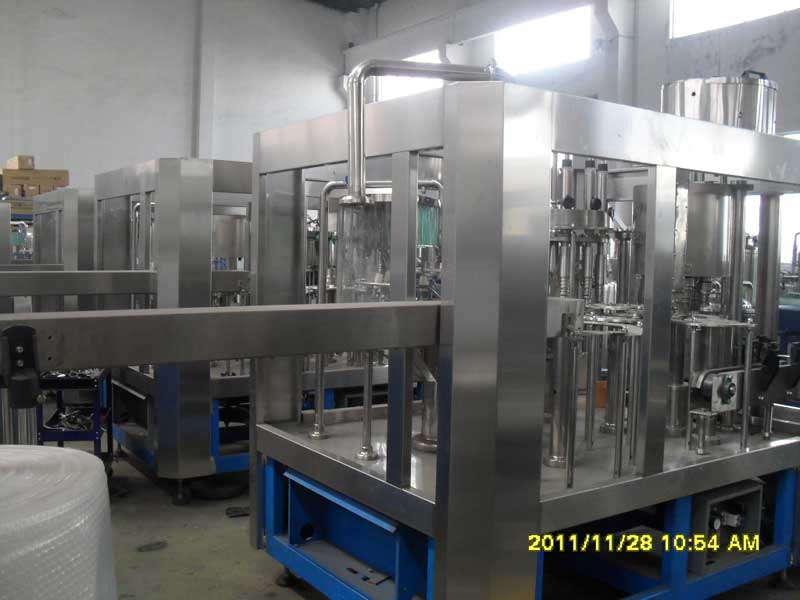

Fruit Juice Filling Machine 3-1 Unit

₹ 3.60 Lakh / 160000 160000 Set Get Latest Price

Min. Order (MOQ) 1 Set(s)
Material SS304
Model RCGF18-18-6
Productivity 4000-6000BPH
Productivity capacity 10 sets/month
Shipping terms FOB CIF
Water consumption of washing bottle 1600kg/h
Spraying position 5
Dripping bottle position 3
Gas consumption 0.3
Total power 5.03
Total weight 3500

We Offer Fruit juice filling machine 3-1 unit.1. This equipment is automatic washing filling capping three in one machine. Its of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank. 3. Filling Part is mainly composed of filling tank, filling valves (hot and pressure filling), bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, filling pump, vacuum pump, etc. 4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment. 5. Main electrical components are all imported from world famous brands to guarantee excellent performance of the whole machine.

Additional Information:

Payment Terms : L/C, T/T, Western Union,

Packaging Details : Wooden case, according to your needs

Delivery Time : 30-40 working days

View Complete Details

Ask Latest Price & Details

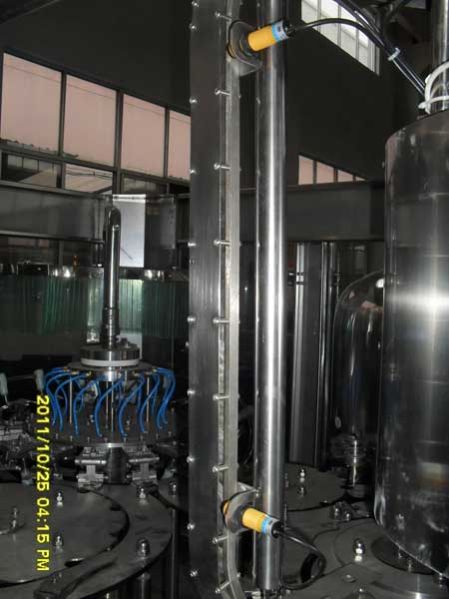

Juice Hot Filling Machine 3-1 Unit

Min. Order (MOQ) 1 Set(s)
Capacity 14000
Material SS304
Model RCGF32-32-10
Water consumption of washing bottle 3500
Gas consumption 0.5
Shipping terms FOB CIF
Total power 9.18
Total weight 5000
Suitable bottle PET/Barrel/Glass/can bottle
Dimension 3600*2800*3150mm

We Offer Juice hot filling machine 3-1 unit.The juice filling machine is used to fill PET heat-resistant bottle for fruit tea, juice and other high-temperature juice. The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technologyThe machine can be connected with UHT, CIP control center and bottle-invert sterilizerThe machine structure is reasonable and firm, the running state is stableThe suspension bottle neck catcher allows the machine change the bottle type easilySafe protective devices ensure safety of operator and machineMagnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage The module of screw capper ensures the tightness of the cap and avoids bottle damageSlight negative-pressure gravity circumfluence filling system increases juice filling accuracy and reduces contaminationUnique control mechanism keeps circumfluence volume below 5%Airtight valve made of non-plastic material prevents worn-out particles from dropping into bottles adversely affecting product qualityHigh efficient clean air filter circulation system ensures high sanitary requirementsLow overall machines noise that is comparable to any internationally known equipments in its classSelf-lubricationg system imported from America provides continuous smooth operation

Additional Information:

Payment Terms : L/C, T/T, Western Union,

Packaging Details : Wooden case, according to your special needs

Delivery Time : 30-40 working days

View Complete Details

Ask Latest Price & Details
