zhejiang yongdeli pneumatic valve company

lishui, China

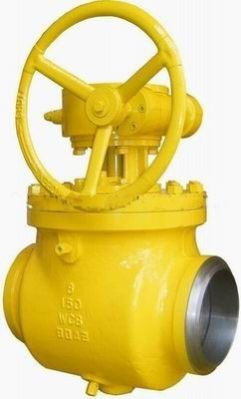

We are offering Top Entry Ball valves. Pressure:150LB-2500LBSize:2"-48"Design Std:API6D, ISO14313, ASME B16.34Fire resistance design conforms with:API607, ISO10497Inspection&Test conforms with:API6D, ISO5208, API598 Product Material:ASTM A216 WCB, WCC, A351 CF8, A351 CF8M, A217 WC6, WC9 Top entry ball valve infomation:Features of 1 pcs ball valve:TOP ENTRY BALL VALVE is mainly used in pipeline and industry system and it has a top entry and on line maintenance function.It has a lot of advantages, such as small fluid resistance, simple structure, small volume, light weight, reliable saaling, convenience for operation and maintenance, open and close quickly, as well as start and close flexibly. Top entryIts most difference from common ball valve is that its maintenance can be made on pipe line and without dismounting from the pipe line.The back space seat structure is adopted for the seat and the rear portion of seat retainer is oblique angle to prevent accumulation of impurity from affecting back space of seat. One piece bodyOne piece body is used for the body to guarantee sufficient strength and rigidity under maximum rated operating pressure.The internal parts of valve are carefully designed and selected to ensure reliability under all kinds of operating condition.Enough margin wall thckness and adaptation of high strength connective bolts are convenient for valve maitenance and sufficiency to support the stress from piping.

We are offering forged steel metal seated ball valve. material of general purpose ball valve employs generally non-metal material, such as ptfe. Limited by the seat material, the general purpose ball valve can not be used in case of high temperature application, and application medium with solid articles, and ash dregs neither. So, the application scope of general purpose ball valve is restricted partially. Taking this into consideration, our company has developed successfully after years of hard study full range of metal to metal sealed ball valve, including floating ball valve and trunnion ball valve, which have found extensive applications in such industries as petroleum, chemistry, power, metallurgy, and light industry. purpose metal to metal ball valve of class 150-class 2500, pn 16- pn 160, jis 10k- jis 20k are applicable to various pipeline and use to truncation and get through of the medium. That should be according to select different material for use while being different kinds of medium, that can be applied to non-corrosive medium, weak corrosion medium, nitric acid, acetic acid, oxidizing medium, urea and other medias; especially suitable for containing solid particles medium, slurry, powder coal, ash and other harsh work condition. The operation including, manual, gear box, pneumatic actuator, electric actuator and hydraulic actuator. Metal to metal ball valve is now available for flange ends, and also can use bw ends, sw ends, npt ends and wafer ends. advanced hardening technology employed for ball and seat metal to metal sealed design has been employed perfectly for the ball and seat, which has also adopted the advanced hardening technologies, such as ultro-sonic spray coating, nickel base spray welding, surface specially hardening, stellite spray welding, ceramic material with high strength and hardness, and so on. Surface hardness of the ball and seat may generally reach more than hrc60, maximun is up to hrc74, and application temperature of the material may be up to 540, maximun is 980. Combining strength of the material gets to more than 10000 psi. Besides, the surface materials posses also very good resistance properties of friction and impact. Metal to metal sealed ball valves made by sedelon are suitable for use in most criticle working conditions. standards and specification design & manufactureapi 6dapi 608asme b16.34ansiawwa c507mss sp-72bs 5351bs 6364bfci 70-2iso 5211nace mr0175 . connection endsasme b16.5asme b16.47api 605mss sp-44iso 7005-1jis b2238bs 12627asme b16.25asme b16.11bs 12760 . face to face dimensionasme b16.10iso 5752bs 558bs 12982 testing & inspectionapi 598api 6dapi 607api 6fabs 6755bs 12569mss sp-82mss sp-61 normal pressure or ratingclass 150 class 2500jis 10k 20kpn 10 pn 420normal diameter or borenps1/2nps10dn15dn250applicable temperature-196540operation typemanual, worm gear, pneumatic, electric forged steel metal seated ball valve , high pressure ball valves

We are offering 3 way reduced bore ball valve. 3 way reduced bore ball valvethe multiport ball valve is available with a l or t ported ball and can be used on many mixing and cross flow applications. The valve has a compact design and all wetted parts in pfa to ensure compatibility with the most corrosive processes. to suit asme 150 piping systems to suit pipework nb face -face a centre line - face b inches mm mm mm 1" 25 160 80 1.1/2" 40 200 100 2" 50 230 115 3" 80 310 155 4" 100 350 175 the valve is available from sizes 1nb to 3nb and in 90o and 180o operation. Many different variations of porting are available. Please advise the symbol number when ordering.

We are offering fpa lined ball valve. the q41f46 is primarily used as a tank drain valve, the taper bore design gives a larger inlet port to quickly empty vessels. Manufactured by atomac who are the worlds leading manufacturer of corrosion resistant fluoropolymer lined valves. They are designed to provide bubble tight shut off, have floating balls to reduce turning torque and have proven low maintenance stem seals. to suit asme 150 piping systems - click here for din pn10/16 piping systems to suit pipework nb face - face a cl to end of wrench b cl to top of wrench cinches mm mm mm mm2" x 1" 50 x 25 150 160 1233"x1.1/2" 80 x 40 185 210 1453" x 2" 80 x 50 195 210 1604" x 2" 100 x 50 200 210 1606" x 2" 150 x 50 185 210 1604" x 3" 100x80 245 313 2056" x 4" 150x40 290 313 2208" x 6" 200x150 305 337 312 the q41f46 has many features that make it one of the best lined ball valves in the world, cavity filled seats ensure minimum product hold up. Anti-blow out stem prevents stem blow out even if the top works are removed. Stainless steel fasteners ensure long term protection from external corrosion. The floating ball offers low turning torques and low pressure positive sealing. The seats, ball, stem and stem packing all easily replaceable on site allowing easy maintenance and overhaul.

We are offering full bore long pattern lined ball valve 300lb. working in close conjunction with one of the worlds largest chemical companies. atomac have expanded their pfa lined q41f46 range to include an asme 300 valve with maximum working pressure rating of 50 barg. Ideally suited for chlorine plants with their asme 300 piping standards. They are a very cost effective alternative to exotic metallic valves. They encompass all of the excellent design features of the asme 150 q41f46 and are available from 1 to 6nb to suit asme 300 piping systems to suit pipeline nb face - face a cl to end of wrench b cl to top of wrench cinches mm mm mm mm1" 25 165 123 1601.1/2" 40 190 145 2102" 50 216 160 2103" 80 282 205 3134" 100 305 220 3136" 150 403 312 337 the q41f46 asme 300 has many features that make it one of the best lined ball valves in the world, cavity filled seats ensure minimum product hold up. T slots machined in to the cast body ensure the pfa liner is secured making it suitable for operation in vacuum conditions. Stainless steel fasteners ensure long term protection from external corrosion. The floating ball offers low turning torques and low pressure positive sealing. the seats, ball, stem and stem packing all easily replaceable on site allowing easy maintenance and overhaul.

We are offering three way ball valves. three-way ball valves, l port ball valve, t port ball valve , flange typethree way ball valves are suitable for use on various kinds of pipelines of class150class300, pn16pn40 for switching, dividing, and combining medium flow, of which the operation manners include manual, worm gear, pneumatic or electric actuators, connection manners are in general of flanges. As required by customers, the other type of connection is available too. structure and features l type three way ball valve is used for pipelines to switch the flow direction, being able to switch on two flow lines perpendicular with each other. T type three way ball valve. may be used to divide, combine or switch the flow direction. T type ball passage is able to switch on three flow lines or switch on two of the three flow lines. T type ball valve may realize two, three or four seats of the functions, however, the specific valve design must draw a distinction between them to realize different function. In this respect, as selecting and ordering by customers, it is necessary to describe in detail the application requirement so as for sedelon company to make correct design and fitting. Regarding the general floating three way ball valve, it is unsuited to be used for certain working conditions, which must be made clear to the customers for making right selection. There are many kinds of three way ball valves with unique designs made by sedelon company to meet customers special working conditions and requirement. For the common three way ball valves, sedelon company adopts in general the design of two seats. As required by customers, sedelon company can also design and manufacture the three way ball valves with four seats. three way screwed ball valves, l port ball valve, t port ball valve specifications: 1) size: 1/2" to 2" 2) working pressure: 1000psi, for w. O. G. 3) threaded: bspt, bsp, npt, din2999 4) type: t port or l port, ptfe seat, reduced bore, with mounting pad iso5211 5) material: wcb, cf8, cf8m etc. 6) investment casting body and cap. 7) operation: lever with locking device(option)

We are offering v type ball valve. 1-body2-stud3-nut4-o ring5-o ring6-circlet7-key8-stem9-o ring10-gland11-o ring12-bolt 13-worm gear set14-bevelling spring15-o ring16-seat17-v shape ball18-trunnion19-bush20-a djusting cushion21-o ring22-down-end cap23-boltapplicationv type ball valve is suitable for use on various kinds of pipelines of class 150class300. There are two kinds of applications for v type ball valve according to customers?? different requirement. One is used for cutting off or switch on the pipeline medium. The other is used as control valve for regulating the medium flowcapacity in pipeline. Operation manners for cutting off type ball valve include manual, worm gear, pneumatic or electric actuators, where as for regulating type v type ball valve, open ball valve, open manners are of pneumatic and electric actuators. Of the application for metal sealed v type ball valve, the temperature is in general 200 .as specially ordering, the application temperature for metal to metalsealed v type ball valve can be 425 (carbon steel valve body) or 540 (valve body of stainless steel, crmo steel, and crmo v steel).for soft sealed v type ballvalve, the application temperature is in general 180(reinforced ptfe seat). Connection type for v type ball valve is of water flanged connectionfeatures1. For v type ball valve, the bevelling spring or pillar spring loaded movable seat design has been employed, which is reliable in seal and of long service life asthere in no such problems as clenching or disjointing. 2. It features the function of slipping between the ball with cutting edge and metal seat, which is particularly suitable for the medium containing fibre, solid particles, thick fluid, and so on. 3. As per different working conditions of customers, several kinds of advanced techniques have been employed separately for the ball and seat surface of metal to meta l sealed ball valve, such as nickel base alloy by spraying welding (for hardness hrc60), stellite alloy by ultra-sonic spraying coating (for max. Hardness ?rc70), and specially hardened material etc. , which are suitable for many kinds of critical working conditions. 4. When the valve is fully open, flow capacity is big, pressure loss is small, and the medium would not deposit in the body cavity. 5. Being impact in structure and extensive in common use, the cutting off v type ball valve features perfect sealing property and may replace gate valve, globevalve and general ball valve. For regulating v type ball valve, its regulating scope available is wide, and its regulating accuracy is high.

We are offering trunnion mounted ball valve series. It has fire-proof and antistatic design .no-direction limit for installing , wide usage, reasonable price, easy operation with multi actuating methods including manual, pneumatic, electric, hydraulic and pneumatic-hydraulic operated. part name material body/bonnet wcb, lcc, lcb, cf8, cf8m, cf3, cf3mball wcgb+hcr, a105+hcr, 2cr13, 304, 316, 304l, 316lstem 2cr13, 304, 316, 304l, 316lseat ptfepplnylon 101.
