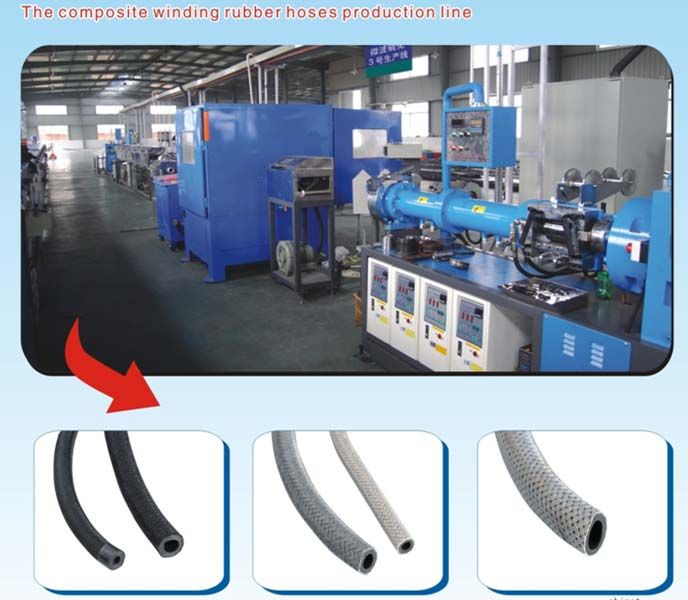

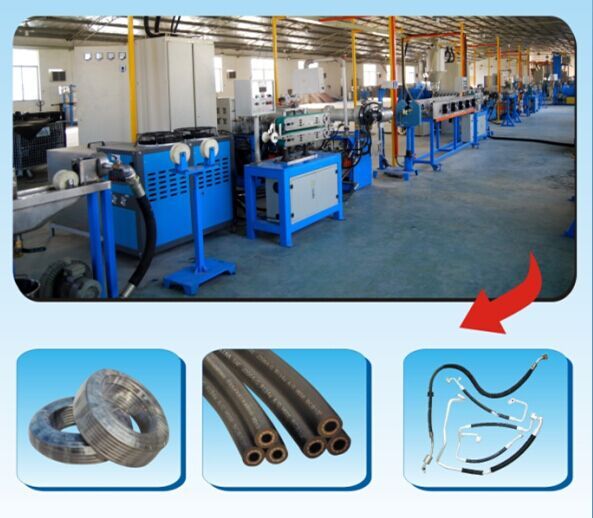

We are offering winding rubber tube. Mainly usageautomobile oil tube, break tube, air conditional tube, and so on. no. item specification1 center height 105020mm2 direction man face to the equipment, right into and left out.3 colour up--white, down--blue4 power three phase, 380v, 50hz5 steam source required 0.5-0.6mpa6 water source required 0.2mpa7 low voltage electrical brand "schneider "8 motor brand thunis, kgo series9 the inverter brand "delta "10 reducer brand jie brand11 production line speed 28mmin12 temperature controller brand "omron "13 total power 350kw14 equipment working environment temperature 0-40humidness 50%-90%15 emergency stop equipment all equipment is set stop device16 indicator light color power indicator: white, operation instructions: green; fault indicator: red17 control box components start, stop, buttons and other action button18 equipment satisfy production process, the power gas circuit layout is reasonable, move towards horizontal flat vertical, convenient operated.

machine 90 outer rubber extruder1 model E90-06(E90-JST-07-00E90-DZ-03-00)2 usage Extruding and mixing rubber and plasticizing, using extrusion molding with the head forming the rubber products.3 size 270012001620(L*W*H)4 Extrusion System 5 feeding way side roller through a screw transmission power, feeding activly6 feeding structure side roller gear and screw gear meshing transmission, with automatic lubricating device.7 screw material 38GrMoAcA8 Screw hardness HRC65-689 steel bushing hardness HRC65-7010 depth of Azotization 0.40.7mm11 screw structure With the exhaust slot, good vacuum performance12 "pressure control " With pressure sensors, pressure adjustable protection value is 0 to 35 mpa 13 Extruder fixed According to the situation , can be straight, rotating and static way14 LD ratio 16115 Screw Diameter 90mm16 "screw speed " 0-55rmin17 "MAXimum output " about 280kgh18 temperature control system 19 heating sectionpower 3kw420 Cooling section number 1piece side roller21 Vacuum power 1.5KW22 Temp Control Mode Electromagnetic valve automatic control of heating and cooling23 Circulating water pump brand Wilo24 cooling water pressure 0.15-2KGC25 Temp Accuracy 126 driving system 27 Screw connected with reducer Using spline connection28 Motor and reducer drive Use 5 root 5 v belt transmission29 hard tooth decelerate model ZLYJ250-20-130 motor power 55KW 31 total power 80KW32 "speed adjustment mode " frequency control
