Min. Order (MOQ)
1 Set(s)
-
Type
D362H
-
Material
Stainless Steel
-
Media
Water, gas
-
Brand Name
FREE-VALVE
-
Country of Origin
China
-
Technics
Hard Sealing
-
Power
Manual/Electric/Pneumatic
-
Pressure
Class 150 /PN6 /PN10/PN16/PN25
-
Structure
Standard
-
Port Size
NPS6~NPS42
-
FOB/CIF
gray/blue/material

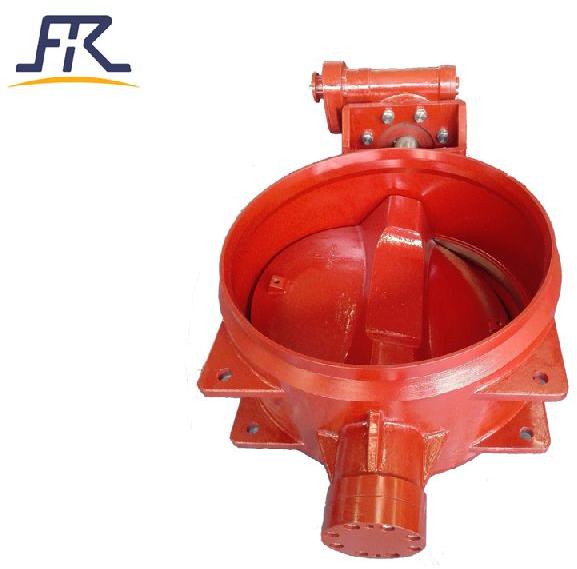

Butt Welded Butterfly ValveFREE-Valves Butt Welded Butterfly Valves are suitable for high temperature , high pressure , corrosion etc. Itsare quarter-turn valves which are used for isolating or regulating flow .They are favoured for being lighter in weight, requiring less support and are suitable for water and gas, which makes them useful across industrial, mining and power applications.Features:1. Reliablesealing, convenientoperation, openingandclosingfast.2. This kind of valve with no flange, which makes pipe elegantly and binding up conveniently.3. It adopt triple offset elasticity or multiple layers hard sealing configuration, the hermetical capability can reach to reliable sealing performance. Technical Specification:1) Size Range: NPS6NPS42;DN150DN10502) Pressure Range: Class 150Class300;PN10PN403)Body materialCarbon Steel, Stainless Steel & Other Materials4) Sealing material:Stainless steel, hard alloy& Other Materials 5) Connection Type:Butt weld6)Pressure test:GB/T13927; API5987)Structure length: GB/T12221;API609;8) Jointing dimension: GB/T12224; ANSI B16.259) Operating method:Worm gear, electric, pneumatic . Application:FREE-Valves Butt Welded Butterfly Valves are applied to use in heatingsystem, chemical, petroleum, natural gas, refining, energy, food and the role of regulating valve.
Additional Information:
Payment Terms :
L/C, T/T
Packaging Details : wooden box
Delivery Time : 30days
