Zibo Fumin Chemical Equipment Co., Ltd.

Zibo, China

• F2000-30000LBlue enamel

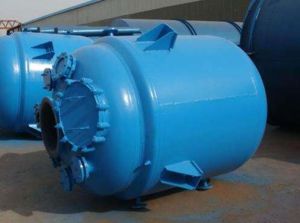

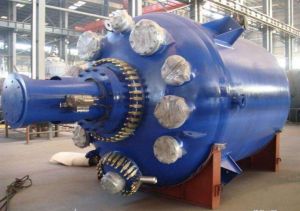

We are offering glass lined reactor. The f-type glass lined reactor we offer is a jacketed glass lined vessel which comes with a stirring device and has a welding neck flange setting on its top head. Superior enamel is adopted, ensuring the quality of reaction vessel. As well, the f-type glass lined reactor can’s sealing effective is better than the k-type. Our f-type glass lined vessel is available in a complete range of specifications from 2000liter to 30, 000liter, and we can also produce non-standard glass lined reactor according to the requirements of users. Technical parameters design pressure internal packing seal 0.2mpa single mechanical seal 0.4mpa double mechanical seal 0.6mpa jacket 0.6mpa0.8mpa design temperature internal -19℃~+200℃ jacket -19℃~+200℃ agitator speed paddle type 110~130rmin impellor type 110~130rmin
