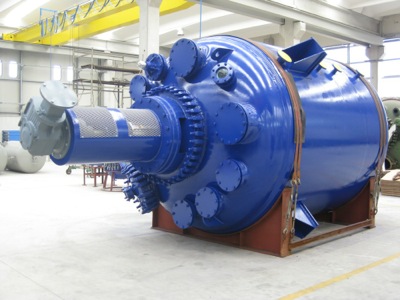

Glass Lined Reactor

We are offering glass lined reactor.
The f-type glass lined reactor we offer is a jacketed glass lined vessel which comes with a stirring device and has a welding neck flange setting on its top head. Superior enamel is adopted, ensuring the quality of reaction vessel. As well, the f-type glass lined reactor can’s sealing effective is better than the k-type. Our f-type glass lined vessel is available in a complete range of specifications from 2000liter to 30,000liter, and we can also produce non-standard glass lined reactor according to the requirements of users.
Technical parameters
design pressure
internal
packing seal 0.2mpa
single mechanical seal 0.4mpa
double mechanical seal 0.6mpa
jacket 0.6mpa0.8mpa
design temperature internal -19℃~+200℃
jacket -19℃~+200℃
agitator speed
paddle type 110~130rmin
impellor type 110~130rmin
