Zibo Yuntao Plastic Products Co. Ltd

• MOQ 1 Ton
• Sizeany

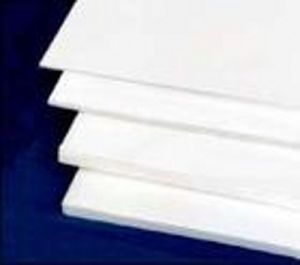

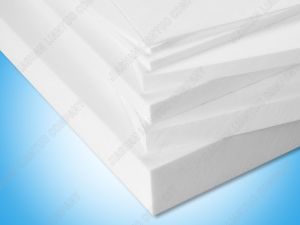

Property and Usage of Molded Sheet ptfe Sheet is Produced By Molding Suspend Ptfe Resins.it Has the Best Propery of Anti-chemical Corrosion and Aging-resistant among the Known Plastics.it Has the Excellent Friction Factor among the Solid Materials and Can Be Used At the Temperature of -180℃~+260℃ with No-loadposition. It is Widely Used as Anti-corrosion Liners, Seal Liners, Bearing Slide, Guide Rail and Electric Insulation Parts. property and Usage of Skived Sheet, Ptfe Film & Ptfe Oriented Film ptfe Sheets, Films and Oriented Film are Produced By Molding Roughcasts and Turning Process.it Has the Excellent Dielectric Performance, Aging-resistant, The Best Anti-chemical Corrosion and Wide Useful Ranges.the Film is Non-directional Film, Through Molding Process to the Semi-oriented Film and Oriented Film.it is Used as the Seal Liners in Each Medium and as the Electric Isolation Part, Capacitor Medium, Lead Isolation and Electrical Apparatus Isolation in Each Frequency. type and Specification *the Special Slider of Bridge Bracing is Divided Into Rectangular Plate and Circular Plate.we also Produce It as Customers' Requirements. name thickness Mm width Mm length Mm molded Sheet ≥1.0 ≤2000 ≤2000 skived Sheet 0.3-8.0 ≤2500 ≥500 oriented Film 0.03-0.8 ≤150 ≥500 main Technical Sheet item unit skived Sheet skived Tape oriented Film tensil Strength mpa 16 20 ≥30 elongation At Rupture % 180 250 ≥60 ac Breakdown Values kv/mm 1.8 1.8 12 dielectric Constant 106hz 1.98 1.98 2.52 notice: We also Produce as Customers' Requirements.

• Sizeany

feature and usage ptfe rod is divided into the pressed rod and molded rod, which is used for long products and non-specification mechanical parts.it has the best anticorrosion and dielectric property in the known plastics.it can be used at the temperature of -180℃~+260℃ with the lowest frictional factor.it has the best anti-corrosive property in the known plastic materials. type and specification of pressed rod diameter （mm） tolerance（mm） length （mm） tolerance （mm） ö4—ö9 +0.5 1000 +5.0 ö10—ö18 +1.0 1000 +4.0 ö20—ö50 +1.5 1000 +3.0 ö55—ö200 +2.0 1000 +2.0 type and specification of molded rod diameter （mm） tolerance（mm） length （mm） tolerance （mm） ö4—ö15 +0.20 120 ±3.0 ö16—ö90 +0.20 250 ±3.0 ö95—ö150 +0.30 300 ±3.0 ö160—ö350 +0.30 300 ±3.0 main technical sheet item unit result appearance density g/cm3 2.1—2.3 tensile strength mpa 14.0 elongation at rupture ％ 220 operating temperature ℃ -180--+260 notice: we also produce as customers' requirements.

• usageused as non-sticking materials,It has the lowest frictional factor and the best anti-corrosive property
• wall thicknessmin2.5mm
• lengthmax350mm
• colorwhite

PTFE pipe is formed by pushing and molding.Pressed pipe uses corrosive medium fluid pipeline, insulation sheath and drive shaft.Molded pipe can be made into non-standard parts by mechanical working, also it can be used as non-sticking materials.It can be used at the temperature of -180℃~+260℃.It has the lowest frictional factor and the best anti-corrosive property among the known plastic materials. The specification of Pressed Pipe(Suspended material): Measure mm Wall Thickness mm Measure mm Wall Thickness mm Measure mm Wall Thickness mm 18 x 14 2 40 x 32 4 80 x 74 3 18 x 12 3 40 x 30 5 80 x 70 5 19 x 15 2 40 x 20 10 80 x 60 10 19 x 12 3 50 x 46 2 80 x 50 15 20 x 16 2 50 x 44 3 82 x 77 2.5 20 x 14 3 50 x 42 4 82 x 76 3 22 x 16 3 50 x 40 5 86 x 80 3 24 x 20 2 51 x 47 2 90 x 85 2.5 25 x 21 2 52 x 44 4 90 x 84 3 25 x 19 3 57 x 51 3 90 x 80 5 26 x 16 5 60 x 54 3 90 x 60 15 27 x 21 3 60 x 53 3.5 99 x 93 3 27 x 16 5.5 60 x 50 5 99 x 72 3.5 29 x 25 2 60 x 40 10 101 x 93 4 29 x 23 3 64 x 59 2.5 104 x 98 3 29.5 x 25.5 2 64 x 55 4.5 106 x 95 5.5 30 x 22 4 66 x 42 12 106 x 86 10 32 x 28 2 68 x 63 2.5 116 x 86 15 32 x 27 2.5 68 x 62 3 126 x 119 3.5 32 x 22 5 70 x 64 3 129 x 122 3.5 32 x 25 3.5 70 x 57 6.5 152 x 144 4 33.5 x 27.5 3 70 x 10 10 153 x 129 12 36 x 32 2 70 x 20 25 162 x 154 4 40 x 36 2 75 x 65 5 168 x 160 4 40 x 35 2.5 75 x 55 10 204 x 196 4 40 x 34 3 80 x 75 2.5 207 x 199 4 210 x 199 5.5 220 x 109 5.5 230 x 219 5.5 240 x 229 5.5 250 x 239 5.5 257 x 246 5.5 300 x 289 5.5 308 x 297 5.5 291 x 28 5.5 The specification of Pressed Pipe(Scattered material): Measure mm Wall Thickness mm Measure mm Wall Thickness mm Measure mm Wall Thickness mm 1.2 x 0.8 0.2 7 x 4 2 12 x 10 1 1.5 x 0.9 0.3 7 x 3 1.5 12 x 8 2 2 x 1.5 0.25 8 x 7 0.5 14 x 12 1 2 x 1 0.5 8 x 6 1 15 x 13 1 3 x 2.5 0.25 8 x 5 1.5 15 x 11 2 3 x 2 0.5 8 x 4 2 16 x 14 1 4 x 3 0.5 9 x 8 0.5 17 x 15 1 4 x 2 1 9 x 7 1 18 x 14 2 5 x 4 0.5 9 x 6 1.5 18 x 16 1 5 x 3 1 10 x 8 1 20 x 16 2 6 x 5 0.5 10 x 7 1.5 22 x 18 2 6 x 4 1 10 x 6 2 23 x 20 1.5 7 x 5 1 11 x 7 2 30 x 24 3 The specification of Molded Pipe: Diameter Wall Thickness Tolerance mm Length mm Tolerance mm ø10-ø150 ≥2.5 ±0.20 ≤180 ±0.5 ø150 -ø350 ≥4 ±0.35 ≤350 ±0.5 ø350 - ø800 ≥8 ±0.60 ≤350 ±0.5 Main Technical Sheet: Item Unit Result Appearance Density G/cm3 2.10-2.30 Tensile Strength Mpa ≥18 Elongation at Rupture % ≥230 Operating Temperature ℃ -180-+260 Notice: We also produce as customers' requirements.

• colorwhite
• weight 11g-2300g
• usageused as seal materials of the joints to industrial machinery equipments in pipe flange rubber,plastics,ceramics,graphite and other industries

Feature PTEF Gasket is a kind of static seals which is composed of elastic material such as compressed Asbestos sheet, rubber and PTFE covers etc.PTFE has the superior performance of chemical corrosion-resistant at the temperature of -180℃~+250℃.It's never eroded by any chemicals except the alkali metal which melts in the high temperature and fluorine.It's the best non-stick material with lowest friction factor and excellent oxidation-resistant characteristics. Usage PTFE Gasket is used as seal materials of the joints to industrial machinery equipments in pipe flange rubber, plastics, ceramics, graphite and other industries. Specification Outside Diameter Measures (mm) Weight (g) DN15 51x21x3 11 DN20 59x27x3 14 DN25 70x33x3 20 DN32 80x44x3 23 DN40 90x48x3 30 DN50 101x61x3 34 DN65 125x80x3 48 DN80 140x89x3 61 DN100 150x108x3 56 DN125 190x140x3 85 DN150 218x158x3 117 DN200 265x200x3 157 DN250 320x250x3 207 DN300 378x325x3 193 DN350 440x370x3 294 DN400 490x426x3 304 DN450 508x470x3 193 DN500 550x490x3 570 DN600 574x549x3 735 DN700 770x700x3 550 DN800 910x805x3 960 DN900 1010x910x3 1020 DN1000 1120x1010x3 1250 DN1200 1330x1210x3 1620 DN1400 1510x1420x3 1400 DN1600 1710x1620x3 1600 DN1800 1920x1820x3 2000 DN2000 2125x2020x3 2300 Notice: We also produce as customers' requirements.

• Length5mm-100mm
• Applicationused in the sealing of packing set and thread.The PTFE Expanded Belt is main used in the flange and plane.
• thickness0.075mm-0.1mm
• width12mm-100mm

Feature The Expanded PTFE Belt is also named Flexible Belt and Varicosity Belt.The sealing PTFE Belts are made of varicosity PTFE resins, has the reticular varicosity structure of minuteness filaments and nodes.It has the property of good tenacity, high longitudinal strength and lateral facile deformation.It is the best materials of packing set and thread. Usage PTFE Thread Sealing Tape is main used in the sealing of packing set and thread.The PTFE Expanded Belt is main used in the flange and plane. The Specification of PTFE Thread Sealing Tape No. Item Measure Tolerance 1 Thickness mm 0.075, 0.10 ±0.015, 0.02 2 Width mm 12, 13, 18, 24, 16, 52, 100 0.5 3 Length m 5, 10, 15, 20, 40, 60, 100 0.5 The Specification of Expanded PTFE Belt Measure mm Measure mm Measure mm 2x4 3x90 8x10 2x8 4x6 8x30 2x20 4x20 8x40 2x40 4x40 8x50 2x60 4x60 10x10 2x90 4x80 10x20 2x100 5x6 10x30 3x5 5x16 10x45 3x20 5x30 15x15 3x40 5x50 15x25 3x60 5x80 15x30 Main Technical Sheet Item Unit Result Appearance Density g/cm3 ≥0.7 Tensile Strength MPa ≥8.0 Elongation at Rupture % ≥50 Notice: We also produce as customers' requirements.
