PTFE Sheet, Packaging Type : white

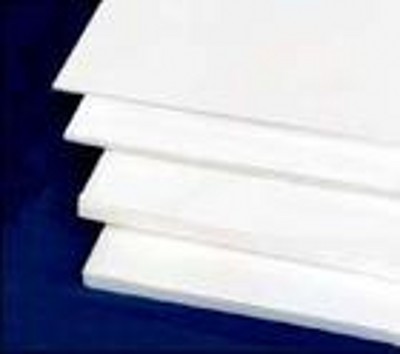

Property and Usage of Molded Sheet
ptfe Sheet is Produced By Molding Suspend Ptfe Resins.it Has the Best Propery of Anti-chemical Corrosion and Aging-resistant among the Known Plastics.it Has the Excellent Friction Factor among the Solid Materials and Can Be Used At the Temperature of -180℃~+260℃ with No-loadposition. It is Widely Used as Anti-corrosion Liners,Seal Liners,Bearing Slide,Guide Rail and Electric Insulation Parts.
property and Usage of Skived Sheet,Ptfe Film & Ptfe Oriented Film
ptfe Sheets,Films and Oriented Film are Produced By Molding Roughcasts and Turning Process.it Has the Excellent Dielectric Performance,Aging-resistant,The Best Anti-chemical Corrosion and Wide Useful Ranges.the Film is Non-directional Film,Through Molding Process to the Semi-oriented Film and Oriented Film.it is Used as the Seal Liners in Each Medium and as the Electric Isolation Part,Capacitor Medium,Lead Isolation and Electrical Apparatus Isolation in Each Frequency.
type and Specification
*the Special Slider of Bridge Bracing is Divided Into Rectangular Plate and Circular Plate.we also Produce It as Customers' Requirements.
name thickness Mm width Mm length Mm
molded Sheet ≥1.0 ≤2000 ≤2000
skived Sheet 0.3-8.0 ≤2500 ≥500
oriented Film 0.03-0.8 ≤150 ≥500
main Technical Sheet
item unit skived Sheet skived Tape oriented Film
tensil Strength mpa 16 20 ≥30
elongation At Rupture % 180 250 ≥60
ac Breakdown Values kv/mm 1.8 1.8 12
dielectric Constant 106hz 1.98 1.98 2.52
notice: We also Produce as Customers' Requirements.
