CPC Equipments Private Limited

Hatia, Ranchi, Jharkhand

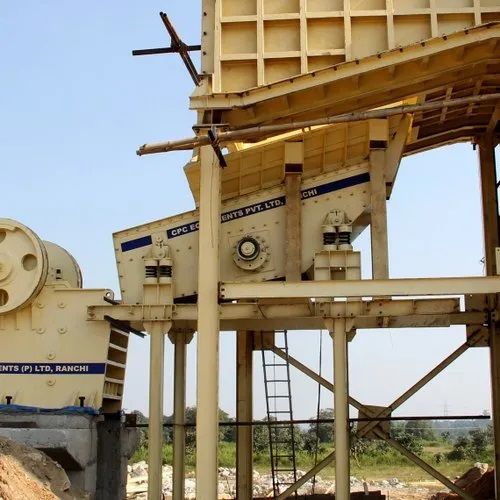

CPC VGF 1232 Vibrating Grizzly Feeder is the toughest grizzly feeder available in the market designed for heavy and continous duty:

 - Heavy fabricated feed hopper with door for feed control

 - Extra strong feed plate for receiving the material from hopper

 - Non-choking stepped deck design for primary screening

 - Heavy alloy steel grizzly bars for long life

 - Heavy vibration for effective screening

 - Adjustable slope of grizzly between 5-15 deg

 - Simple grease lubrication with large grease bank

 - Easily replaceable socket type bearing housing

 - Precision machined shaft assdembly for perfect

 - Bearing alignment

 - Quality bearings

CPC Vibrating Grizzly Feeder  is the toughest grizzly feeder available in the market designed for heavy and continous duty .
- Heavy Fabricated Feed Hopper with Door For Feed Control- Extra Strong Feed Plate For Receiving the Material From Hopper - Heavy Alloy Steel Grizzly Bars For Long Life - Heavy Vibration For Effective Screening - High Quality Bearings - 1 Year Warranty

M/C Model - VGF 1552
length - 15'
Width - 5'
No. of Decks - 2
Max Feed Size - 48'
Capacity - 110 to 225
RPM - 750 to 900
Motor - 40 HP

Additional Information:

• Production Capacity: 110 to 225 TPH

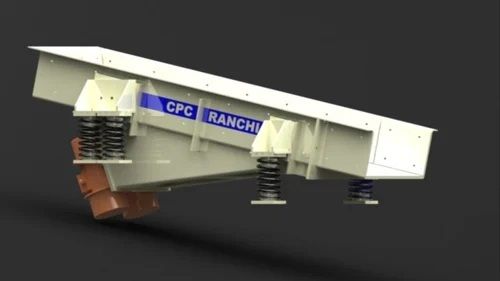

CPC VIBRO FEEDER

Linear Motion Vibro Feeder, Robust Construction, from 35 to 250 TPH Capacity, for CPC Equipments Pvt Ltd.Vibrating feeders are essential for conveying bulk material for controlled feed, suitable for continuous or batch feeding applications. They are commonly used for discharging bulk material from bins and feeding crushers, mixers, furnaces, scales, bucket elevators, screens, and conveyor belts. These feeders can be driven by Electromagnetic Vibrating Drives, Unbalance Vibrator Motors, or Unbalance Exciter Drives.
