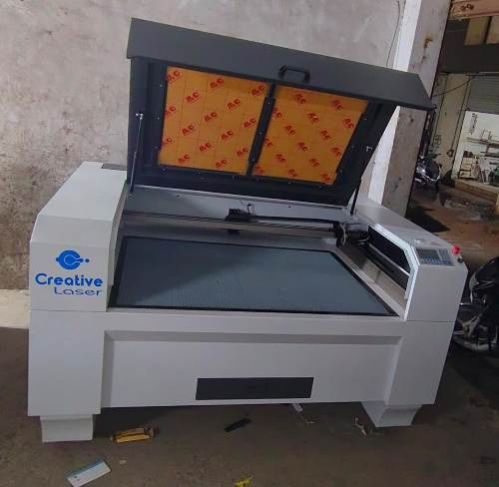

Creative Laser

Kathwada, Ahmedabad, Gujarat

• Min. Order (MOQ) 1 Piece
• Model CL1313
• Laser Type Co2
• Head Type Single Head
• Working Area 1300mm * 1300mm (51 * 51 Inch) (4*4 feet)
• Laser Power 150W
• Laser Source Sealed Glass Co2 Laser Tube (Reci/Yongli/EFR)
• Usage Non-metal Materials Cutting & Engraving
• Application Material Acrylic, MDF, Leather, Wood, Cloth, Rubber, Plastic, Fabric, Paper, Plywood
• Machine Body Mild Steel (High Strength Metallic)
• X Y Axis System Belt (Imported)
• Z Axis System Manual
• Guide System X Axis = Inside Y = Outside
• Co2 Glass Tube Yongli or Reci or EFR
• Working Table Honey Comb or Knife Strip
• Controller Ruida RD 6445S (EC) (New model)
• Cooling Mode Water Chiller (S & A 5200 CW Series)
• Blower (Air Exhaust) 550 Watt
• Power Supply ZYE Power Supply (Display Screen, Yongli)
• Air Compressor 135 Watt
• Operating System Windows 7 32 bit/64 bit/windows 10
• Interface System USB Interface
• Driving System Stepper Motor
• Add. Feature Accessories S&A Chiller CW5200 TG, Hailea Air Compressor ACO-009D 135W, Exhaust Fan 550W, Tool Box
• Warranty Full Machine 1 Year, Laser Tube 6 Month
• Brand Name Creative Laser
• Country of Origin India
• Supported File Format PLT, DXF, BMP, JPG, GIF, PNG
• Max Cutting Thickness 12 mm Acrylic, 8 mm MDF
• Min Letter Cutting 1 mm (English Font)
• Running Environment 45 Degree C; Humidity 5%-95% (without condensed water)
• Working Voltage Single Phase AC220V±10%, 50-60Hz (Required Earthing)
• Weight 450 Kg
• Cutting Speed 450-600mm/sec
• Engraving Speed 800-1000mm/sec
• Working Speed 600mm/sec
• Travelling Speed <500mm/sec
• Power Consumption 2 – 3 Unit / Hours
• Power Adjustment 1 to 100%
• Reposition Accuracy +0.01mm
