Rotameters

We are leaders in the market for providing best range of Bypass Rotameter, Metal Tube Rotameter, BY-PASS ROTAMETER, Acrylic Body Rotameter and Low Flow Rotameter

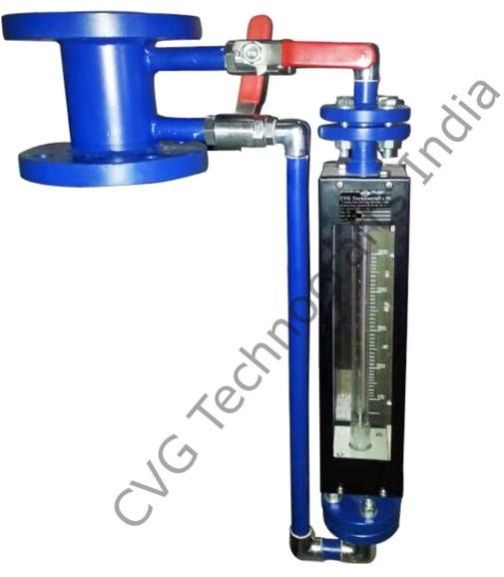

Bypass Rotameter

Bypass Rotameter
This Bypass Rotameter is, by far, the most economical way for measuring excess rates of flow. Also, this Bypass Rotameter is apt to be used in pipelines, ranging from 40 NB to 350 NB. Further, this Bypass Rotameter is present in different types of material carrier ring impulse piping. The flow rate of this Bypass Rotameter is volumetric. Model : CVG/BPR We Require Data For Offering :
  • Flow rate min / max
  • ID of main pipeline exactly
  • Flanges of main pipeline
  • Pressure & temperature
  • Material of wetted parts
Order Details :
  • Minimum Order Quantity : 50 Pieces
  • Price Range : Ranging From 1500 INR to 50, 000 INR
View Complete Details
Ask Latest Price & Details
Metal Tube Rotameter

Metal Tube Rotameter
Be it for metering of opaque fluids or translucent fluids under high operating high temperature and pressure, this Metal Tube Rotameter is available in diverse sizes. We are among the respected names to get world-class Metal Tube Rotameter at rates that are not at all high. Available Sizes : In 316 SS construction with flanged connections in line size from 20 NB to 100 NB Model : CVG / MTR Ranges :
  • 100 to 60.000 LPH of water at ambient temperature
  • 2.5 to 1700 Nm3/hr of air at NTP
Accuracy : 2% of FSD & 1.5% of FSD on request Order Details :
  • Minimum Order Quantity : 50 Pieces
  • Price Range : Ranging From 1500 INR to 50, 000 INR
View Complete Details
Ask Latest Price & Details
BY-PASS ROTAMETER

BY-PASS ROTAMETER
  • Fluid Liquids, Gases & Steam
  • Density / Sp. gravity Up to 1.85
  • Viscosity Below 10 CP
  • Design Temperature Up to 150°C
  • Design Pressure Up to 13 Kg/cm² in case of Glass Tube Type Up to 25 Kg/cm² in case of Metal Tube Type
  • Measuring Range 22 to 300 M3/hr of Water / Liquid
  • 0.1 to 800 Nm3/hr of Air/Gas NTP Line Size
  • 50 NB to 600 NB End Connection Materials
  • MS / SS304 / SS304L / SS316 / SS316L / Monel / Hastalloy / PVC / PP Connection
  • Carrier Ring Suitable to mount between ASA/BS/DIN Flanges Accuracy
By-Pass Rotameter is basically a differential pressure flowmeter.It is used to measure the flow rate 50NB & above line sizes.A complete By-Pass rotameter consist of orifice plate, carrier ring, impulse piping, isolation valve & Rotameter as indicator.It can be installed in line vertically upward, Vertically ownward, horizontal towards right or towards left.
View Complete Details
Ask Latest Price & Details
Acrylic Body Rotameter

Acrylic Body Rotameter
This Acrylic Body Rotameter is best suited for inline installation with screwed or flanged connection. Also, we provide the clients diverse options of wetted parts and materials as well. The float present in this Acrylic Body Rotameter moves easily as per the flow of the fluid. Specifications :
  • Available Sizes : 15 NB to 100 NB
  • Model : CVG /ABR
  • Ranges : 2.5 to 40, 000 LPH of water at ambient temperature to 300 Nm3/hr of air
  • Accuracy : +2% of FSD
  • Accessories : High & Low Flow Alarms
Order Details :
  • Minimum Order Quantity : 50 Pieces
  • Price Range : Ranging From 1500 INR to 50, 000 INR
View Complete Details
Ask Latest Price & Details

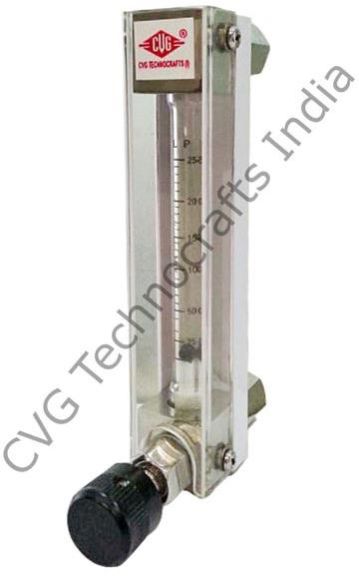

Low Flow Rotameter

Low Flow Rotameter
This Low Flow Rotameter is best suited for low flow rate measuring or purging. The standard mounting of this Low Flow Rotameter is ". Also, this Low Flow Rotameter has BSP rear and diverse arrangements of hose pipes or flanged connections are provided on special client requests. Ranges :
  • 0.6 to 160 LPH of water at ambient temperature.
  • 10 to 5000 NLPH of air at NTP
Accuracy : + 2 FSD Model : CVG.LFR Accessories :
  • Built in needle valve
  • DP regulator
  • Panel Mounting Clamps
  • High & Low Flow Alarms
Order Details :
  • Minimum Order Quantity : 50 Pieces
  • Price Range : Ranging From 1500 INR to 50, 000 INR
View Complete Details
Ask Latest Price & Details
Glass Tube Rotameter

Glass Tube Rotameter
Glass Tube Rotameter is apt for online installation, supporting screw or flanged connection with diverse options for wetter parts and materials. We are among the respected names to get premium Glass Tube Rotameter at rates that will never burn a hole in the pocket. Specifications :
  • Available Sizes : 15 NB to 100 NB
  • Ranges : 2.5 to 40, 000 LPH of water at ambient temperature 0.1 to 750 Nm3/hr of air at NTP
  • Accuracy : +2% of FSD
  • Model : CVG / GTR
  • Accessories : High & Low Flow Alarms
Order Details :
  • Minimum Order Quantity : 50 Pieces
  • Price Range : Ranging From 1500 INR to 50, 000 INR
View Complete Details
Ask Latest Price & Details
Digital Rotameter

Digital Rotameter
Digital rotameter flow rate of a liquid or a gas. Different types of flow meters are available for different application and depending upon the requirement, a careful selection of flow meter is made. For e.g., a Turbine type flow meter cannot be used for measuring the flow in an unclear liquid (waste water or corrosive liquids).
View Complete Details
Ask Latest Price & Details
Acrylic Rotameter

Acrylic Rotameter
Acrylic Body Rotameter is basically a variable area flowmeter.It is used to measure the instant flow rate of liquid & gases. (e.g. Water Salt Water, Air, N2, H2, Natural Gas, etc.The essential working part is tapered flow tube precision machined inside the transparent acrylic block.When flow occurs, Position of float indicates the flow rate on scale engraved on acrylic body.The Acrylic Body intergral machined cut in acrylic body from imported transparent acrylic blocks, sheets.
View Complete Details
Ask Latest Price & Details
Metal Tube Rotameter CVG MTR

Metal Tube Rotameter CVG MTR
  • Accuracy ± 2% of FSD & ± 1.5% of FSD on request.
  • Available Sizes In 316 SS construction with flanged connections in line size from 20 NB to 100 NB
  • Ranges 100 to 60.000 LPH of water at ambient temprature. 2.5 to 1700 Nm³/hr of air at NTP.

Technical Specification : Suitable for metering of translucent / opaque fluids under high operating pressure and temperature.

View Complete Details
Ask Latest Price & Details
