Cybernetics

Miyapur, Hyderabad, Telangana

• MOQ 5 Meter

We are offering andon displays help you to identify where you need to concentrate your efforts, to get maximum efficiency from your production lines.

we offer i-smart model th-gsm (remote monitoring of temperature and humidity with gsm) features sht-75 sensiron make temperature and humidity sensor. human interface with graphical display and keypad for configuration settings gsm modem which is used to transmit the messages to the registered phone-numbers. provision for registering upto four phone numbers data-logging upto 1, 00, 000 records receives parameter values on request. parameter transmission in regular intervals or whenever it crosses set-points note: instrument without gsm option is also available specifications temp accuracy +-0.5degc humidity accuracy +-2% 12-24v dc input with minimum of 1amp current rating support for gsm 850 900 1800 1900 mhz safe operating temperature of instrument is 0 degc to 70 degc applications refrigerator temperature monitoring food storage facilities pharma and food processing industries computer server rooms hospitals icu rooms.

We are offering arm cortex, development tools for arm cortex controllers, rabbit and microchip based controllers.

We offer load cell data acquisition system.

We are offering rcm6700 data acquisition board.

We offer gps trackers. This product is specifically designed for indian army for tracking cdss stands for combat decision supporting system. This has got inbuilt gps and is used to transmit the location data through starsv mkii and cnr radio sets which are carried by radio men for communicating. a pc installed with the sit awareness system and connected to stars v mk iicnr will receive the location data from all the cdss modules and displayed on the maps. salient fatures gps accuracy upto 3 mts memory up to 1, 63, 000 records i.e we can have data stored continuously for one month voltage supply 9v—24v compatible with starsv mk ii and cnr radio sets current consumption stand alone software in base station for tacking rugged enclosure with display and key pad.

• MOQ 10 Pack(s)

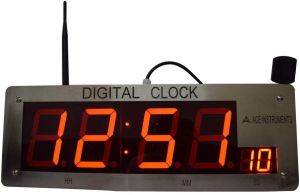

We are offering digital synchronized clock system is a perfect solution for a wide range of applications where accurate, synchronized time is required for better operation process. All the clocks can display the same real time, whether in the office, production blocks, warehouse, canteen of industries. These clocks find wide applications in areas of manufacturing industries, hospitals, api's, formulations, three types are available gps clocks pc time synchronization wireless clocks available in 2" and 4" height in red and green color all clocks with can be connected in using rs485 network for time synchronization in master and slave mode can be configured for 12 hour or 24 hour format operating voltage available in 24v dc or 230v ac available in aluminum, ms and ss enclosures upto 25 slaves can be connected to master rs485 network for synchronization built-in battery to keep time even in power failures ir remote for slave time settings when there is communication problems.

We are offering data acquisition board.

The dredge monitoring unit(dmu) enables the dredging master to verify and control the position of the cutter or wheel in relation to the channel's centerline, the working depth and profile set points. 1) position in latitude, longitude and altitude 2) present depth of cutter 3) width of cutter from center line the dmu is an independent system but can also be incorporated into larger systems – usually as a signal source for the automation of the dredging process, such as the automatic cutter or wheel controller. has provision to integrate more dredger parameters like pressure, voltage, vacuumetc making a total dredger supervisory unit. components of dmu there are 3 major components in dmu digital processing unit(dpu) unit with 5 inch display and inbuilt gps. inclinometer sensor connected to processor unit used to measure the depth of the utter. Tilt compensated magnetometer measures the heading value of the dredger. Dpu processes signals received from inclinometer and heading sensor and calculates the depth and width of cutter for given dredger parameters.
