deesha Impex

Ambawadi, Ahmedabad, Gujarat

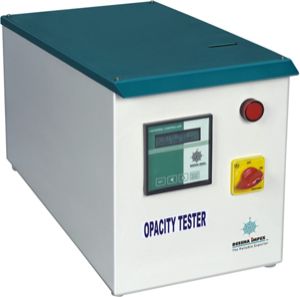

• This Instrument is in according to ASTM D 1003, BS, DIN, ISO, IS (Indian Standard)or according to customers required specification


• Direct percentage reading facility digital display


• Operation of instrument cyclic to get accurate results


• Digital display with opacity and transparency indication


• Display LCD based


• Working principal on infrared sensing device system with helpof wave length facility


• SMPS 12V is fitted as a power supply to get accurate results

This Instrument is in according to ASTM BS, DIN, ISO,
IS (Indian Standard) or according to customer’s required specification

• Load capacity : 10N or higher with 0.5% accuracy of loadSpeed selection : Fix speed 150±10 mm/min


• Driven mechanism : Single screw driven mechanism.


• Platform : SS moving platform with 200gms dead weights.


• Calibration facility : In-built calibration facility at any moments


• Controlling device : Microprocessor based LED controlling device.


• Test results : Direct result measurements. Static COF value                      Power supply 220v, 50 Hz

This Instrument is in according to ASTM D 638 and can supply accordance with BS, DIN, ISO, IS (Indian Standard) or according to customers required specification.Mechanical Structure on Single Screw Base supported tie-bar with linear motion bearing to carry load.Load accuracy dependable of the load cell. Accuracy 1% of the full scale value of load cell.

• This Instrument is in according to ASTM D3015 BS 2782 Part 8, DIN,  ISO, IS 2508 / 2530 (Indian Standard) or according to customer’s required specification


• This instrument is used to find out uniform dispersion of Carbon Blackin PE Products


• Projection screen Diameter. 4 or 6”


• Magnifications 100 X, 200 X is available with instrument


• Thermostatically operated Hot Plate is also provided with the instrument


• Halogen lamp 12volts

• This Instrument is in according to ASTM BS, DIN, ISO, IS (Indian Standard) or according to customers required specification


• Machine is supply with PID based temperature controller with autotuning facility to maintain accurate temperature


• Digital display range: 0-1000c, L.C 1cWith desiccators, Bunsen burner, tri-pad, silica crucible, Sulphuric acid (500ml)

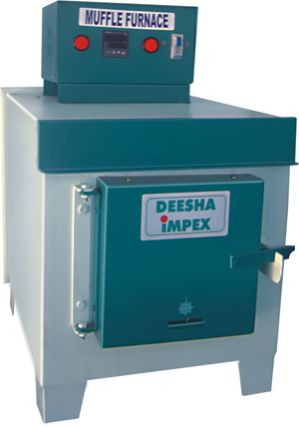

• Firebricks insulated muffle furnace with side opening door

• This Instrument is in according to ASTM D 1238, BS, DIN , ISO, IS (Indian Standard) or according to customers required specification


• Temperature range up to 400c with accuracy 1c. Resolution 0.1c


• PID based temperature controller with auto-tune facility


• Timer: Digital timer Range up to 999.9 min/ 999.9 sec., Having preset facility and buzzer output


• Applied weight manual

• This Instrument is in according to ASTM D 1525 for VSP 648 for HDT BS, DIN, ISO, ISI (Indian Standard) or according to customers required specification


• Temperature gradient corresponding 50c/hr, 120c/hr or free programmable


• Start temperature free programmable


• Displacement measuring by vibration free Digital dial gauges accuracy of 0.01mm


• At the same time user conduct test of VSP or HDT


• Sample thickness 2-12 mm


• With high power cooling system. Re-cooling time from 200c to ambient temperature in approx 30-45minutes


• With help of cooling facility user can start new test immediately


• Bath construction made by inside SS and outside MS with insulation


• Stirring facility is used for uniform temperature

This Instrument is in according to ASTM BS, DIN, ISO, IS (Indian Standard) or according to customers required specification, PID based temperature controller with auto-tune facility Temperature resolution 1c with accuracy better than 5c, Test structure with furnace and tubing fixed and clearly allocated.

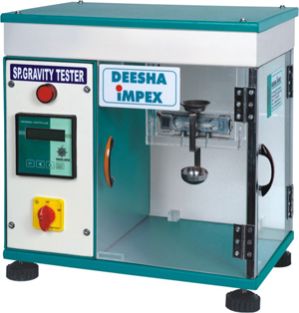

• This Instrument is in according to ASTM BS, DIN, ISO, IS (Indian Standard) or according to customers requiredspecification.


• Maximum load value 120gms


• Equipment designed on based of specific gravity method


• Direct reading of density value


• Mechanical structure arrangement for measure weight in liquidand weight in air


• Density measurement on specific gravity method


• Simple and easy structure to measure reading accurately


• Vibration free and covered body structure to avoid uselesseffect on to the load cell

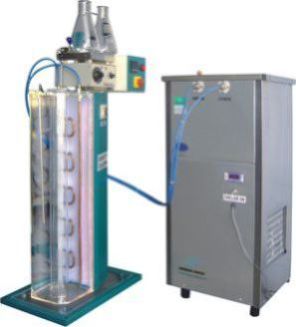

This Instrument is in according to ASTM D 1505, BS, DIN, ISO, IS (Indian Standard) or according to customers required specification Density gradient column with single column method Graduated column with working length of 70cms Out side acrylic jacket covered on to the column with temperaturecontrolling facility Calibrated 5nos of glass floats with mark identity One time test conduct chemical is part of supply Complete test conduct glass wares with necessary other accessorysupply with the instrument Magnetic stirrer with hot plate provision supply with the instrument

• This Instrument is in according to ASTM BS, DIN, ISO, ISI (Indian Standard) or according to customer’s required specification.


• Maximum Energy range up to 25Joules.


• LCD display to check result.


• Semi automatic model with DEESHA's customized PLC.


• Direct calculated results display and hammer falling facility directfrom the controller.


• Hammer length and sample details entry manual from the display.


• Wise type holding fixture for tensile impact test.


• Sample clamping mechanism as per ASTM D 1822 or according to requirement.

PC communication via RS-485 converter for fast data collecting and every moment data collection to analyze product at each and every point. Configure the test using a standard test setup template which is pre-formatted for each type of test, Pre define profile feed to switch over from one test method to another test method.

• This Instrument is in according to ASTM D 1709 BS, DIN, ISO, IS: 2508 (Indian Standard) or according to customer’s required specification


• A two piece annular specimen clamp having an inside diameter of 127mm


• The movable part of clamp is maintaining positive contact with the lower part of the contact to hold the film sample firmly


• Pneumatically operated clamps have been used to hold film successfully in to the clamps


• Electromagnet withstand 2 Kg. weight. Electromagnet unit is to be equipped with a centering device to ensure reproducible drop. Electric power is used to energize and de-energize the electromagnet


• Positioning device is provided to positioning the dart at a different drop height


• Position device is built in two parts. One is for 22cms and 66cms and another is suitable up to 152.4cm


• Darts and weights : As per standard Test Methods A and B darts with hemispherical heads

This Instrument is in according to ASTM D 1709 BS, DIN, ISO, IS: 2508 (Indian Standard) or according to customers required specification, The movable part of clamp is maintaining positive contact with the lower part of the contact to hold the film sample firmly, Electromagnet withstand 2 Kg. weight. Electromagnet unit is to be equipped with a centering device to ensure reproducible drop. Electric power is used to energize and de-energize the electromagnet.
