DET ENGINEERING SYSTEMS

Chinchwad, Pune, Maharashtra

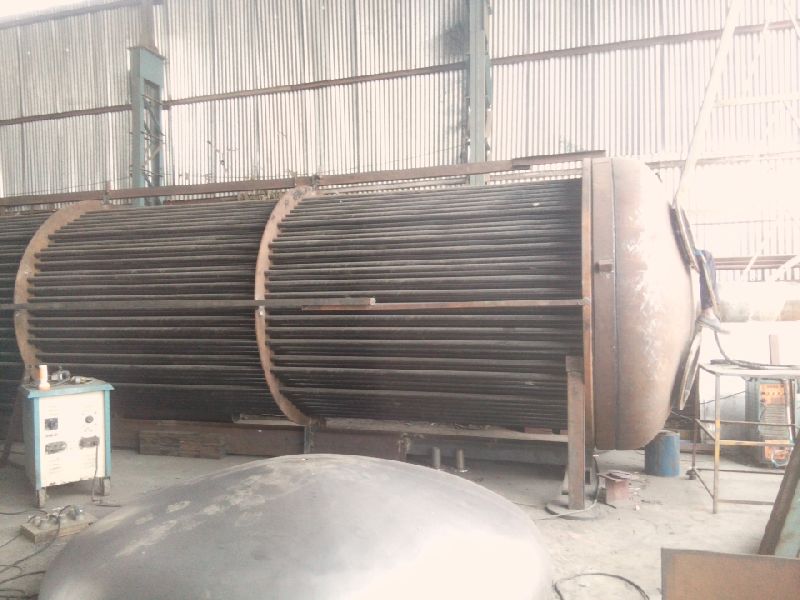

We are one of leading manufacturer of ddgs dryer (dry distillers grain soluble dryers). We have achieved the level of design for bellow 10% product moisture and higher syrup (dwgs) addition.our design is very different from rotary tube bundle dryer which lead more moisture contains.drying process:what is leftover in the distillation process is a nutritious mash or distillers grains, a very popular livestock fee.it passes trough decanter to separate fibers and thin slope, fibers directly transfer to dryer and thin slope transfer to evaporator to increase concentration up to 45% and then it transfer to drying process, mixture of decanter wet cake and evaporators thin slope (syrup) fed to our specially design dryer to get minimum moisture (bellow 10%) up to as per requirement.specifications:

spin flash dryer spin flash dryer consist of rotor at conical base of drying chamber fluidised product particles in a drying efficient hot air flow pattern in which any wet lums are rapidly disintegrated. hot air is supply by temperature control hot air generator and speed control fan entering in drying chamber tangentially in order to establish a turbulent, whirling airflow. backed by the support of our experienced professionals in this domain, we have been able to bring forward a qualitative range of spin flash dryer system. the provided dryer system is well manufactured by our experienced professionals using the best quality raw material and modern technology. offered dryer system is widely acknowledged among our clients owing to its long working life and zero maintenance. moreover, our clients can avail this dryer system at most affordable price. advantages of spin flash dryer: high drying efficiency providing low energy cost continuous processing with short processing time low operator overhead and minimum maintenance cost control residence time enabling high temperature drying control particle size capacity range: 10 kghr to 10000 kghr applications: starch powder starch derivatives dyes intermediates h acid bentonite china clay minerals dry distillet grain soluable (ddgs) kumkum gamma acid

Rotary Dryer:Rotary Dryer is a type of industrial dryer employed to reduce or minimize liquid moisture contains of the material by bringing it direct contact with a heated gas. dryer is made up by large rotating cylinder which is slopes slightly so that discharge end is lower than material feed end in order to convey material under gravity. materials to be dry enters the dryer and as the dryer rotate. the material Filted up by the series of internal fins lining the inner wall of the dryer. Capacity: Capacity Range- 100 kg to 20000 kghr Temperature: Temperature Range max-1100 degree CApplications:Industrial EffuentsSludgeAmmonium BicarbonateBiomassSodiumsClorides

Fluid Bed Dryer:Fluid Bed Dryer Process may involve drying, colling, agglomeration, or granulation. the fluid bed may also be used finishing of powder produced by spray drying for each application, the process concept and design details are selected to meet specific requirement based on industrial experience and testing of product. We are instrumental in offering a wide range of Fluid Bed Dryer system to our valuable clients. In synchronization with the set industry standards, our provided dryer system is precisely manufactured using high grade basic material and latest technology. Owing to its error free operation and excellent performance, this dryer system is widely appreciated by our precious clients. Moreover, to ensure the best quality, the offered dryer system is tested by our quality experts on different parameters Features: Less maintenanceLong service lifeRugged construction Applications: PolymersYeastFertilizersOrganic saltPesticides

we are one of leading manufacturer of ddgs dryer (dry distillers grain soluble dryers).we have successfully commissioned indias largest ddgs dryer. we have achieved the level of design for bellow 10% product moisture and higher syrup (dwgs) addition.our design is very deferent from rotary tube bundle dryer which lead more moisture contains. drying process: what is leftover in the distillation process is a nutritious mash or distillers grains, a very popular livestock feedit passes trough decanter to separate fibers and thin slope, fibers directly transfer to dryer and thin slope transfer to evaporator to increase concentration up to 45% and then it transfer to drying process, mixture of decanter wet cake and evaporators thin slope (syrup) fed to our specially design dryer to get minimum moisture (bellow 10%) up to as per requirement

Gum arabic spray dryer:-indtroduction:-rnagglomerated version of highest quality gum arabic. In a typical beverage emulsion, mechanical gum arabic is mixed for 4 to 16 hours before oil addition, but spray dry gum arabic is ready for oil addition after only 45 minutes of mixing. Plus, there is almost no dust during dumping, yielding a safer working environment. The agglomerated version retains all the functional properties of the starting material.Gum arabic is an ingredient that finds its presence in all industries right from pharma to printing, food to flavour and confectionary to cosmetics. Features. Good emulsification property.We are manufacturing and supplying a wide range of gum arabic spray dryers. These dryers are used in various industries for drying and evaporating water from thermally-sensitive materials such as foods and pharmaceuticals. These dryers are demanded in the drying plants for dairy, food, chemical and pharmaceutical industries.in addition to this, we are manufacturer and of spray drying plants, detergent spray drying, detergent spray drying plants, spray dryers, flash dryers, industrial spray drying plants, spray dryer system, spray drying technology, spray drying plant, detergent plant, detergent plants, detergent manufacturing plant, turnkey detergent processing plantspecifications:two fluid atomizationrn high pressure single fluid atomizationrn rotary disc atomization features :controlled noise levelrn automatic cleaningrn impermeablern compact designrn unmatched qualityrn less maintenancern durabilityrn easy operationscapacity:-100kg to 500kg/hrtemperature:-200degree

We are offering atomizer disc spray dryer:we offer atomizer disc spray dryer the basic system is a single stage co-current with centrifugal disc atomization spray dryer. The liquid sprays and drying takes place in contact with hot air forming dry powder. This type of spray dryer use in, where powder directly meets quality specification.We are the leading manufacturer, exporter and supplier to provide our prestigious clients an optimum quality range of atomizer disc spray dryer system. Our provided dryer system is well designed and manufactured under the guidance of our renowned professionals using premium grade raw material and high-end technology. Offered dryer system is widely acknowledged among our valuable clients owing to its best usage in various industries for some specific purposes. types of air flow pattern available: co-currentcounter currentmixed flowopen cyclesemi close cycleclose cyclecapacity:from 10 kghr to 10000 kghr temperature range: up to 600 degree celsiusapplication: protein hydrosate powder dryer arabic gum powder dryersherbal extracts dryersinorganic chemicalsorganic chemical productsfertilizer productsmilk productsegg productsfruit and vegetable productsfood and plant productscellulose productsfish productstannin productsyeast productsceramic product.
