Dev Precision Engineers

Jagnath Plot, Rajkot, Gujarat

Besides Main Bearings Set We can also supply following Parts : Connecting rod bearing shells, - 40563 / 000E0563 (Standard / Under Size) DV20, DV24, DV29, DV32, DV36 and DV48 Big End Bearings / Plejlstangspander, st / Pleuellager, Satz Main bearing liner - 000E 4765 / 000E4765 (Standard / Under Size) DV36 and DV48 Hovedlejeforing, standard Hauptlager, Laufbuchse

• A high quality replacement Bimetal bearings for Bukh DV10 DV20, DV24, DV29 and DV32 2 CYL MARINE DIESEL ENGINE.
• Main Bearings liners Set for DV10 Single Cylinder Engine.
• Main Bearing Liner Rear Bush Part No DEV 00D0454 or DEV 40454 and
• Front Bush Part No DEV 00D0453 or DEV 40453 1 No Each
• Bore x stroke 3.35 x 3.35 in (85 x 85 mm)

Besides Main Bearings Set We can also supply following Parts : Connecting rod bearing shells, - 40563 / 000E0563 (Standard / Under Size) DV20, DV24, DV29, DV32, DV36 and DV48 Big End Bearings / Plejlstangspander, st / Pleuellager, Satz Main bearing liner - 000E 4765 / 000E4765 (Standard / Under Size) DV36 and DV48 Hovedlejeforing, standard Hauptlager, Laufbuchse

A high quality replacement Bimetal bearings for Bukh DV20, DV24, DV29 and DV32 2 CYL MARINE DIESEL ENGINE.

Also Suitable for Single Cylinder DV10 Engines.

We manufacture & Export Plain, Thinwalled, Cut Type as well as Flange bushings in various metals & composition. We manufacture bushings for Railways (Locomotives), Compressors, Turbines, High Pressure Pumps, homogenizer, other rotating & reciprocating machinery. We manufacture these bushings Through Centrifugal Casting which enables us to manufacture Bushings in Large (Bulk) quantity as well as in small quantity.

We manufacture Bushings From Following Material –

• STEEL Back – SAE 1008 or SAE 1010
• Linning Alloy – SAE12, SAE14, SAE15, GR84, GR90

These Bushings are widely used in Leaf Spring Eye / Shackle Bushings, Connecting Rod Small End Bush, Piston Pin Bushings, Valve Rocker Bushings, Piston Pin Bushings application.

Steel Backed Lead base Babbitt Alloy References: SAE 15, CLEVITE F23, FEDERAL MOGUL L 200, GLYCO 24

Steel backed Tin base Babbitt Alloy References: SAE 12, CLEVITE F1, FEDERAL MOGUL B 100, GLYCO 38

We manufacture & Export Plain, Thinwalled, Cut Type as well as Flange bushings in various metals & composition. We manufacture bushings for Automobiles (Cars, Trucks, Tractors) Diesel Engines, Marine Engines, Railways (Locomotives), Earth Movers, Compressors, Generators other rotating & reciprocating machinery. We manufacture these bushings Through sintering or Centrifugal Casting which enables us to manufacture Bushings in Large (Bulk) quantity as well as in small quantity in some of the Products.

We manufacture Bushings From Following Material –

• STEEL Back – SAE 1008 or SAE 1010
• Linning Alloy – SAE 792, SAE 797, SAE 793, SAE 794, SAE 799, SAE 64

These Bushings are widely used in Leaf Spring Eye / Shackle Bushings, Connecting Rod Small End Bush, Piston Pin Bushings, Valve Rocker Bushings, Piston Pin Bushings application.

Steel backed Leaded Bronze Alloy References: DIN CuPb10Sn, SAE797, JIS-LBC3, UNS C93700, Clevite F100, Daldo L10, D.A.B.D57, federal Mogul / Talho HF2, Glacler GGB SY, Glyco66, Miba2·1010, Kart Schmidt Ds94OS, ACL F100, SAE792, CuPb24Sn4, SAE799, RS-LBC6, DAIDO L23, JIS-LBC6, GLYCO-68, ACL-F250, SAE794

TriMetal engine Bearings & Bushings have been the industry standard since the first patent on the cast, copper, lead composition decades ago. We manufacture & Export Plain, Thinwalled, Cut Type as well as Flange bushings in various metals & composition. We manufacture bushings for Railways (Locomotives), Compressors, Turbines, High Pressure Pumps, homogenizer, other rotating & reciprocating machinery. We manufacture these bushings Through Centrifugal Casting which enables us to manufacture Bushings in Large (Bulk) quantity as well as in small quantity.

Seizure Resistance – TriMetal Bearings & Bushings have as much as 20-40% better seizure resistance than competitors’ engine bearings.

Load Capacity – TriMetal Bearings & Bushings can withstand over 40-60% higher loads for extended periods compared to competitor bearings.

Embedability & Conformability – The overlay on a TriMetal™ bearing offers a superior surface for forgiveness, offering additional protection that can be extremely beneficial in an engine that is poorly maintained.

Durability – TriMetal Bearings & Bushings not only exceed light vehicle OE durability requirements, they also exceed heavy vehicle OE durability requirements.

Bearing design features a steel backing for support, a cast-copper lead alloy center for strength and a overlay of casted white metal/Lead for slipperiness, conformability and embedability. The intermediate cast-copper lead layer creates and interlocked columnar structure capable of withstanding much heavier pulsating loads than any other bearing design. They are more resistant to corrosion and out-perform traditional Bearings & Bushings by 10-20 % or more.

TIN Based Babbitt OVER LAY (WHITE METAL)

• Tin based overlays contain copper (8-12%) as a hardening component.
• The alloys are developed to replace toxic lead based overlays.
• Tin based overlays possess excellent corrosion resistance and cavitation resistance. Overlay multilayer system of Sn alloy deposited on the bi-layer the overlay thickness due to varying content of copper (soft top layer and hard bottom layer of the overlay). Such multilayer Bearings & Bushings are capable to withstand alternating loads up to 11600-13000 psi (80-90 MPa).
• Hardness of tin-copper overlays is 20-30 HV.

Sabroe SMC 100 Main Bearing Bush Pt No 2132.021

• A quality aftermarket Main Bearings Bushing for use in Sabroe 100 T/S/L/E Compressor. Fits SMC T, SMC S, SMC L, and SMC E bore of 100 mm.
• Each order will contain 1 Pc of Main Bearing bush PN 2132.021 a Set of 2 Main Flange Bushings will be required in a complete set. A Part of Complete assembly Part No 3188.134.

Set of 2 PC  Part No 2132-021

• A quality Main Flange Bushings made from a quality SAE12 Babbitt Grade for use in Sabroe 100 T/S/L/E Compressor. Fits SMC T, SMC S, SMC L, and SMC E bore of 100 mm.
• Please order 2 Pc Bushings for a Complete Set for Sabroe 100 Refrigeration compressor.
• Main Bearing Bush fits SMC 104 106 108 112 116 and TSMC 108 and 116 and HPC 104 – 106 – 108 Mk4 Sabroe 100 T/S/L/E Compressor.
• The Bearing is part of Service kit main bearings complete. A Part for Service Kit Part No 3188.134 and Pt No  3188.135

Description:

• A quality Bronze Con Rod Bush for use in Sabroe 100 T/S/L/E Compressor. Fits SMC T, SMC S, SMC L, and SMC E bore of 100 mm.
• Piston Pin Bush or Rod Small End Bush Fits SMC 104 106 108 112 116 and TSMC 108 and 116 and HPC 104 – 106 – 108 Mk4 Sabroe 100 T/S/L/E Compressor.
• The Bushing is part of Connecting rod assembly complete – Pt No – 3123-004 and 3123-006 a Part for Service Kit 3188-089 & 3123.084
• SMC100 Bearing PN 2133-003 is part of Con rod assy PN 3123-004 & 3123-006 a Part for Service Kit 3188-090.

Oil Pump Bushing Set for Sabroe SMC 100 T/S/L/E Compressor

• A quality Bronze Con Rod Bush for use in Sabroe 100 T/S/L/E Compressor. Fits SMC T, SMC S, SMC L, and SMC E bore of 100 mm.
• Oil Pump Bush set of 15mm and 20mm Length of 2 Pc each Fits SMC 104 106 108 112 116 and TSMC 108 and 116 and HPC 104 106 108 Mk4 Sabroe 100 T/S/L/E Compressor.
• The Bushing is a Part of 3141.187 Complete RT pump.
• A quality aftermarket Bronze Journal bearing RT Pump Bushing Fits SMC T, SMC S, SMC L and SMC E Compressor Bore of 100 mm.

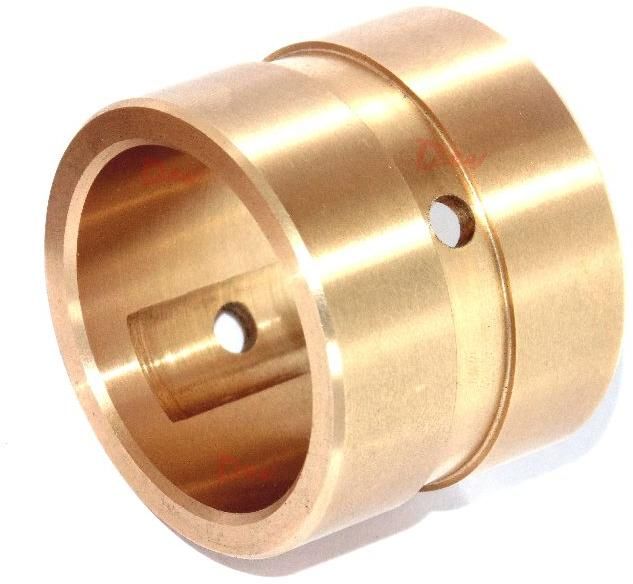

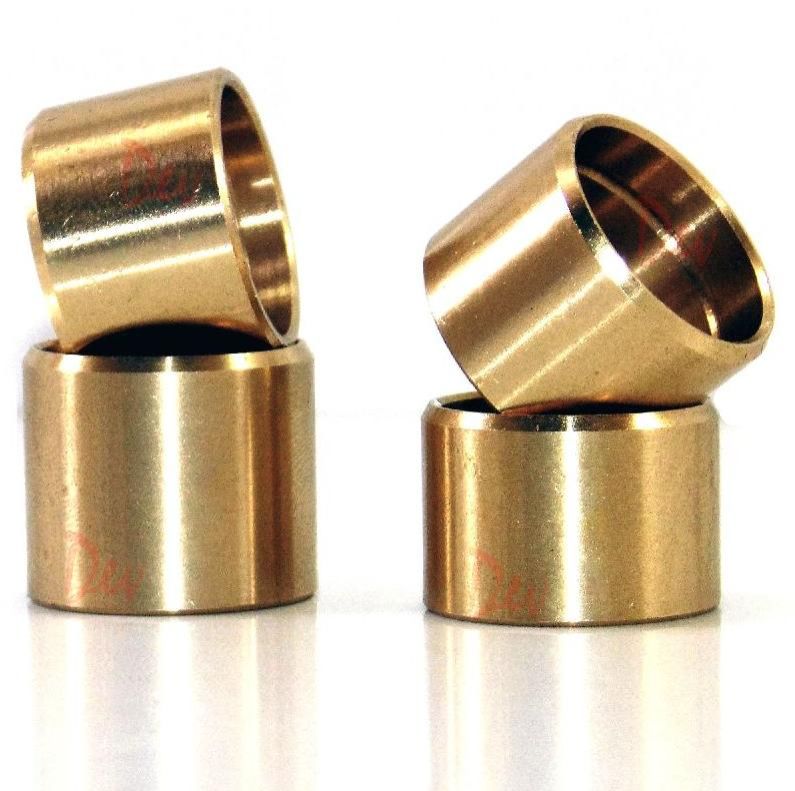

• We are manufacturer and supplier of Gunmetal Bushing and our product is made up of good quality. Bushes, includes Gunmetal, Bronze, Leaded Bronze, Leaded Tin Bronze and Tin Bronze.These Bronze metal products are widely demanded by the customers owing to their High ductile Strength, precision manufacturing, and reliability.
• These products can be procured by the clients at industry leading rates and they can customize their orders according to their needs and specifications.
• Our products are high in demads from developed countries likes US, Europe and Australia due to our high Material quality, Dimentional accuracy and shell concentricity.

Features :

• Pocket-friendly prices
• Varied patterns
• Completely Tested ((Materail, Dimentional, DP)

We manufacture & Export Plain, Thinwalled, Cut Type as well as Flange bushings in various metals & composition. We manufacture bushings for Automobiles (Cars, Trucks, Tractors) Diesel Engines, Marine Engines, Railways (Locomotives), Earth Movers, Compressors, Generators other rotating & reciprocating machinery. We manufacture these bushings Through sintering or Centrifugal Casting which enables us to manufacture Bushings in Large (Bulk) quantity as well as in small quantity in some of the Products.

We manufacture Bushings From Following Material :

• Steel Back - SAE 1008 or SAE 1010
• Linning Alloy - SAE 792, SAE 797, SAE 793, SAE 794, SAE 799, SAE 64

These Bushings are widely used in Leaf Spring Eye / Shackle Bushings, Connecting Rod Small End Bush, Piston Pin Bushings, Valve Rocker Bushings, Piston Pin Bushings application.

Steel backed Leaded Bronze Alloy References : DIN CuPb10Sn, SAE797, JIS-LBC3, UNS C93700, Clevite F100, Daldo L10, D.A.B.D57, federal Mogul / Talho HF2, Glacler GGB SY, Glyco66, Miba2·1010, Kart Schmidt Ds94OS, ACL F100, SAE792, CuPb24Sn4, SAE799, RS-LBC6, DAIDO L23, JIS-LBC6, GLYCO-68, ACL-F250, SAE794

We are the manufacturer & Exporters of Bimetal and Babbitt Alloy Big End & Main Journal bearings, bushings, thrust washers and precision components. We Manufacture Bearings by centrifigual as well as through sintered process. Our bearings are widely used as OE & replacement to various Pumps, Turbines, Marine compressors, Refrigeration & Gas compressors, marine & Main engines, Diesel locomotives, Diesel Engines, generators and range of other reciprocating & rotating machinery.

DU and DUB Type Dry Bush & Bearings  (Oil Free) take advantage of the outstanding dry bearing properties of Polytetrafluoroethylene (PTFE) and combines them with strength, stability and good wear resistance, excellent heat conductivity and low thermal expansion. All our Bushings are sold under our "Dev Brand Engine Spares"  Brand

DU Type consists of three bonded layers: A steel backing strip and a porous bronze matrix, impregnated and overlaid with the PTFE/ lead bearing material.

1. PTFE           0.010.03mm

2. Porous bronze 0.20.3 mm

3. Steel / Bronze backing 0.72.3 mm

4. Tin-plating  0.005 mm or

5. copper plating 0.008mm

DUB Type also consists of three layers: ---

Bronze backing replacing the steel backing strip. The structure is otherwise the same as that of DU. The bronze backing provides a high corrosion resistance, anti magnetic properties and a good thermal conductivity.

DU Bush, Bearings, Washers etc applications is suitable for:---

• Rotating • Oscillating • Reciprocating & • sliding movements mainly for

Automotive: Tractors, Combines, Crop Sprayers, Earth-Movers, Graders And Other Construction, Auto Machines, Specific Uses In Power

Steering Cylinders, Steering Gear Thrust Washers, Disc Brakes, Calipers And Pistons, Shock Absorbers, Governor Linkage, Windshield

Wiper Motor, Tilt Gear Assemblies, struts, shock absorbers guide bushing, hydraulic cylinders, gear pumps and motors and axial and radial piston pumps and motors. It is designed for use mainly under lubricated lubrications and shows excellent wear resistance, low static and dynamic friction coefficient.

Business Machines: Photocopy Machines, Typewriters, Mail Sorters, Postage Meter Systems, Computer Terminal Printers And Peripheral

Equipment, Automatic Printing Devices, Mail Processing Machinery.

Hydraulics And Valves: Pumps Including Gear, Rotary, Water, Axial Piston, And Other Types, Ball, Butterfly, Poppet Steam, And Other

Valves And Valve Trunnions, various kinds of medium, high-pressure gear pump, ram pump, vane pumps plunger pumps

Home Appliances: Tape Recorders, Refrigerators, Air Conditioners, Cleaners, Polishers, Sewing Machines, Ovens, Dishwashers, Clothes

Washing Machines.

And Materials Handling, Marine Engine, Packaging, Textile Equipment, Tools.

Characteristics, Advantages & Frictional Properties---

Non-Standard Components

Non-standard components are not available from stock.  These products are manufactured to customers' requirements with or without our recommendations, and include for example :

• Modified Standard Components - Flange & Plain Bushings, flange  & Thrust washers)

• Half Bearings

• Flat Components

• Deep Drawn Parts

• Pressing

DX Type Bushings & Washers

Dx Type Dry Bushings  (Marginal lubricated) It is made of high quality low-carbon steel, sintered porous bronze as its interlayer, with the compound of POM (POM-Pb) as its surface. And has good load capacity & wear-resistant. It's used in vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry, etc. It is without lead, can meet the requirements  of environment protection. All our Bushings are sold under our   Brand

Our DX type bushings & washers are especially well-suited for applications where lubricant can not be supplied continuously or

repeatedly. Recommended for applications involving intermittent operation or boundary lubrication.

1. POM with lead 0.30.5mm & Without Lead

2. Porous bronze 0.20.3 mm

3. Steel backing 0.42.2 mm

4. Tin-plating        0.005 mm or copper plating 0.008mm

Standard Cylindrical & Flanged Bush, Thrust & Flanged Washers OR Download our catalog from here

DX Bush, Bearings, Washers etc applications is suitable for:

• Rotating • Oscillating • Reciprocating & • sliding movements mainly for

Automotive: Tractors, Combines, Crop Sprayers, Earth-Movers, Graders And Other Construction, Auto Machines, Specific Uses In Power

Steering Cylinders, Steering Gear Thrust Washers, Disc Brakes, Calipers And Pistons, Shock Absorbers, Governor Linkage, Windshield

Wiper Motor, Tilt Gear Assemblies, struts, shock absorbers guide bushing, hydraulic cylinders, gear pumps and motors and axial and radial piston pumps and motors. It is designed for use mainly under lubricated lubrications and shows excellent wear resistance, low static and dynamic friction coefficient.

Machine Tool Building Industry: spindles in drill, grinding, and milling machines, ram guide plates in multi ram presses.

Agricultural Equipment: gearbox, clutch, bale trips and wheel caster swivels for bale accumulators, front axle pivot bearings, steering

idler box bearings and kingpin bearings for harvesters.

And Materials Handling, Marine Engine, Packaging, Textile Equipment, Hydraulics And Valves, Business Machines, Tools.

Characteristics, Advantages & Frictional Properties---

Foreign made DS Type bush may be operated without lubricant or under a trace of oil. It is of low friction, anticorrosion and is of long  life. This is now applied in machines under oscillating motion and in open field or in corrosive environment such as hoisters,   bulldogger, tower cranes, and printing or dyeing machines for textiles.

We manufacture & Export Plain, Thinwalled, Cut Type as well as Flange bushings in various metals & composition. We manufacture bushings for Railways (Locomotives), Compressors, Turbines, High Pressure Pumps, homogenizer, other rotating & reciprocating machinery. We manufacture these bushings Through Centrifugal Casting which enables us to manufacture Bushings in Large (Bulk) quantity as well as in small quantity.

We manufacture Bushings From Following Material---

STEEL Back - SAE 1008 or SAE 1010

Linning Alloy - SAE12,   SAE14, SAE15, GR84, GR90

These Bushings are widely used in Leaf Spring Eye / Shackle Bushings, Connecting Rod Small End Bush, Piston Pin Bushings, Valve Rocker Bushings, Piston Pin Bushings application.

Steel Backed Lead base Babbitt Alloy References: SAE 15, CLEVITE F23, FEDERAL MOGUL L 200, GLYCO 24

Steel backed Tin base Babbitt Alloy References: SAE 12, CLEVITE F1, FEDERAL MOGUL B 100, GLYCO 38

We specialize in manufacturing custom bushings as per requirement as per required Grades like LTB2 LTB4 PB1 PB2 GM 85-5-5-5,  bronze C93200, SAE 660 Bronze, SAE 64 Bronze.

We are offering Aluminium Bronze Bushes to our client. These alloys are tarnish-resistant and show low rates of corrosion in atmospheric conditions, low oxidation rates at high temperatures, and low reactivity with sulfurous compounds and other exhaust products of combustion. They are also resistant to corrosion in sea water.
Our core activity is Manufacturing “Centrifugal Castings” along with precision machining with the in-house machining facilities supplying both in Proof Machined and Machined Status. As we know that Centrifugal Castings are preferred over conventional castings due to its inherent qualities interms of near zero defects leading to higher reliability & strength.

Our Manufacturing Capabilities are :

• CNC, VMC 4+1 AXIS, MILLING, GRINDERS, DRILLS, Heavy Duty Lathe Machines for Machining
• Induction Furnace for Melting
• Centrifugal Casting Machine types in Cantilever, Horizontal and Vertical
• Production Capacity from 0.100.Kg to 8000.Kg. (OD 30mm to 150mm) (Length 10mm to 300mm)


Our Quality Norms are :

• Standard Ingots are used for manufacturing castings from reputed companies.
• Results of Chemical & Physical Properties matching to your specifications.

Our products are acknowledged for their :

• High tensile strength
• Better operational life
• Safe and reliable to use
• Dimensional accuracy
• Immaculate performance
• Capable of withstanding extreme pressure

Application industry :

• Chemical
• Marine
• Petroleum
• Oil

We are an acclaimed name engaged in offering our precious clients a superior quality range of Turned Aluminium Bushes. These bushes are manufactured using supreme grade metal and ultra-modern machines under the surveillance of trained professionals. We manufacture & Export Plain, Thinwalled, Cut Type as well as Flange bushings in various metals & composition. We manufacture bushings for Automobiles (Cars, Trucks, Tractors) Diesel Engines, Marine Engines, Railways (Locomotives), Earth Movers, Compressors, Generators other rotating & reciprocating machinery. We manufacture these bushings Through Die Casting or extrusion which enables us to manufacture Bushings in Large (Bulk) quantity as well as in small quantity in some of the Products.
Our offered bushes are made available in different specifications of sizes and dimensions to meet vast necessities of our clients. We offer these bushes to our clients at market leading prices.

Features :

• Dimensional accuracy
• Unmatched quality
• Excellent finish
• Durability
• Sturdiness

DU and DUB Type Dry Bush & Bearings (Oil Free) take advantage of the outstanding dry bearing properties of Polytetrafluoroethylene (PTFE) and combines them with strength, stability and good wear resistance, excellent heat conductivity and low thermal expansion. All our Bushings are sold under our "Dev Brand Engine Spares" Brand DU Type consists of three bonded layers:

DU Type consists of three bonded layers:

a steel backing strip and a porous bronze matrix, impregnated and overlaid with the PTFE/ lead bearing material.

• PTFE : 0.010.03mm
• Porous bronze : 0.20.3 mm
• Steel / Bronze backing : 0.72.3 mm
• Tin-plating : 0.005 mm or copper plating : 0.008mm
