Our Products
Our product range contains a wide range of Brass Earthing Tag, Brass Cable Gland Plate and BRASS LINK

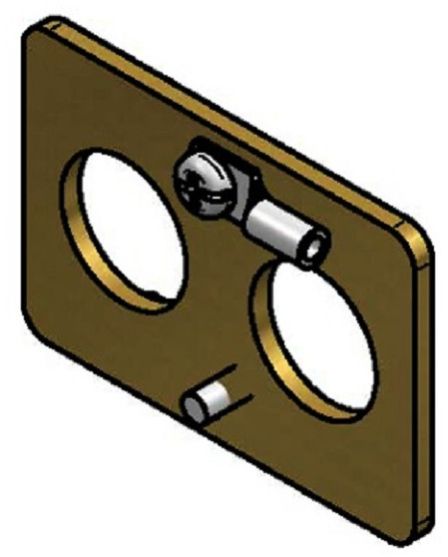

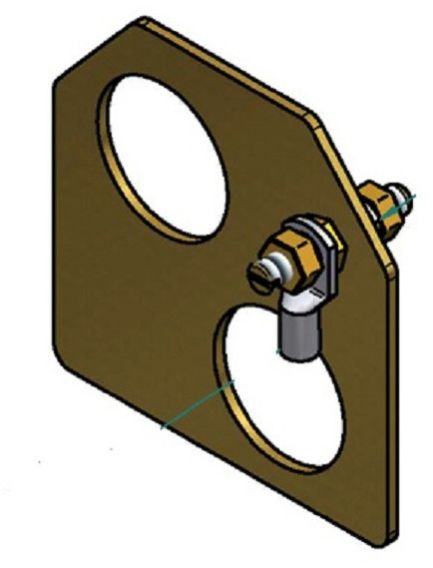

| CABLE GLAND BRASS PLATE | \n\n | \n | \n | \n |
| The Brass Plate are use for Street Light Cut Out extension boxes | \n\n | \n | ||
| Brass Plate have available One Way, Two Way and Three Way External and Internal. | \n\n | \n | ||
| \n | \n | \n | \n | \n |
| Material : Brass | \n\n | \n | \n | \n |
| Hole Size : 20mm, 25mm or 28mm | \n\n | \n | \n | |
| Finished : Natural or Nickel Plated. | \n\n | \n | \n | |
Additional Information:
Payment Terms : D/P, T/T
Packaging Details : export cartons
Delivery Time : AS PER CUSTOMERS ORDER SCHEDULE
| Brass And Copper Sheet Cutting Parts | |||
| The Brass And Copper Sheet Cutting | |||
| Parts are made from very high quality raw material which ensures hassle free | |||
| work performance at its user end These Brass And Copper Sheet Cutting | |||
| Parts are widely finds its applications in various industrial sectors. | |||
| Material : Brass, Copper, Aluminium, Steel | |||
| Design : As per customers Drawing. | |||
| Finished : Natural, Nickel, Tin, Silver, Zinc Plated | |||
Additional Information:
Payment Terms : D/P, T/T
Delivery Time : AS PER CUSTOMERS ORDER SCHEDULE
| Earth Tags | ||||
| Accessories for cable glands, Earth Tags installed between the Cable Gland and equipment, | ||||
| provide an earth bond connection. | ||||
| Metric Size | NPT Size | Thickness | ||
| M16 | 1/2" | 1.3mm | ||
| M20 | 3/4" | 1.3mm | ||
| M25 | 1" | 1.5mm | ||
| M32 | 1 1/4" | 1.5mm | ||
| M40 | 1 1/2" | 1.5mm | ||
| M50 | 2" | 1.5mm | ||
| M63 | 2 1/2" | 1.5mm | ||
| M75 | 3" | 1.5mm | ||
| M90 | 3 1/2" | 2.0mm | ||
| M100 | 2.0mm | |||
| Material : Brass / Aluminum / Stainless Steel | ||||
| Type: CW & BW Cable Glands | ||||
| Terminal Connection : Thread & Without Thread (Screw & Washer) | ||||
| Finished : Natural, Nickel, Tin Plated | ||||
Additional Information:
Payment Terms : D/P, T/T
Delivery Time : AS PER CUSTOMERS ORDER SCHEDULE
