Thermal Lamination Machines

Our Complete range of products are Semi-Automatic Thermal Lamination Machine, Tabel-Top THERMAL LAMINATION MACHINE and Automatic Thermal Lamination Machine.

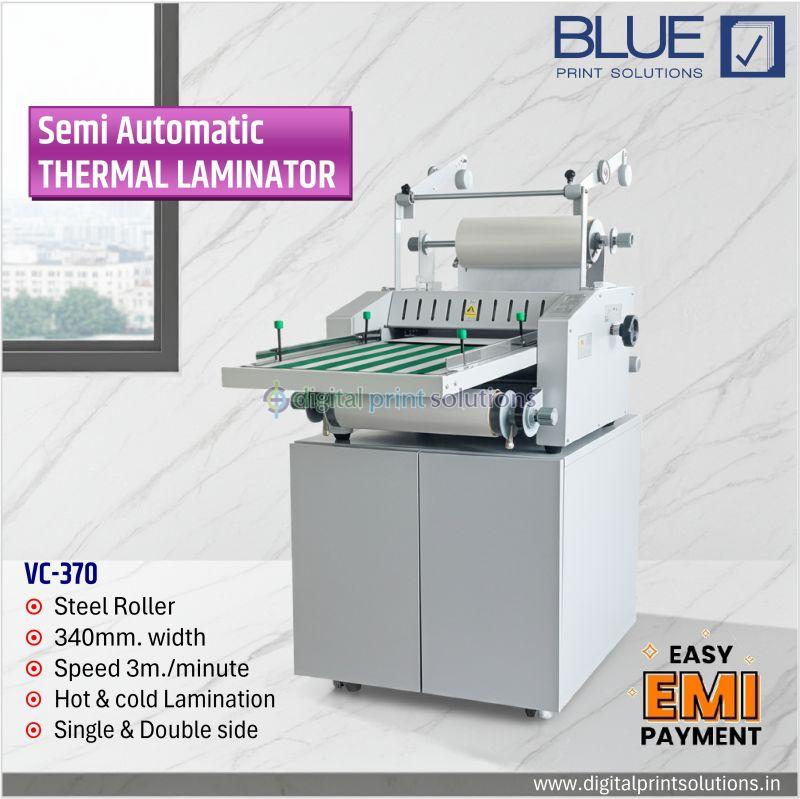

Semi-Automatic Thermal Lamination Machine

₹ 90,000 / Unit Get Latest Price

Min. Order (MOQ) 1 Unit
Country of Origin 220 V / 50/60 HZ
Model Number VC370
Speed 3 Meter / Minute (1-9 speed option)
Heating Roller Steel Roller
Max Film Width 340mm.
Roll Diameter 79mm.
Film Thickness 80g to 350g
Paper Feed Mode Semi automatic (Conveyor Belt System)
Work Mode Single & Double, Hot & Cold Lamination
Membrance Core Diameter 1-3 Inch
Heating Time 5-10m.
Control Mode Key Temperature Control
Display Mode Digital Display
Pressurization Mode Sprint
Trimming Function Automatic Trimming
Dashed Line Function Perforating Knife
Crimp Prevention Function Gravity Stretch Anti-crimp design
Humidity 20% to 70%
Power Consumption 1700 W
Electric Current 5.5 AMP
Net Weight 45 Kg.
Gross Weight 69 Kg
Package Dimension 650*600*670mm.

VC370 an intelligent laminating machine in which belt into the paper, automatic winding, anti curling function. Temperature setting, Double side laminating, Single side laminating, Cold laminating, Speed settings with steel rollers of 79mm. diameter, good thermal conductivity, rapid temperature rise, film delicate high temperature resistance and durable. It have gravity tensile anti coiling design, effectively solve the problem of different thickness of single surface coating curling.

Additional Information:

Payment Terms : T/T

Packaging Details : Packed in International Standard Packaging

Delivery Time : One Week

View Complete Details

Ask Latest Price & Details

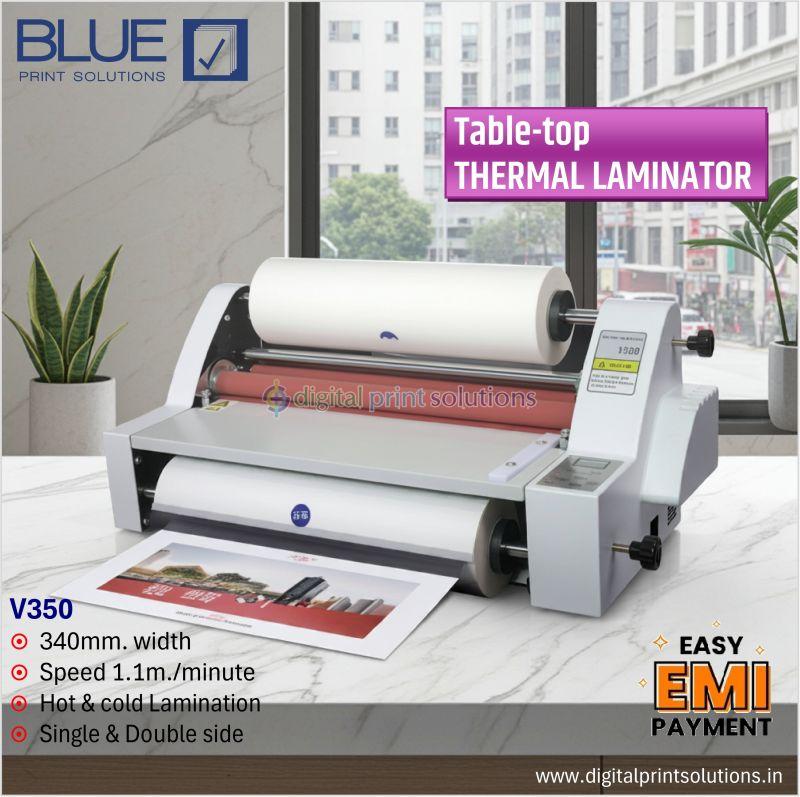

Tabel-Top Thermal Lamination Machine

₹ 20,000 / Unit Get Latest Price

Min. Order (MOQ) 1 Unit
Specialities Hot & Cold, Single & Both Side Lamination
Model Number V350
Lamination Speed 1.1 Meter/Minute
Maximum Film Width 340mm.
Maximum Lamination Temp. 180 Celsius
Membrance Core Size 1 Inch
Paper Feed Mode Manual
Film Thickness 80g to 350g
Control Mode Key Temperature Control
Display Mode Digital Display
Power Consumption 700 W
Power Source 220V / 50/60 HZ
Product Size 530*210*220mm.
Weight NW 7 KG / GW 8 KG

Introducing Best in Class & Cost-effective Roll to Roll Hot & Cold Lamination Machine which is easy to operate and extremely quite with accurate temperature control which assuring high quality laminating.

It's able to be on stand-by are always ready to use. An ideal machine for various type of laminating needs This machine supports Hot & Cold Film Laminating and Single & Double Film Laminating.

Additional Information:

Payment Terms : T/T

Packaging Details : Packed in International Standard Packaging

Delivery Time : One Week

View Complete Details

Ask Latest Price & Details

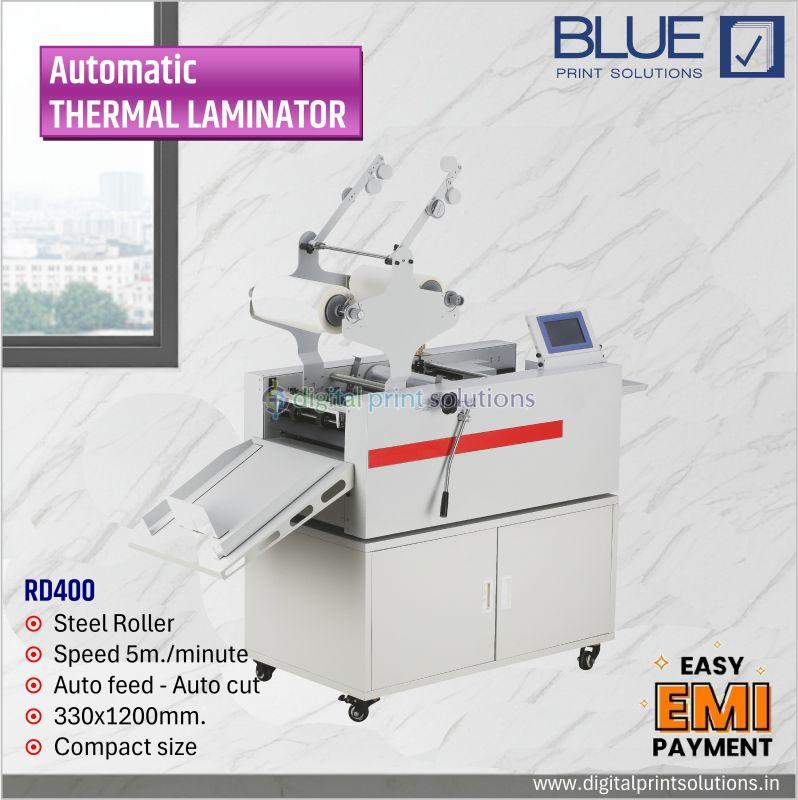

Automatic Thermal Lamination Machine

₹ 1.95 Lakh / Unit Get Latest Price

Min. Order (MOQ) 1 Unit
Model Number RD400
Type of Rollers Steel Rollers
Lamination Speed 5 Meter / Minute
Input Paper Size 148*210mm. (Minimum) to 330*480mm. (Maximum)
Suitable Paper 157-400 gsm / 0.12 - 0.35mm.
Paper Feeding Method Feeder Roller with Air Suction
Feed Tray Capacity 500 sheets (200 GSM)
Pressure Mode Sprint
Briding Accuracy +- 0.5mm.
Bridging way Digital Automatic
Breaking System Motor Control
Stacker Simple Delivery Tray
Heating Mode Electric Heating
Power Consumption 1200 W
Power Supply AC 220V
Weight of Bottom Cabinet 25 Kg.
Machine Packing Dimension 976*695*958mm.
Machine Size 1320*575*1757mm.
Packing Size of Bottom Cabinet 652*604*236mm.

RD400 Intelligent Automatic Laminator a High-precision Stepping Drive Machine which comes with Large 7 Inch Colour Touch Screen, One Key Start, Automatic Paper Feeding, Bridging, Laminating, Breaking. This machine using a new heating way, solve the whole plate white spots, bubbles which support minimum 148x210mm. and maximum 340x1200mm. size of paper and have double film cylinder design, easy to change film, double film cuttig knife design makes breaking easier, accurate anti double sheet adjustment system according to the paper reset to the corresponding scale.

Additional Information:

Payment Terms : T/T

Packaging Details : Packaged in International Standard Packaging

Delivery Time : One Week

View Complete Details

Ask Latest Price & Details
