Model 70310 – Double ended shear beam Load Cell is ideally Suited for truck, Track, Tank and hopper weighing applications. From it’s nickel exterior protection to it’s triple-seal gage area, this cell is designed to withstand the rigorous of harsh environmental conditions. The cell is compatible with the “Unlink” suspension system and is a direct replacement for the 65058. FEATURES:    5Tfto 100Tf Capacities Triples Sealing Electroless Nickel Plated   APPLICATINS:    Truck, Tank and Hopper Weighing Tensile Testing Weighbridge Standard Capacities (Tf.) - 5, 10, 15, 20, 30, 40, 50, 75, 100 Excitation Voltage - 10 VDC – Maximum 15 VDC Nominal Output - 3.0 mV/V Non – Linearity - Hysteresis - Non- Repeatability - Creep (30 Minutes) - Zero Balance - +/- 1.0 % FSO Input Resistance - 770 +/- 20.0 Ohms Output Resistance - 700 +/- 7.0 Ohms Insulation Resistance - > 1000 Mega Ohms at 50 VDC Safe Overload - 150 % of Rated Capacity Ultimate Overload - 300 % of Rated Capacity Allowable Side Load - 50% of Rated Capacity Side Load Discrimination - 500:1 Temperature - 0-60° C Compensated Range - Temperature Effect on Zero - Deflection -

Our company manufactures the best quality RCC Weigh bridge that is manufactured using the finest quality material. It is most suitable for places with limited space e.g. non-hilly areas where the construction of pit is not a costly affair. Since the platform is in level with the ground, vehicles can approach the weighbridge from any direction. Its platform is made of concrete for longer life and zero maintenance, and platform casting is done at site   Features Economical Maintenance free Platform - No painting & Re-painting required Stronger, heavier and more stable Longer life CHigher Safety

The type RC3 is a stainless steel self centering rocker column loas call with complete hermetic sealing. it is a perfect fit for use in harsh industrial environments. Application:  Weighbridges, hoppers, tanks and silos Key Features: wide range of capacities from 7.5t to 300t Stainless steel construction Environmental Protection IP68 with complete hermetic sealing Self restoring design High input resistance Calibration in mV/V/Ω Option:  Integrated surge protectors Approvals: OIML approval to C1 (Y = 5000), C3, C3 MI8 and c4 (Y = 15000) NTEP approval to 6000 intervals, Class III (for 7.5 to 75 t) ATEX hazardous area approval for Zone 0, 1, 2, 20, 21 and 22 FM hazardous area approval Packed Weight: Capacity (t) 7.5, 15, 22.5, 30, 40 Weight (kg) 1.3, 104, 105, 3.3, 3.6 Capacity (t) 50, 100, 150, 300 Weight (kg) 4.5, 4.7, 8.5, 26.5 Available Accessories: Compatible range of application hardware Compatible range of electronics

Digital Weight Indicator ELP – 305 is a sophisticated, microcontrolled Electronic Digital Weight Indicator, Software Calibrated, Password Protected which ensures Higher Accuracy & excellent repeatability. Diligent Industrial intelligent Terminal have user-friendly software, fully solid state circuitry without floppy/hard disc. They are suitable for operation in harsh environment and have parallel centronics output for connection to most printers. Intelligent Terminal model is a computer specially designed for weighbridge applications, and is used at weighbridges for printing weighment slips and generating weighment reports. Customers can select various software options available   Features Sleek Table Top Design Easy To Operate Tamper Proof Very Good Visibility - Back-lit LCD IBM Compatible Keyboard High Record Storage Various Report Options

Suitable, if there is space limitation, as the ramp are not required in either side, Flush to ground level, Designed for heavy usage and harsh environment, Easy movement of vehicles on platform

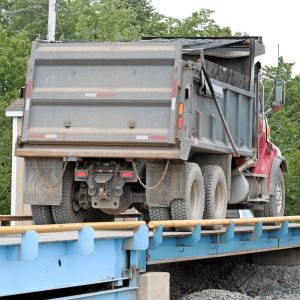

Pit less weigh bridge is Low Profile Electronic Weighbridge versatile and easy to install. Each weighbridge platform is constructed of mild steel comprising of two main I-Beams and transverse with I-Beams fully welded to form a rigid structure. Mild-steel chequered plates are welded on it to complete the structure. This type of weighbridge is most suitable where the excavation work for foundation is difficult or construction of pit is expensive. Since the structure is above ground level, vehicles can approach the weighbridge only from two directions where the ramps are provided. It is useful in areas where hazardous gases are present in the atmosphere where, the soil is rocky and in low-lying areas where water logging is a problem. Surface mounted foundations comprise flat solid raft with concrete approach ramps. Service access for load cells maintenance and horizontal restraint adjustment is through the platform surface and side after cover plate removal.   Features Low civil cost with lesser excavation is required The load cells and the top of deck plate are above the ground level, facilitating easy maintenance No high water table or drainage related problem It is useful in areas where hazardous gases are present in the atmosphere where the soil is rocky
