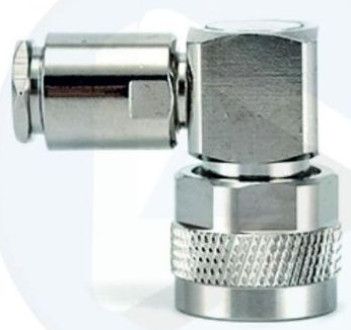

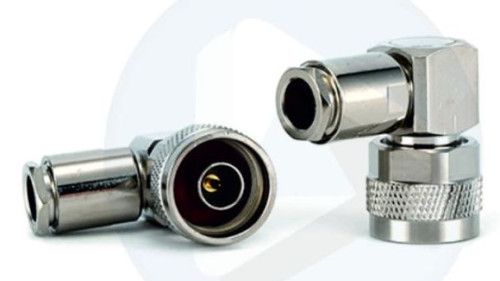

Dipeshwari Engineering Works N Connector Technical Specifications:

• Impedance: Standard 50 ohms for consistent signal integrity.
• Connector Type: N-Type, available in both male and female configurations.
• Material: High-quality materials like brass or stainless steel for durability and conductivity.
• Termination: Solder or crimp options for flexible assembly requirements.
• VSWR (Voltage Standing Wave Ratio): Low VSWR for efficient signal transmission.
• Durability: Robust design by Dipeshwari Engineering Works for long-lasting and reliable performance.
• Temperature Range: Wide operational range for adaptability to different environments.
• Applications: Widely used in RF and microwave systems, telecommunications, and antennas.
• Standards Compliance: Meets industry standards to ensure quality and performance.

Choose Dipeshwari Engineering Works for N Connectors that offer precision, durability, and reliable performance in various high-frequency applications.

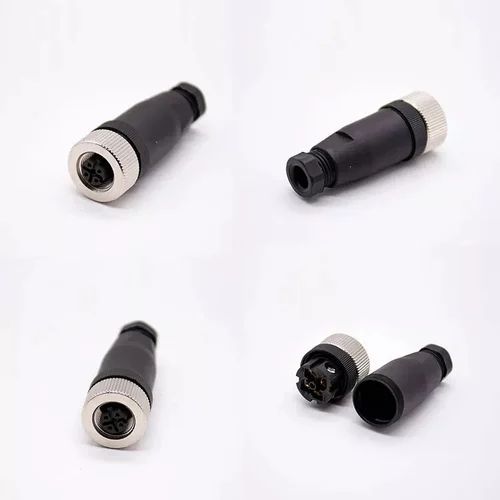

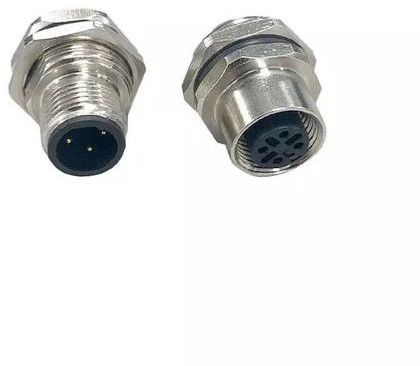

M12 Circular Connector Technical Specifications:

• Connector Type: M12, available in straight, right-angle, or panel-mount configurations.
• Number of Contacts: Varied options, including 3, 4, 5, 8, or more pins.
• Coding: Different coding options to prevent mismating.
• Termination Type: Supports solder, crimp, or screw-type terminals.
• Voltage Rating: Depending on the model, with a specified maximum voltage.
• Current Rating: Specifies the maximum current-carrying capacity.
• IP Rating: Commonly IP67 for dust and water resistance.
• Materials: Constructed with durable materials like metal or plastic.
• Temperature Range: Operational in a specified temperature range.
• Shielding: Some models include options for electromagnetic interference (EMI) shielding.
• Locking Mechanism: Typically features a secure screw-locking mechanism.
• Compliance: Meets industry standards, such as IEC 61076-2-101.
• For precise details, refer to the datasheet or contact the manufacturer, ensuring suitability for specific applications.

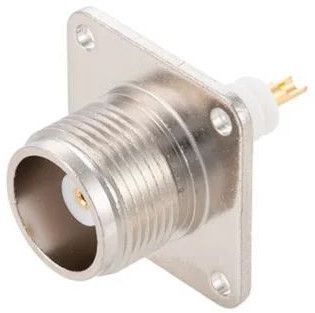

•  HN (Holt-Threaded Neill-Concelman) RF connector.
• Impedance: Standard impedance is typically 50 ohms.
• Frequency Range: Designed for use in high-frequency applications.
• Termination Type: Available in various termination options such as solder or crimp.
• Material: Constructed with materials like brass or stainless steel for durability and conductivity.
• Voltage Rating: Specific to the connector model, with a specified maximum voltage.
• Current Rating: Specifies the maximum current-carrying capacity.
• Durability: Robust design for long-lasting and reliable performance.
• Temperature Range: Operational in a specified temperature range.
• Applications: Suitable for RF and microwave applications where a threaded coupling mechanism is preferred.
• For accurate and up-to-date information, it's recommended to refer to the datasheets provided by the manufacturer or contact Dipeshwari Engineering Works directly for the latest technical specifications of their HN Connector.
