Metal Spinning Machine

We offer a complete product range of CNC Metal Spinning Machine SSGS1600

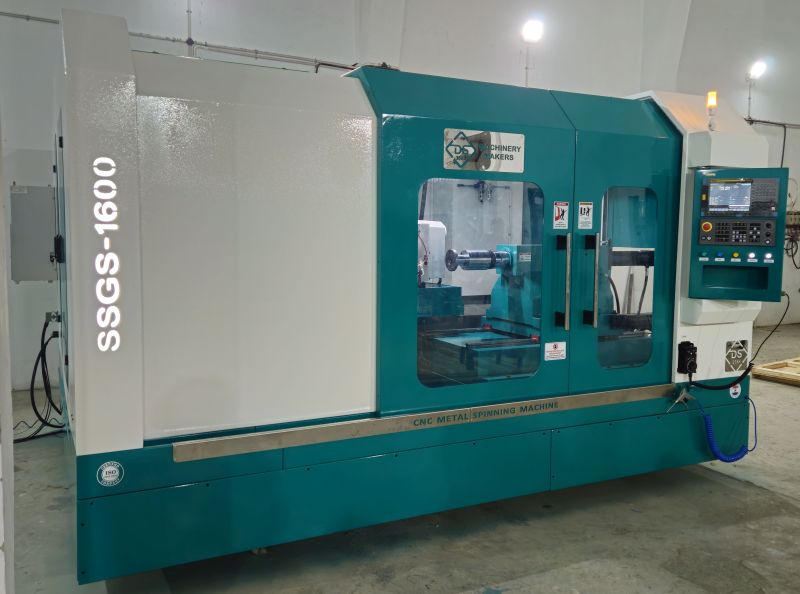

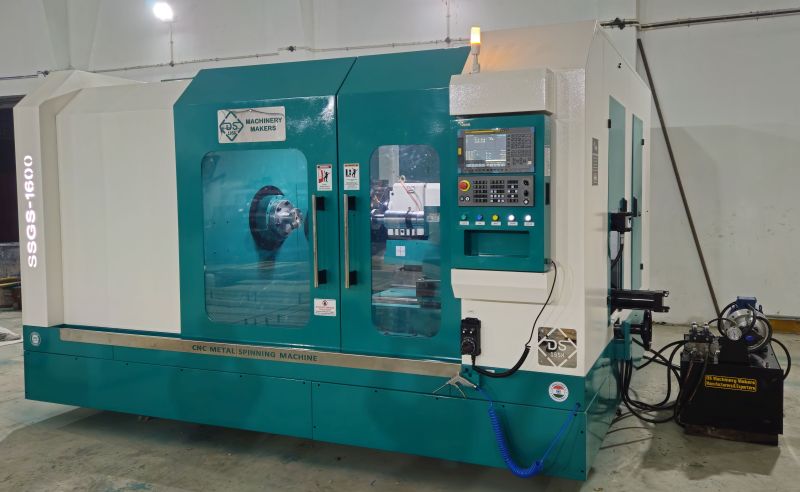

CNC Metal Spinning Machine SSGS1600

CNC Metal Spinning Machine SSGS1600
  • Min. Order (MOQ) 1 piece
  • Brand Name DSMM
  • Model SSGS1600
  • Max. Dia Of Material 1600 mm
  • X Travel Displacement 750 mm
  • Z Travel Displacement 750 mm
  • Thickness of Work Piece Aluminium = .5 to 8mm Mild Steel = .5 to 4mm Copper = .5 to 8mm Stainless Steel = .5 to 3
  • Guide Rail Type Linear Guide Rail
  • Axis motor Ac servo motor
  • Control System FANUC, SIEMENS 828D
  • Servo Power X/Z 22 NM * 22NM
  • Pushing force for z axis 100 kN
  • Pushing force for x axis 100 kN
  • Travel of Tailstock 700 mm
  • Taper of tail stoke quill MT8
  • Amount of Tool 8
  • Spindle Motor Power 30KW
  • Hand Tools 1 Set

Standard Configurations & Main Feature:-

  • CNC controlled
  • Machine specialized tor spinning, shear forming and machining.
  • One ortwo working slide
  • Siemens 808D panel as standard CNC system which has USB port.

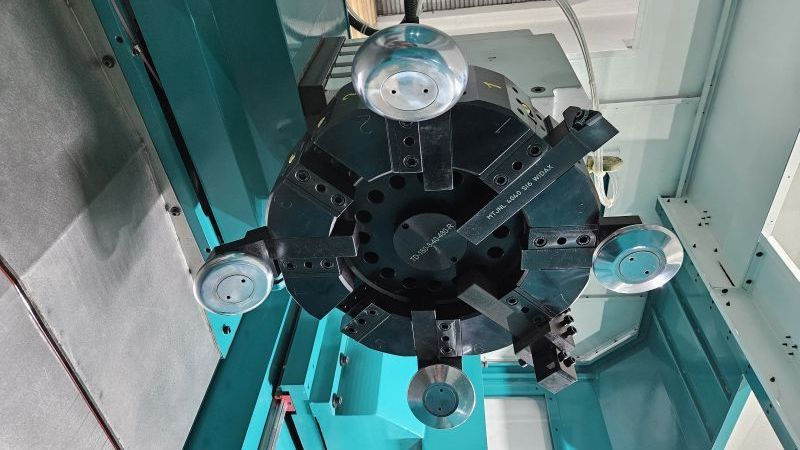

  • Automatic Centering unit
  • Stationarytrimming blade
  • Automatic lubricant spray unit

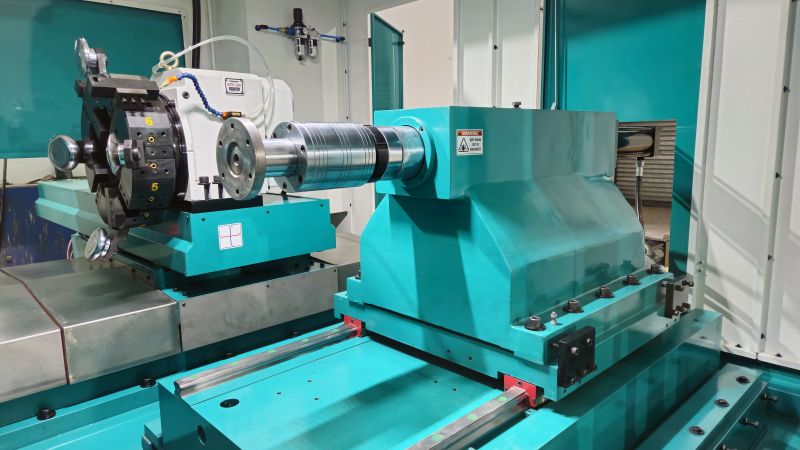

  • Automatic positioning of tailstock
  • Precision ball screws ensure dynamic performance well and positioning accurately
  • Siemens/Fanuc/delta make servo system
  • Feeding axles are controlled by servo motors.
  • Hydraulic & Pneumatic tailstock.
  • Integrated automatic lubrication system makes the maintenance more reliable.
  • Semi-enclosed shield for safe working.



The Function and Application Scope:-

CNC Spinning Machine is especially developed to spin kitchenware, lamps, auto Fittings, ventilations and art wares.



This machine is practical, professional and strong. It has high production efficiency and can complete horn, bucket, cone type, parabolic products.



The machine can spin many materials such as steel, alloy and copper etc. It has solved the traditional problems such as lack of skilled workers. With advanced digital control, it is easy to operate.



The machine can improve the production efficiency, machining accuracy and saving the cost of human resources. It is the ideal processing machine for light, automobile, military, mechanic and other manufacturing industries.



Note:- As improvements are made from time to time these specifications are subject to change without notice
