1 Products availableWe offer the best product range of Silica Sand for Foundries, Silica Sand for Water Filtration, Silica Sand for Glass Production, Silica Sand for Golf Course and Silica Sand for Horse Racing Track.

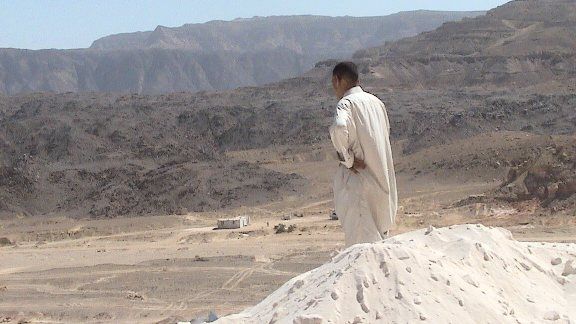

We are the main manufacturers, exporters, and suppliers of Silica Sand for Foundries in Cairo, Egypt. We offer high-quality and high deposit silica sand since thousands of years. We have huge reserves of the sand in Egypt with quality content of 99.10% Sio2 and iron content from 0.018%-0.0.35%. The Silica Sand for Foundries is ISO 9001 Certified and it is high resistance sand. The main property of Silica Sand is that its high quality with high whiteness and low amount of Al2o3 supports high casting products, which in turn, are used by car factories.
Chemical Analysis
Oxides | % |
---|---|
SIO2 | 99%Min |
FE2O3 | 0.0250-0.030 |
AL2O3 | 0.0150-0.300 |
TIO2 | 0.02500 |
CR2O3 | 0.0020 |
Moisture | 0.40 |

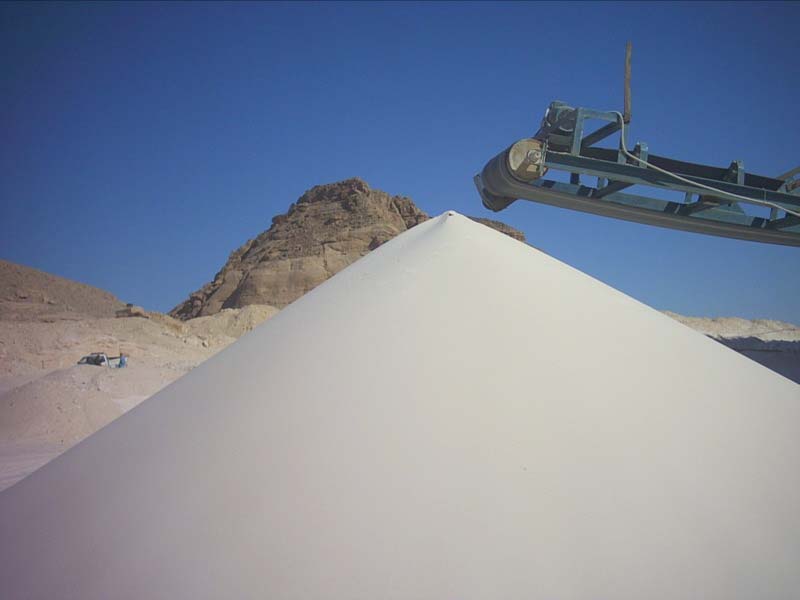

We are the main manufacturers, exporters, and suppliers of Silica Sand for Water Filtration in Cairo, Egypt. We pride in providing superior quality products and we produce and process our products in our own screening plant, which is the biggest in Egypt. The Silica Sand is a grey/white, yellow or multi-coloured granular material and its practical shape is spherical or angular, Cairo Filter Sand is used to filter and clean portable water filters, pool filter and sewage treatment plant purity more than 96%. As a result, it is free of any organic materials, no clay, radiation and toxic materials.
Characteristics
Characteristics | Brown/Yellowish(off White ) |
---|---|
SiO2 | 96.90% |
Fe2O3 | 0.29% |
AL2O3 | 1.00% |
K2O | 0.070% |
Turbidity | <100 |
Hardness | 6 – 7 Mohr |
Attrition Loss | below 1% in 100 hours backwashing |
Acid Solubility | below 2% [24hours in 20% Hal] |
Sample Of Grades Of Filter Sand And Filter Gravel Produced In Our Screening Plant
Silica sand Sizes according to EN12904&ANSI/AWWA B100-01//BS:910(1969)
Silica sand for filtration size | 0.4mm | 0.8mm |
Silica sand for filtration size |
0.40mm |
1.30mm |
Silica sand for filtration size | 0.20mm | 0.70mm |
Silica sand for filtration size |
0.40mm |
1.60mm |
Silica sand for filtration size | 0.40mm | 2mm |
Silica sand for filtration size | 0.50mm | 1mm |
Silica sand for filtration size | 0.50mm | 2mm |
Silica sand for filtration size | 0.6mm | 1.18mm |
Silica sand for filtration size | 0.63mm | 1mm |
Silica sand for filtration size | 0.60mm | 1.50mm |
Silica sand for filtration size | 0.60mm | 2mm |
Silica sand for filtration size | 0.60mm | 2.60mm |
Silica sand for filtration size | 0.85mm | 1.7mm |
Silica sand for filtration size | 1mm | 1.6mm |
Silica sand for filtration size | 1mm | 2mm |
Silica sand for filtration size | 1mm | 2.50mm |
Silica sand for filtration size | 1mm | 3mm |
Silica sand for filtration size | 1.18mm | 3.2mm |
Silica sand for filtration size | 1.60mm | 2.50mm |
Silica sand for filtration size | 2mm | 3mm |
Silica gravel for filtration size | 2mm | 4mm |
Gravel for filtration size | 2mm | 6mm |
Filter gravel media size | 2.36mm | 4.75mm |
Silica Gravel Sizes According To EN12904&ANSI/AWWA B100-01/BS:910(1969)
Filter Gravel size | 3.15mm | 5.6mm |
Filter Gravel size | 3mm | 6mm |
Filter Gravel size | 5.6mm | 8mm |
Filter Gravel size | 6mm | 12mm |
Filter Gravel size | 6mm | 13mm |
Filter Gravel size | 6mm | 20mm |
Filter Gravel size | 8mm | 12.50mm |
Filter Gravel size |
12.50mm |
16mm |
Filter Gravel size | 13mm | 20mm |
Filter Gravel size | 13.5mm | 26mm |
Filter Gravel size |
20mm |
50mm |
Filter Gravel size | 25mm | 40mm |

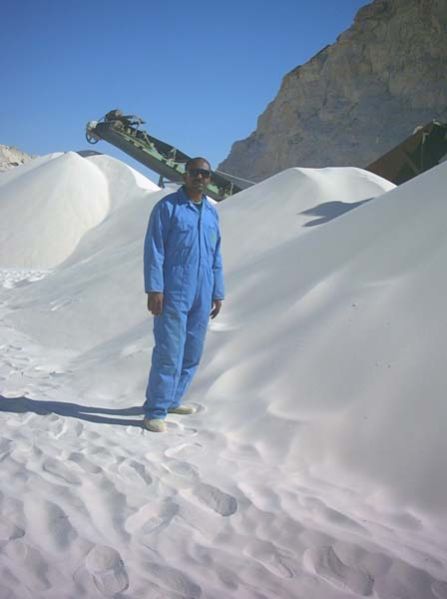

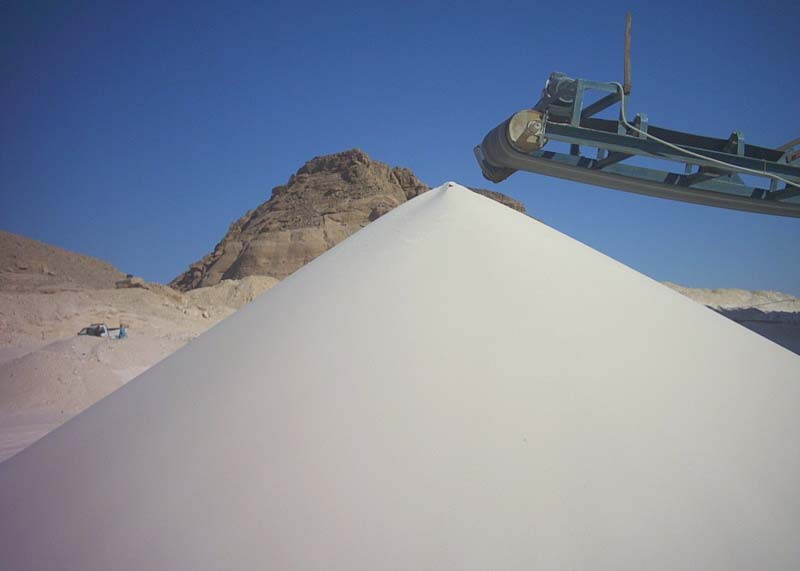

We are the main manufacturers, exporters, and suppliers of Silica Sand for Glass Production in Cairo, Egypt. The Silica Sand is available in Egypt and the purity level of that sand exceeds 99.3%. While we supply high-quality sand, the Silica Sand for Glass Production is mainly used for manufacturing different types of glass like float glass, glass sheets, glassware, tableware, crystal, bottles and container glass. It is a white-colored sand and semi-round or angular in shape. The highest content of SIO2 and lowest iron content is the main element in focusing and comparison of Silica Sand.

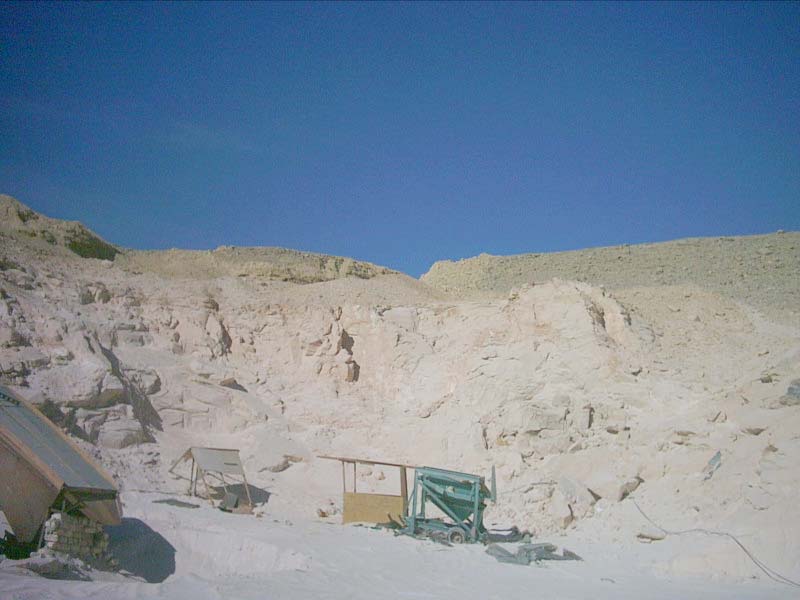

1-Silica Sand 150MUL (ABOU ZENIMA) Chemical Analysis
Oxides | % |
---|---|
SIO2 | 99.3-99.5% |
FE2O3 | 0.0150 |
AL2O3 | 00.20-0.30 |
TIO2 | 0.02500 |
CR2O3 | 0.0020 |
Moisture | 0.40 |
Characteristics
Color | White |
---|---|
Grain Shape | Semi round- Angular |
Bulk Density | (1400 – 1570 kg/m3) |
Specific Gravity | 2.2 – 2.5 |
Turbidity | <100 |
Hardness | 7 Moh |
Attrition Loss | below 1% in 100 hours backwashing |
Acid Solubility | below 2% [24hours in 20% Hal] |
Chemical Analysis
+0.630MM | 1% MAX |
-0.125MM | 3%MAX |
Silica Sand 250-300MUL (ABOU ZENIMA) Chemical Analysis
Oxides | % |
---|---|
SIO2 | 99.3-99.5% |
FE2O3 | 0.0150 |
AL2O3 | 00.20-0.30 |
TIO2 | 0.02500 |
CR2O3 | 0.0020 |
Moisture | 0.40 |
Characteristics
Color | White |
---|---|
Grain Shape | Semi round- Angular |
Bulk Density | (1400 – 1570 kg/m3) |
Specific Gravity | 2.2 – 2.5 |
Turbidity | <100 |
Hardness | 7 Moh |
Attrition Loss | below 1% in 100 hours backwashing |
Acid Solubility | below 2% [24hours in 20% Hal] |
Chemical Analysis
+0.630MM | 1% MAX |
-0.125MM | 3%MAX |

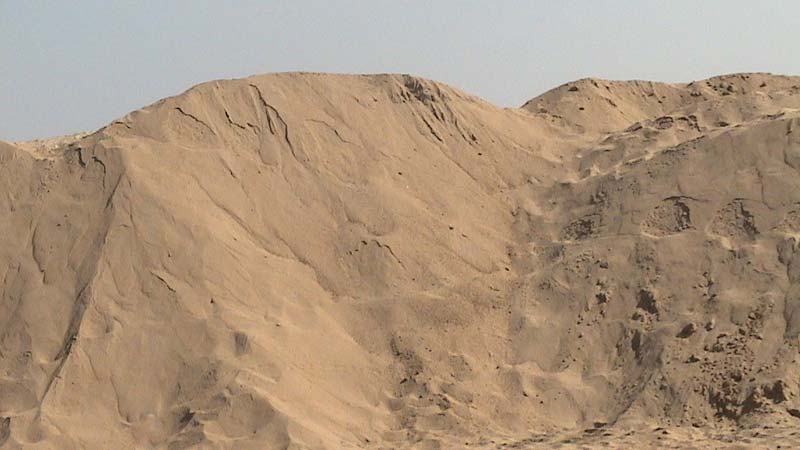

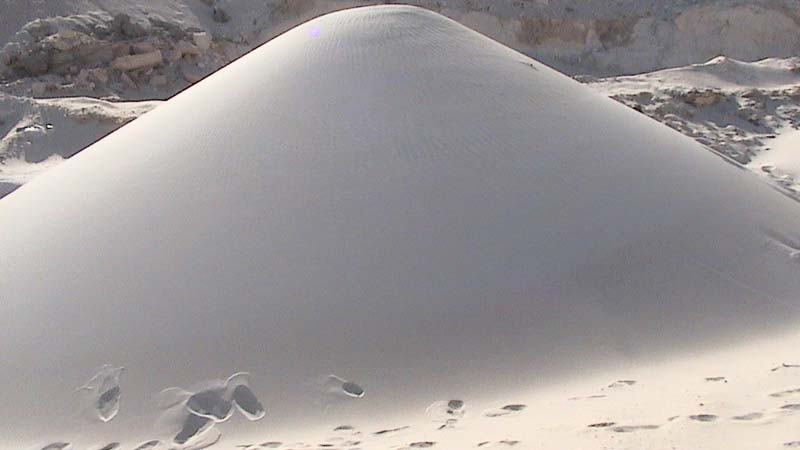

We are the leading manufacturers, exporters, and suppliers of Silica Sand for Golf Course in Cairo, Egypt. As per the USGA B, we produce and supply different colors of sand and we offer two different varieties of gold course sand namely White quartz silica sand with high purity more than 99.3 % and yellowish color sand with purity of 96.7 %. We pride in supplying high quality Silica Sand for Gold Course and the quality control is checked on our site lab by sieving test analysis. We value our Indian and global customers and we accept customization of packing as per the request of the buyer.
Particle Size Distribution
Name | Particle Diameter | Recommended USGA | |
---|---|---|---|
Fine Gravel | mm. 2,0-3,4 | <3% (BETTER ABSENT) | <10% |
Very Coarse Sand | mm. 1,0-2,0 | < 7 % | |
Coarse Sand | mm. 0,5-1,0 | <45% | 60-85% |
Medium Sand | mm. 0,25-0,5 | >35% (IDEAL 75%) | |
Fine Sand | mm. 0,15-0,25 | <20% | -- |
Very Fine Sand | mm. 0,05-0,15 | <5% | -- |
Silt | mm.0,002-0,05 | <5% | -- |
Clay | mm <0,002 | <2% | -- |
Physical Property
PHYSICAL PROPERTY | RACCOMENDED RANGE |
---|---|
Total Porosity | 35 %-55 % |
Air-filed Porosity (at cm. 40 tension) | 15 %-30 % |
Capillary Porosità (at cm. 40 tension) | 15 %-25 % |
Saturated ConductivityNormal Range
Accelerated Range |
6-12 inches/hr (15-30 cm/hr)12-24 inches/hr (30-60 cm/hr) |
We are the leading manufacturers, exporters, and suppliers of Silica Sand for Horse Racing Track in Cairo, Egypt. We offer supreme quality of Silica Sand for Horse Racing Track. Silica Sand is rounded dry sand free of organic materials and impurities. It has a high purity of 96.7-99 % and free of toxic and radiations. Silica Sand consists of 100% Natural Sand and its turbidity is less than 100. It is available in different sizes.

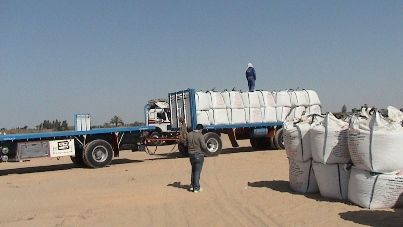

Packing : bag of 25Kg, bag of 1500Kg, and can be in pallets or loose in pallets.
Cairo Minerals Offer the Silica sand with High Quality for horse racing track
Available sizes :
We are the leading manufacturers, exporters, and suppliers of Pool Filter Sand in Cairo, Egypt. We offer Pool Filter Sand and Pool Filter Gravel in different grades and the Pool Filter Sand is extracted from deep and high deposit of Silica Sand. Pool Filter Sand consists of 100% natural sand, and it is free of radiation and any form of toxic materials. It has a high purity level of 96.7-99% and turbidity less than 100. The Pool Filter Sand is free of organic materials and impurities and consists of no heavy metals. We ensure safe delivery of the sand.
