GST : 08AADCE3365J1ZI
4.6/5
Our Products
Our product range contains a wide range of 28KVA Biomass Gasifier, ESB-R Bio-nature Biomass Stove, ESB-R Bio-mini Solar Biomass Stove, ESB-R Green-Agnika10 Biomass Stove and ESB-R Harit-Agni12 Biomass Stove
Specifications
| Brand Name | Enersol Biopower® |
|---|---|
| Capacity | 284KW (35KVA) |
| Model Name | ESB-R BIO-28 |
| Model No. | ESB-R28 |
| Fuel | 100% Biomass |
| Type of Gasifier | Downdraft Gasifier |
| Man power required | 1.2nos |
| Auxiliary power required | 3.5hp |
| Biomass consumption per hour | 42kg/hr. |
| Gas flow (NM3/hr.) | 84NM³/hr. |
| Thermal output at 100% | 105,000Kcal/hr |
| Thermal output at 80% | 84,000 Kcal/hr. |
| Gasification temperature | 1050- 1100°C |
| Average gas calorific value | ≥1000 |
| Biomass feeding system | Manual / Automatic |
| Ash removal system | Manual |
| Ash content | 5-7% |
| start up | Auto ignition |
| Acceptable moisture in biomass | less than 20% |
| Material of construction | Mild Steel, Ceremic Brick & Stainless Steel |
| Water tank capacity | 700-800ltrs. |
| Producer gas genset capacity | 28KW (35KVA) |
| Starter | 12V starter |
| Power factor | 0.8 P.F. |
| Governor | Mechanical / Electronic governor |
| Phase | Three phase |
| Amps per phase | 45amps/phase @100% 36amps/phase at 80% (three phase) |
| Frequency | 50Hz |
| Voltage | 415V |
| Engine Ignition system | Spark Ignition |
| Stroke | Four stroke engine |
| Bore x Stroke | 107 x 120 |
| Rated speed | 1500RPM |
| No of cylinder | Six cylinders |
| Lube oil sump capacity | 18ltrs. |
| Cooling system | water cooled |
| Control panel | provided |
| Battery | Exide |
| Acoustic enclosure (canopy) | yes |
| Weight | 3-3.5ton |
| Size (Gasifier) | L18 x W15 x H20 (feet) |
Click Here To View Catalogue

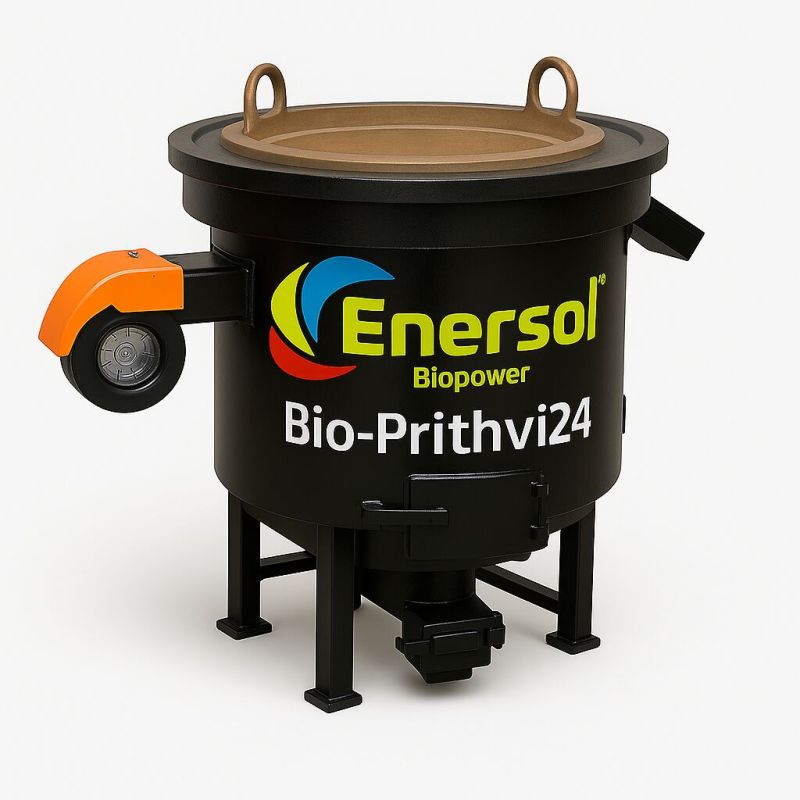

Bio-Prithvi24 Commercial Smokeless Biomass Stove Enersol Biopower
, Save Fuel, Save Money, Cook Green
TheBio-Prithvi24(Model: ESB-R/BP24) is a compact yet powerfulsmokeless biomass stovedesigned forconfectionery, food processing, and large-scale commercial kitchens. Delivering heat output equivalent to LPG while cutting production costs byover 60%, it is a sustainable, eco-friendly alternative for industries looking to reduce operational expenses.
Manufactured byEnersol Biopower Pvt. Ltd., a pioneer in biomass-to-energy solutions since 2013, this stove is built for durability, efficiency, and long-term savings.
Technical Specifications
Model Name:Bio-Prithvi24
Model Number:ESB-R/BP24
Fire Zone Diameter:24 inches
Thermal Output:62, 500 75, 000 Kcal/hr
Biomass Consumption:2530 kg/hr
Thermal Efficiency:35.5%
Power Required:200W (100W + 100W blowers)
Dimensions:H28 W37 (71.12 93.98 cm)
Weight:320 kg
Fuel Mode:100% Biomass (wood waste, briquettes)
Stove Type:Forced-draft
Feeding Mode:Manual side feeding
Material:Mild Steel & Ceramic Brick
Accepted Fuel Moisture:20%
Ash Removal:Manual
Flame Control:Adjustable regulator
Packing:Industrial-grade plastic wrapping with secure strapping (no carton)
Key Benefits
Up to 60% more profitablethan LPG/diesel-based machines
Cost recovery within 6 monthsof operation
Compatible with wood waste or briquettes
Eco-friendly, low-emission combustion
Durable construction for industrial use
Ideal Applications
Namkeen manufacturing
Banana chips production
Ayurvedic medicine preparation
Bundi-dana & laddoo making
Paneer/Chhena processing
Langar kitchens (Gurdwara, temples)
Sweet manufacturing units
About Enersol Biopower Pvt. Ltd.Founded in 2013 by innovatorMr. Rai Singh Dahiya, Enersol Biopower is a leading manufacturer ofbiomass gasifiers, smokeless biomass stoves, and dry filtration systems. With a strong focus on sustainability, they deliver cost-effective, swadeshi solutions for diverse industries.
Contact us todayto get your Bio-Prithvi24 and start saving from day one!
Additional Information:
Payment Terms :
Packaging Details : Basic Plastic packing
Delivery Time : 15days
Mrs. Gayatri Dahiya (Enersol Biopower Private Limited)
96-97, Kirti Sagar, Badarwas, Bypass, Gopalpura, Jaipur, Rajasthan - 302020, India
