Excel Magnetics

Kathwada, Ahmedabad, Gujarat

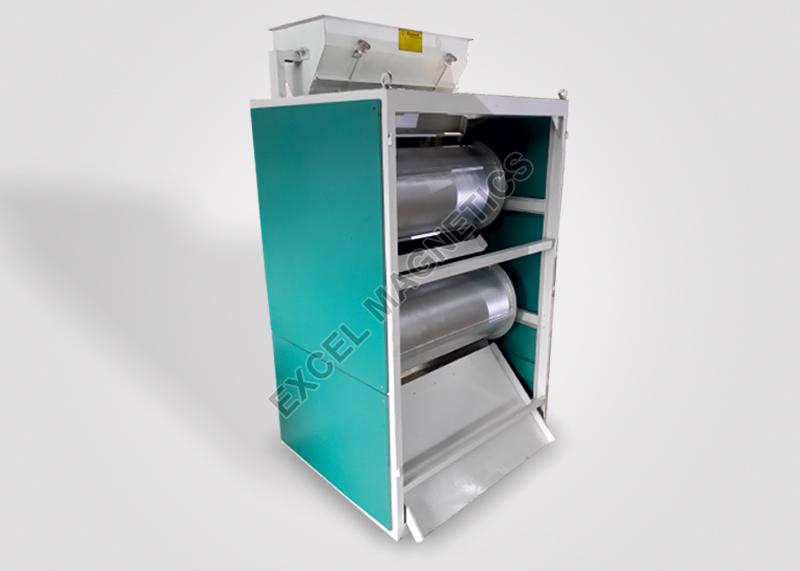

Double Drum Type Magnetic Separators are available for highest purity. The material passes through the magnet twice time drum separator and High power permanent Magnetic Plate is provided at material outlet. They are comprised of a stationary permanent magnet, either standard Ferrite Magnets or High Power Rare Earth Magnets enclosed in a non-magnetic stainless-steel drum. Product flow is diverted so that it falls onto the top and flows across the surface of the drum. Ferrous matter contained in the product flow is drawn to the drum's surface by the powerful magnet housed inside.

We are one of the leading Manufacturers, Suppliers, Distributors of this highly commendable range of Inline Separator

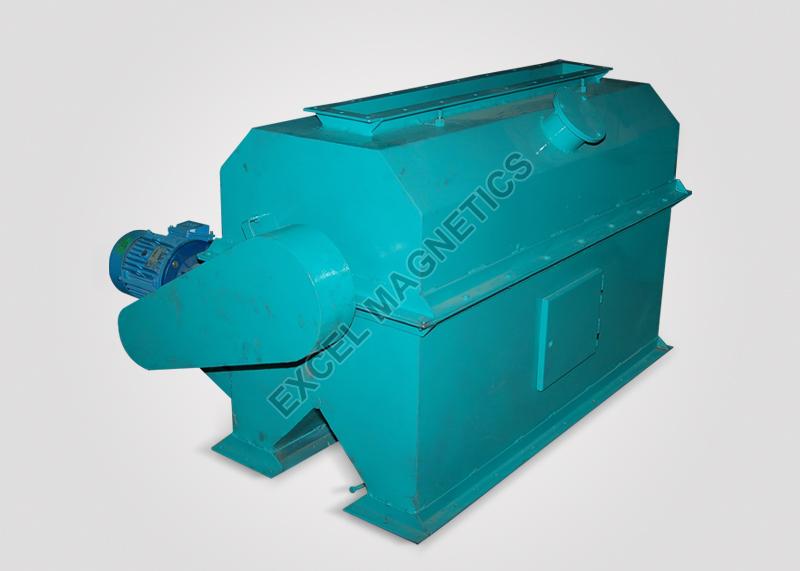

Excel Magnetics is involved in the manufacturing of inline magnetic separators. Our inline magnetic separators are installed in the feed lines such as at the outlet of elevator, screw conveyor etc. We manufacture inline magnetic separators in two configurations: Flanged type Inlet and outlet connections are provided. The Magnetic Drum incorporates High Intensity strontium / Rare Earth Magnets. These are widely used for Cattle Feed Plants, Flour Mills, Rice Mill, Minerals, Refractories, Glass and many other Products.

Salient Features

• Drum Consists Of High Coercivity Modern Anisotropic Permanent Magnets.
• Strong & Rugged Construction.
• Automatic Separation Of Iron Impurities.
• Completely Enclosed Design To Avoid Dusting And Pollution.

We are one of the leading Manufacturers, Suppliers, Distributors of this highly commendable range of Wet Drum Magnetic Separator

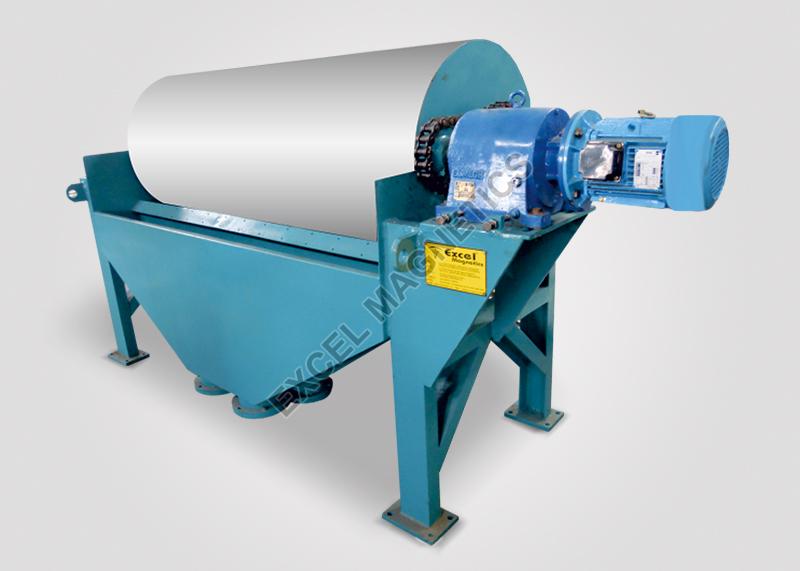

The Wet Drum Magnetic Separator is used to remove very fine magnetisable components from low concentration, low-viscosity liquids. The wet separator is intended for use in the metal processing industry and for the treatment of preconcentrates extracted from the high gradient magnetic filter.

The liquid flows through a semicircular separating chamber beneath a stainless steel drum to which the magnetisable particles are attracted. The strong, high-gradient magnetic field is created by a cylinder consisting of permanent magnetic discs positioned within the drum. These special permanent magnets generate particularly high field gradients which are necessary for successful separation, as is the need with all magnetic separators. Wet drum magnets have high magnetic recovery and discharge The feed slurries recover the magnetic. It is available in single or multiple drum applications. The drum is made from thick stainless steel for long service life. Wet drum separators are available in different configuration like single drum, double drum and multiple drum.

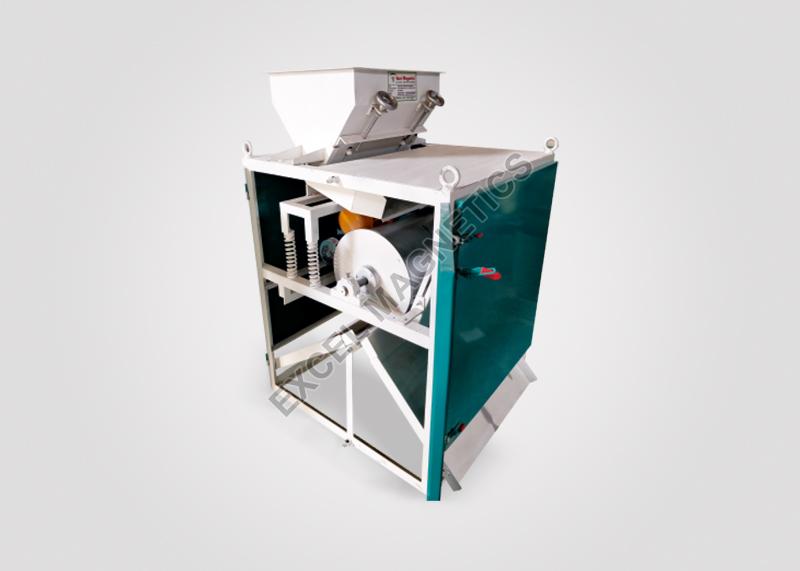

Single Drum Type Magnetic Separators are available for in medium and high intensity magnet. The material passes through the magnet drum type Machine respectively. These are widely used for separation of iron contamination from Minerals, Chemicals, Refractories and many other products. High power permanent Magnetic Plate is provided at material outlet. Modern An-Isotropic Permanent Magnets are used having highest magnetic strength. Machines are available with vibrating material inlet Hopper and totally enclosed design to avoid dusting and pollution

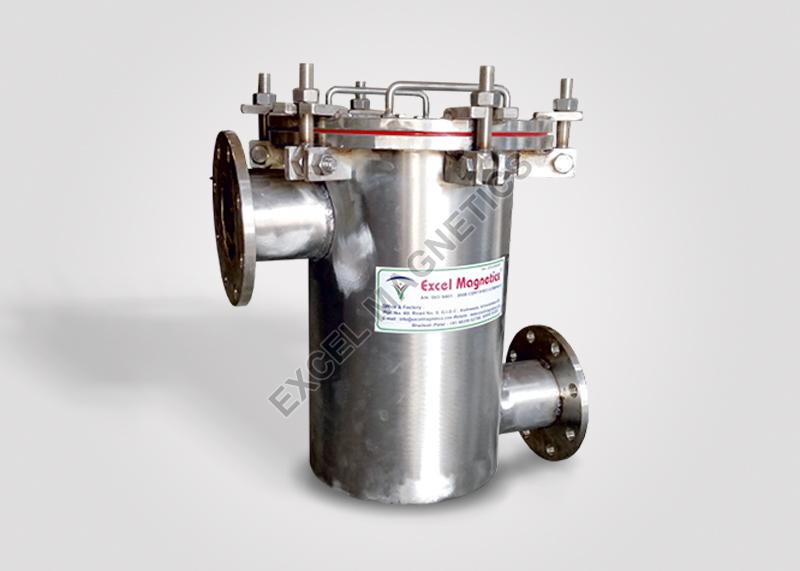

Excel Magnetics offers Pipeline Magnetic Separator for heavy-duty large volume liquid and semi-liquid line flow systems. We offer Pipeline Magnetic Separator for liquid/slurry materials, T-trap magnetic separators. In stainless steel permanent magnet tubes, the T-Trap employs a slip in the cage. In magnet tubes, the captured tramp metal particles migrate to the rear of the tubes where they remain protected from wash - off until the tubes are cleaned. The magnet cage has positioning lungs that meet with locating recesses in the body of the T-Trap preventing rotation as fluid flows through the trap. Having a top access bolt-on steel plate and seal, the T-Trap is easy to clean. With the top, the magnet cage is simply lifted out, wiped clean and reinstalled. We offer Pipeline Magnetic Separator in 7 standard line size.

We are one of the leading Manufacturers, Suppliers, Distributors of this highly commendable range of Over Band Magnetic Separator

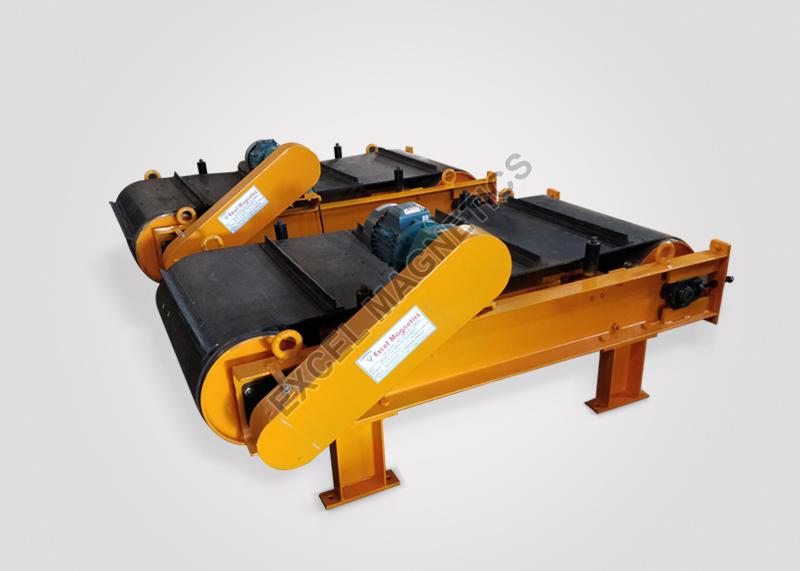

Over Band Magnetic Separators are designed to eliminate tramp metal from the product carried by belt, Used in Recycling, quarrying and heavy industries.

Positioned above flat or trough type conveyors to continuously removed tramp iron and other ferrous contamination from bulk items. Large permanent magnetic packs generate deep penetrating magnetic flux fields.

The Magnet is made of High Intensity Strontium Ferrite Magnets and Rare Earth magnet are guaranteed for the Magnetic Power through out the life of installation. A Non - Magnetic Stainless steel Plate is provided to cover the poles of Magnet. There is no need for any electrical supply or maintenance.

Rubber belt is driven around two rollers with the magnetic pack positioned in the centre. Other separators used over conveyor belts include: conveyor head rollers, strip magnets, hinged strip magnets, deep field plate magnets

We are one of the leading Manufacturers, Suppliers, Distributors of this highly commendable range of Magnetic Roller Separator

Magnetic Roller Separator are designed to remove micro iron or para-magnetic material from mineral and ceramic raw material.

Double Roller Separator

Double Stage Roller Separators are available for highest purity. The material passes through the magnet twice time from high intensity roller, excel magnetics made High intensity magnetic roller separator are design for very fine quality separation Which has been used successfully in Industrial Minerals applications. The Machine incorporates high energy Rare Earth Neodymium Permanent Magnetic Roller Assembly.

Triple and Multi Roller Separator

Triple and Multi Roller Magnetic Separators for highest purify material passes through the magnet multi stage roller separator and provided at material outlet .the material flow in hopper then its come on vibrator. Product flow is diverted so that it falls across the surface on roller belt Ferrous matter contained in the product flow is drawn to the roll's surface (and held against it) by the powerful magnet housed inside.

Here we make totally dust tight Roller Magnetic Separator available in one to eight stage roller magnetic separator in various size. Which is manufactured and assembled under strict quality control and specification to Generate unsurpassed Magnetic Field Gradients. Under this High Intensity Magnetic Field, weekly Magnetic Contamination can be easily removed efficiently.

Specifications:

• With the help of bearings of drums and fastening ears, two U-section pieces are attached to the magnet
• Shafts are provided with drums and are mounted on removable hubs
• Bearings offered with stakes for tightening belt
• Belt is driven via reduction gear, which is combined with geared or electric motor with vee-belts
• Magnet is manufacturing utilizing high-intensity rare earth n-42 and n-45 grade magnets
• High magnetic power
• Non-magnetic stainless steel plate is offered to cover magnet poles
• No electrical supply is required
• Minimal maintenance

Used to:

• Eliminate tramp metal from the products carried via belt, vibratory feeders, and inclined planes
• Protect machines such as shredders, crushers and much more to remove ferrous particles and purify products

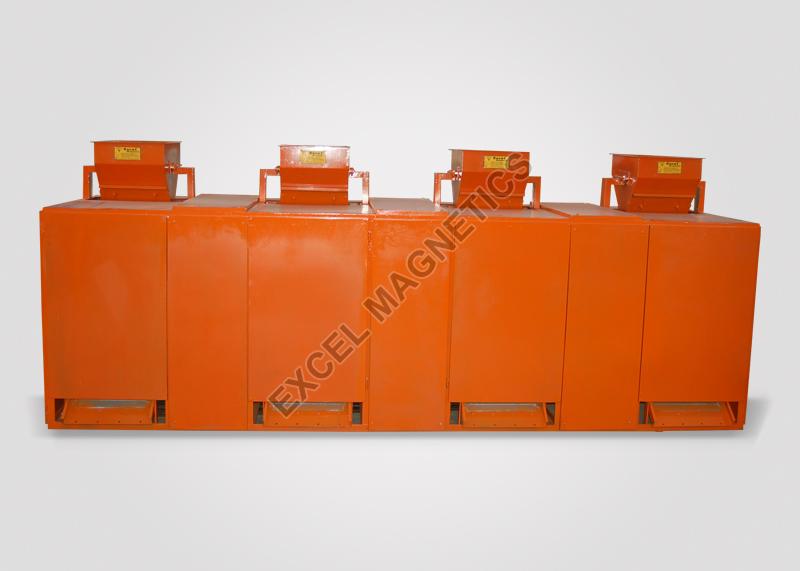

Triple & Multi Drum Type Magnetic Separators are available for highest purity. The Permanent Drum Separators are available in standard drum diameters of 300 mm to 1200mm width range from 300 mm to 2500 mm. Other sizes can be made as special to your requirement. The larger the diameter and width of the drum the greater is the volume of material which can be hand land. These are generally manufactured as custom made where the separation is required to the highest purity of material .The material to be made free of iron particles is passed over the first magnetic drum and again in continuos process fed to the second and similarly to the third. This process ensures the purity of the material of the highest order.
